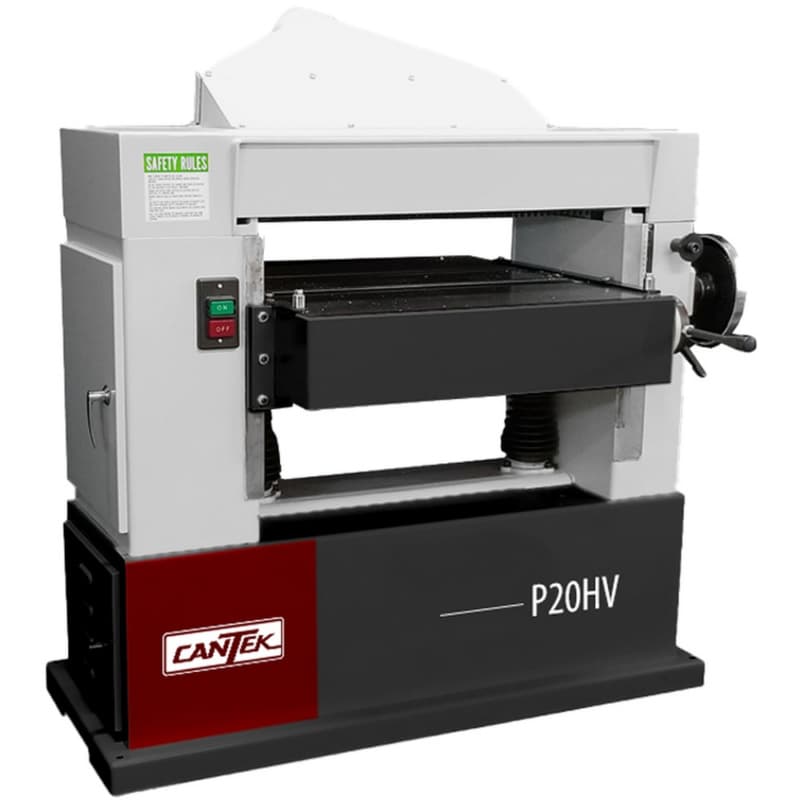

The Cantek P20HV 20" 1 Phase Surface Planer offers smooth, quiet performance with its spiral insert knife cutterhead and durable cast iron table. For both softwood and hardwood, it ensures high-quality finishes and reduced vibration thanks to its welded steel frame. Replaceable carbide inserts maintain a sharp edge for long-term use with minimal maintenance. Dual feed speeds provide flexibility for processing different materials efficiently. A dependable and cost-effective planer built to boost productivity in any woodworking shop.
Key Features & Benefits
Spiral Insert Knife Cutterhead for Long-Lasting Performance
- Replaceable carbide insert knives offer extended tool life, with each knife rotatable four times for fresh cutting edges
- Cutterhead: Spiral insert knife cutterhead with 132 carbide inserts (14mm x 14mm x 2mm)
- Smooth finish with quiet operation, reducing vibration during use
- Superior durability, providing high-quality cuts over long periods of use
Versatile Feed Speeds for Different Materials
- 2-feed speeds allow for flexibility, accommodating both light and heavy material planing
- Improves efficiency, ensuring optimal cutting for different types of materials
- Adjustable feed speed helps you achieve the best results, whether working with softwoods or dense materials
Durable Construction for Better Stability
- Cast iron table and head assembly combined with a welded steel frame ensures a sturdy setup for smooth planing
- Reduces vibrations for superior finish quality, minimizing the chances of defects
- Built to last, with components designed for maximum longevity under heavy use
Safe and Easy Operation
- Anti-kickback fingers provide added safety during operation, reducing the risk of accidents
- Side handwheel with linear scale offers precise table adjustments for accurate planing
- Polyurethane outfeed roll protects your material after it's been planed, ensuring no marks are left
Convenient Maintenance Features
- Flip-open top lid with limit switch allows for safe and easy knife changes
- Sectional chip breakers and serrated sectional infeed roll improve material handling, especially for uneven materials
- Easy knife replacements, saving you time and ensuring consistently sharp blades for cleaner cuts
- Weight: 1,144.000 lbs
- New/Used: New
- Working Width: 20
- Cutterblock Diameter: 39508
- Feed Speed: 20/30 FPM
- Cutting Head: Spiral
- Motor Power: 5
- Net Weight: 924 lbs.
- Dust Port: (1) 6
- Max. Planing Thickness: 39665
- Machine Dimensions: 44 x 30 x 45
- Shipping Dimensions: 50 x 31 x 47
- Min. Length: 8
- Electrical Requirement: 230/1/60 = 28 Amps, 230/3/60 = 15.2 Amps, 575/3/60 = 6.1 Amps
- Table Rise & Fall: Manual
- Phase: 1
- Type: Single Surface
