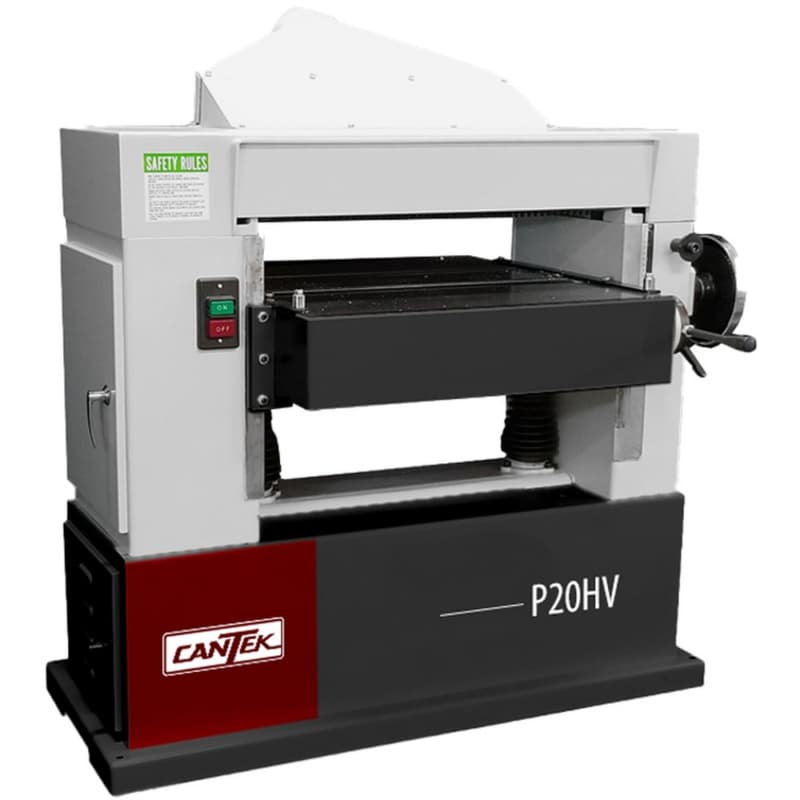

The Cantek P20HV 20" 3 phase Surface Planer is a compact yet powerful solution for high-quality planing. Built with a spiral insert knife cutterhead and replaceable carbide inserts, this planer ensures a smooth finish and long-lasting performance. Made with a cast iron table and welded steel frame, it minimizes vibration for a superior planing result. Whether you are working with tough materials or need precise cuts, the Cantek P20HV is made to deliver exceptional results in your workshop.
Key Features & Benefits
Spiral Insert Knife Cutterhead for Long-Lasting Performance
• Replaceable carbide inserts (132 inserts, 14mm x 14mm x 2mm) provide smooth cutting action and extend tool life
• Knives can be rotated four times, offering multiple cutting edges before needing replacement
• Quiet operation ensures minimal noise disruption during use, making it perfect for long working hours
Efficient Handling of Challenging Materials
• Sectional chip breakers improve the feed of material, ensuring smooth and consistent cuts
• Serrated sectional infeed roll adapts to irregular materials, providing even pressure for smooth feeding
• Anti-kickback fingers enhance safety by preventing material from pushing back toward the operator
Convenient Adjustments for Precise Planing
• 2-feed speeds offer flexibility in handling different materials, whether for fast or fine cuts
• Double bed rolls, adjustable from the front of the machine, assist in feeding difficult materials
• Side handwheel with linear scale allows for easy, accurate height adjustments to the table
Durability and Safe Operation
• Polyurethane outfeed roll prevents any marking on materials after planing, ensuring high-quality results
• Flip-open top lid with limit switch provides easy access to change the insert knives safely
• Heavy-duty 3-phase motor ensures powerful and consistent performance in demanding environments
- Weight: 1,144.000 lbs
- New/Used: New
- Working Width: 20
- Cutterblock Diameter: 39508
- Feed Speed: 20/30 FPM
- Cutting Head: Spiral
- Motor Power: 5
- Net Weight: 924 lbs.
- Dust Port: (1) 6
- Max. Planing Thickness: 39665
- Machine Dimensions: 44 x 30 x 45
- Shipping Dimensions: 50 x 31 x 47
- Min. Length: 8
- Electrical Requirement: 230/1/60 = 28 amps, 230/3/60 = 15.2 amps, 575/3/60 = 6.1 amps
- Table Rise & Fall: Manual
- Phase: 3
- Type: Single Surface
