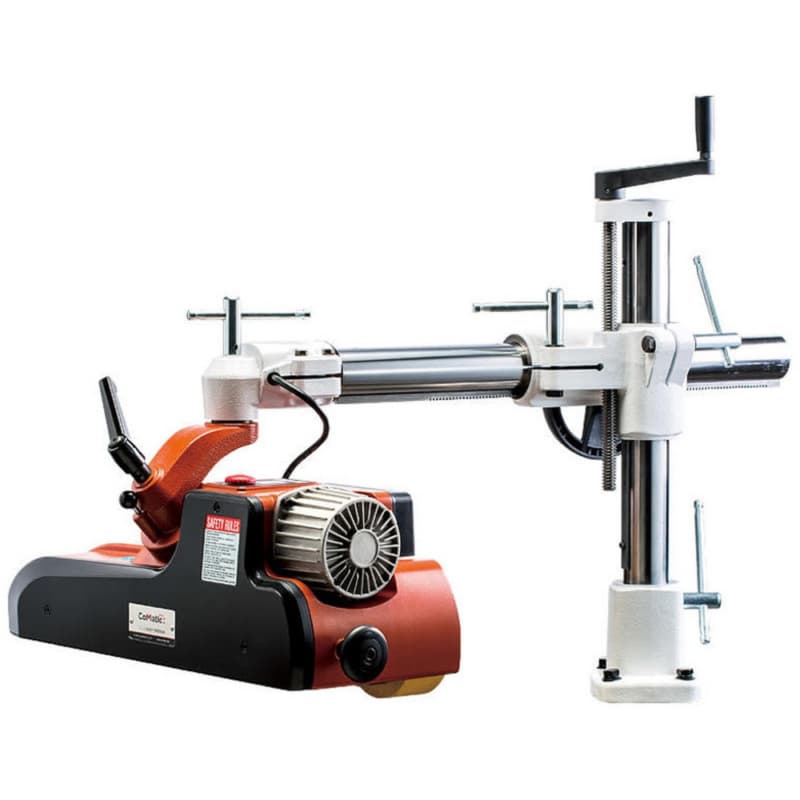

The Comatic DC40 Easy Feeder is engineered for powerful, efficient feeding across a wide range of woodworking applications. Driven by a DC brushless servo motor, it offers high torque with dramatically reduced energy use. The compact, versatile design includes adjustable stands, modular rollers, and digital speed controls to fit diverse shop needs.
Key Features & Benefits
Efficient Motor with Reduced Power Consumption
- Provides 2/3 HP output with a 500 W motor for energy savings up to 70%
- Delivers the equivalent torque of a 1 HP AC motor at lower operational costs
- Helps recover the feeder investment within the first year of use
Digital Speed Control for Smooth Adjustment
- Allows feed rate adjustment from 2 to 22 m/min without gear changes
- Digital interface makes tuning speeds simple for different materials
- Ensures predictable, consistent feeding throughout production
Versatile Roller System for Greater Flexibility
- Supplied with four rollers, upgradeable to eight detachable rollers
- Split roller option improves blade clearance for router or cutterhead setups
- Tool-free roller replacement speeds up machine setup and maintenance
Compact Smart Stand Mounting System
- Universal cast-iron stand provides up to 440mm shoulder reach and 250mm height adjustment
- Compatible with routers, shapers, jointers, and other machinery setups
- Offers stable and vibration-free operation for precision tasks
Quick Swivel Locking with Memo-Locking System
- Feeder swivels easily to 90deg and locks into position
- Memo-locking retains preferred feeding angles for faster adjustments
- Saves time and improves consistency between jobs
Safety Focused Detachable Rollers
- Inner roller detaches to prevent cutter damage during material feeding
- Outer roller detaches for extra clearance when working with complex router setups
- Protects both the cutting tool and the workpiece during feeding operations
Industrial 3 Phase Compatibility for Smooth Running
- Optimized for use with 230 V 3 phase industrial power supply
- Ensures smoother motor operation and longer equipment life
- Designed to integrate seamlessly with most commercial woodworking machines
Optional Upgrade for Enhanced Durability
- Compatible with the SS130 Smart Stand for superior stability and extended functionality
- Upgrading transforms the DC40 into the DS400 Smart Power Feeder
- Ideal for shops demanding higher adjustability and longer service life
- Gross Weight: 62 + 72 Lbs
- Net Weight: 57 + 66 Lbs
- Roller Diameter: (Standard) 120 x 60 mm x 4 pcs (4-3/4" x 2-3/8") (Optional) 120 x 25 mm x 8 pcs (4-3/4" x 1")
- Roller Suspension: 3/4"
- Voltage: 100-120V / 1 phase; 200-240V / 1 or 3 phase; 380-420V / 3 phase
- 20 ft Container Loading: 205 Sets
- Feed Speeds: 7-72 FPM
- HP: 2/3 HP
- Package Dimensions: Body: 685 x 326 x 316 mm (27" x 12-3/4" x 12-3/8"); Stand: 770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
