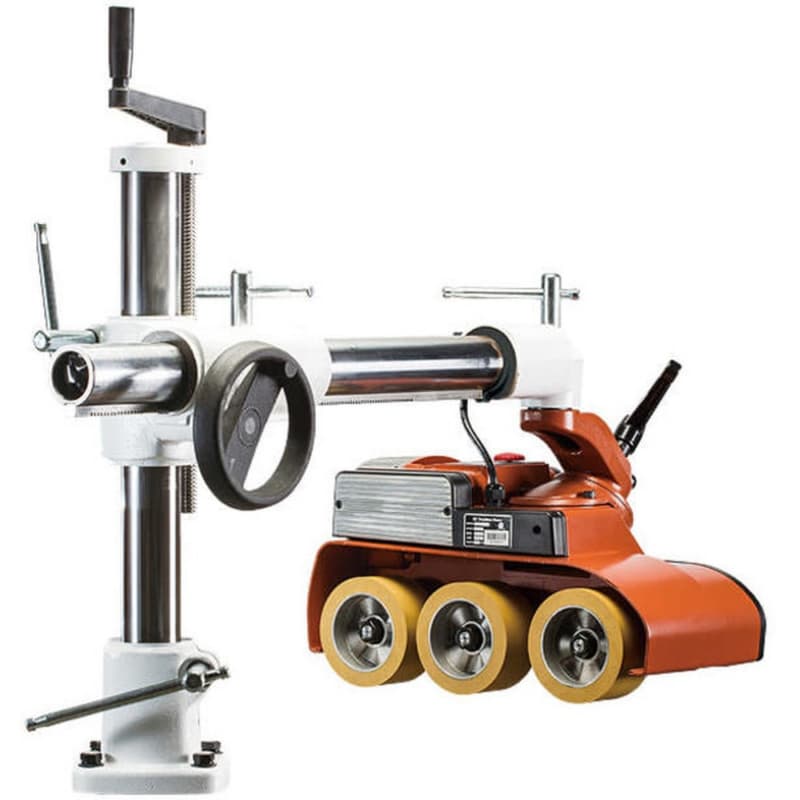

The Comatic DC30-1-220V Variable Speed Power Feeder 1 Phase combines advanced brushless servo technology with energy efficiency, delivering smooth and consistent material feeding. Featuring easy digital speed controls and a modular roller system, it is built for professional and industrial woodworking operations, while saving up to 70 percent in energy consumption.
Key Features & Benefits
DC Brushless Servo Motor for Steady Performance
• Advanced servo motor technology delivers consistent speed and high torque for superior feeding results
• Energy-saving design reduces consumption by up to 70 percent compared to traditional models
• Improves material handling precision with motor performance comparable to a 1 HP AC feeder
Energy-Efficient Green Technology
• Consumes just 500 W, offering significant energy savings without compromising output
• Eco-conscious design reduces long-term operational costs for professional shops
• Energy savings recoup the initial investment difference within one year of use
Variable Speed Adjustment for Greater Control
• Speed range from 2 to 22 m/min (7 to 72 FPM) easily adjustable through a digital control dial
• No gear replacement needed, enabling instant speed changes to match different projects
• Smooth and responsive speed control improves feed consistency across various materials
Versatile Feeding System for Improved Operation
• Inclined feed mechanism provides better clearance and ease of adjustment
• Detachable roller system helps protect cutter blades and improves machine accessibility
• Compatible with standard and split rollers, allowing customized setups for specific tasks
Enhanced Durability and Adjustability
• Heavy-duty cast-iron stand with adjustable height range between 250 mm and 440 mm for different machine setups
• 90-deg memo-locking swivel adjustment secures the feeder position perpendicular or parallel to the fence
• Optional SS130 Smart Stand upgrade available for increased stability and operational convenience
- Gross Weight: 55 + 72 Lbs
- Net Weight: 51 + 66 Lbs
- Roller Diameter: (Standard) 4-3/4" x 2-3/8" (120 x 60 mm) x 3 pcs (Optional) 4-3/4" x 1" (120 x 25 mm)x 6 pcs
- Roller Suspension: 3/4"
- Voltage: 100-120V / 1 phase200-240V / 1 or 3 phase380-420V / 3 phase
- 20 ft Container Loading: 224 Sets
- Feed Speeds: 7-72 FPM
- HP: 2/3 HP
- Package Dimensions: Body: 23" 12-3/4" 12" ( 585 mm x 326 mm x 306 mm ), Stand: 30-3/8" x 12-5/8" x 11-1/2" ( 770 mm x 320 mm x 290 mm )
