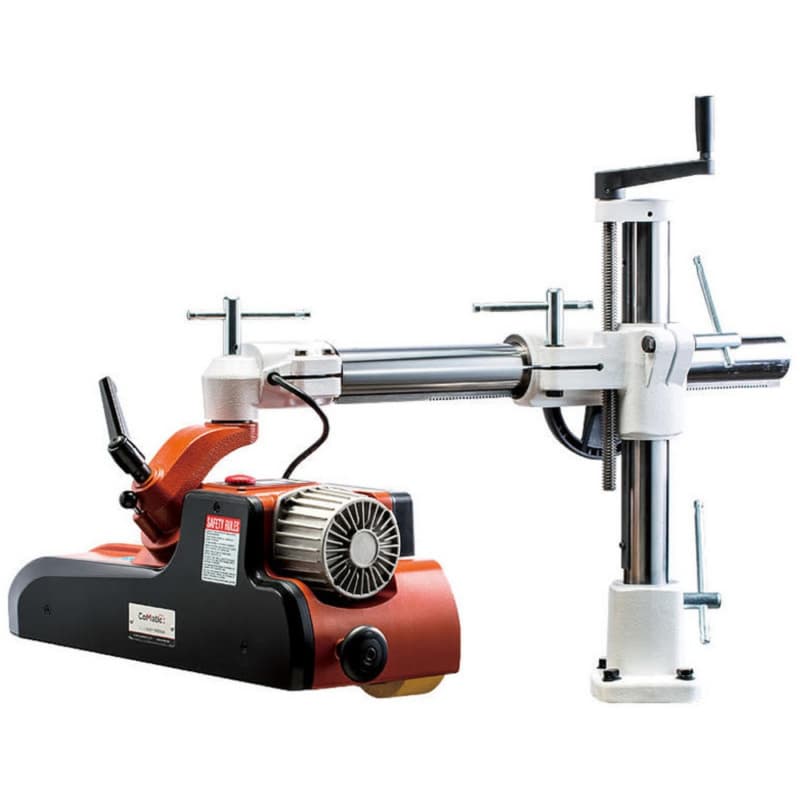

The Comatic DC40-1 Power Feeder is built for industrial-grade woodworking, delivering high torque with outstanding energy savings. Powered by a patented DC brushless servo motor, it matches the strength of a 1HP AC motor while reducing energy consumption by up to 70%. With digital speed control, modular roller options, and a robust stand, it offers versatility and precision for demanding operations.
Key Features & Benefits
Efficient Motor Reduces Energy Costs
• The DC brushless servo motor provides 2/3 HP output while consuming only 500W
• Delivers torque comparable to a 1 HP AC motor while reducing energy usage by up to 70%
• Energy savings help recover the investment within one year of operation
Precise Speed Control for Smooth Performance
• Digital controls allow feed speed adjustment from 2 to 22 m/min (7–72 FPM) without gear changes
• Maintains consistent speed across different loads for high-quality cuts
• Fine-tuning during production is quick and easy for maximum precision
Swivel Setup for Faster Adjustments
• Memo-locking swivel allows instant 90deg rotation to secure the feeder perpendicular or parallel
• Simplifies setup changes between machines and reduces overall adjustment time
• Ideal for complex routing, shaping, and high-mix production
Workpiece and Cutterhead Protection
• Detachable inner roller protects against blade damage during feeding operations
• Outer roller can be removed for extra router clearance when needed
• Tool-free roller replacement supports quick adjustments without delays
Universal Mounting for Greater Compatibility
• Heavy-duty cast-iron stand adjusts up to 250 mm in height and 440 mm in reach
• Easily mounts on a range of woodworking machines including shapers and routers
• Optional SS130 Smart Stand upgrade enhances flexibility and long-term durability
- Gross Weight: 62 + 72 Lbs
- Net Weight: 57 + 66 Lbs
- Roller Diameter: (Standard) 120 x 60 mm x 4 pcs (4-3/4" x 2-3/8") (Optional) 120 x 25 mm x 8 pcs (4-3/4" x 1")
- Roller Suspension: 3/4"
- Voltage: 100-120V / 1 phase200-240V / 1 or 3 phase380-420V / 3 phase
- 20 ft Container Loading: 205 Sets
- Feed Speeds: 7-72 FPM
- HP: 2/3 HP
- Package Dimensions: Body: 685 x 326 x 316 mm (27" 12-3/4" 12-3/8") Stand: 770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
