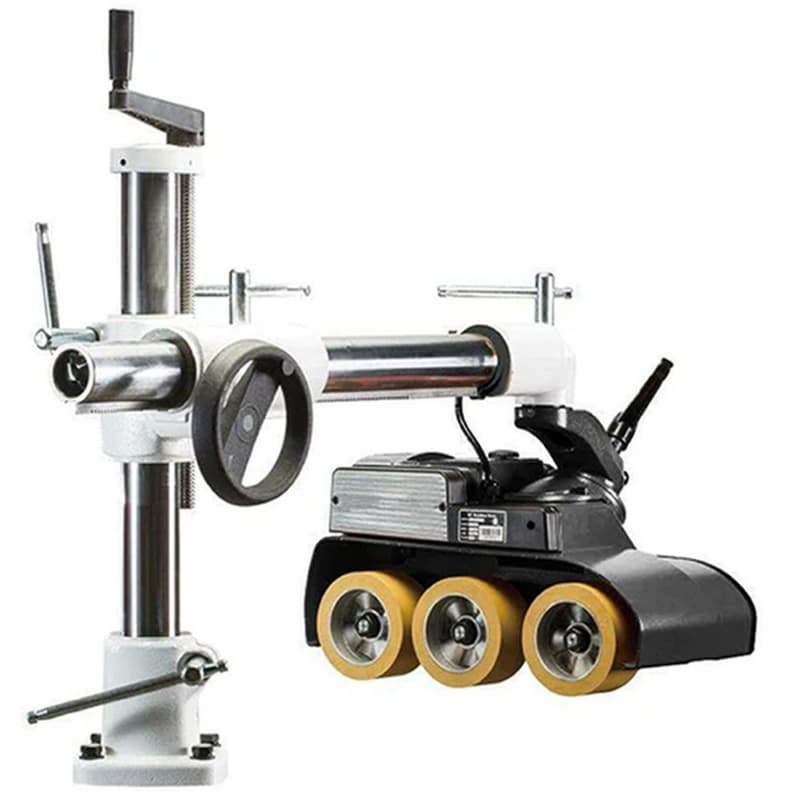

The Cantek DC30 (230V 3 Phase) Roll Variable Speed Power Feeder is engineered for precision and efficiency in high-demand woodworking setups. Its durable three-roll system and powerful 2/3 HP DC brushless servo motor ensure consistent, smooth material feeding across a range of applications including table saws and shapers. With electronic variable speed control and a versatile universal stand, this feeder gives operators complete flexibility and control. Ideal for enhancing both safety and cut quality, the DC30 is built for serious shops looking to step up production.
Key Features & Benefits
Powerful Brushless Servo Motor Delivers High Torque & Efficiency
• Equipped with a 2/3 HP DC brushless servo motor for reliable, high-torque performance
• Provides greater energy efficiency, saving over 50% power compared to other feeders
• Allows consistent feeding even under heavy loads for smoother finishes
Electronic Variable Speed Control for Precise Feed Rates
• Variable feed speed range of 2–22 M/min (7–72 FPM) suits diverse material and job types
• Includes digital speed display for accurate, on-the-fly adjustments
• Offers both forward and reverse feed directions to adapt to the workflow
Three Durable Rubber Rollers for Superior Grip & Finish
• Three rubber feed rollers provide excellent material control and grip
• Consistently delivers flawless results with minimal slippage
• Designed for long-term durability and easy replacement
Universal Stand Enables Quick Adjustments & Versatility
• Comes with the SG13 heavy-duty universal stand for stability and quick setup
• Easily adjusts from horizontal to vertical positions to match machine orientation
• Saves setup time with fast, tool-free positioning changes
3-Phase Power for Industrial-Grade Applications
• Powered by 230 V, 3-phase for robust, reliable operation in demanding environments
• Ideal for integration with high-performance industrial woodworking equipment
• Delivers uninterrupted power and longer duty cycles for extended use
- Machine Weight: 117 lbs
- No. Of Rollers: 3
- Packing Size: Body: 23" x 12-3/4" x 12"
- Packing Size: Stand: 30-3/8" x 12-5/8" x 11-1/2"
- Phase: 3
- Roller Diameter: 4.72"
- Roller Width: 2.36"
- Shipping Weight: 127 lbs
- Feed Speeds: 7-72 FPM
