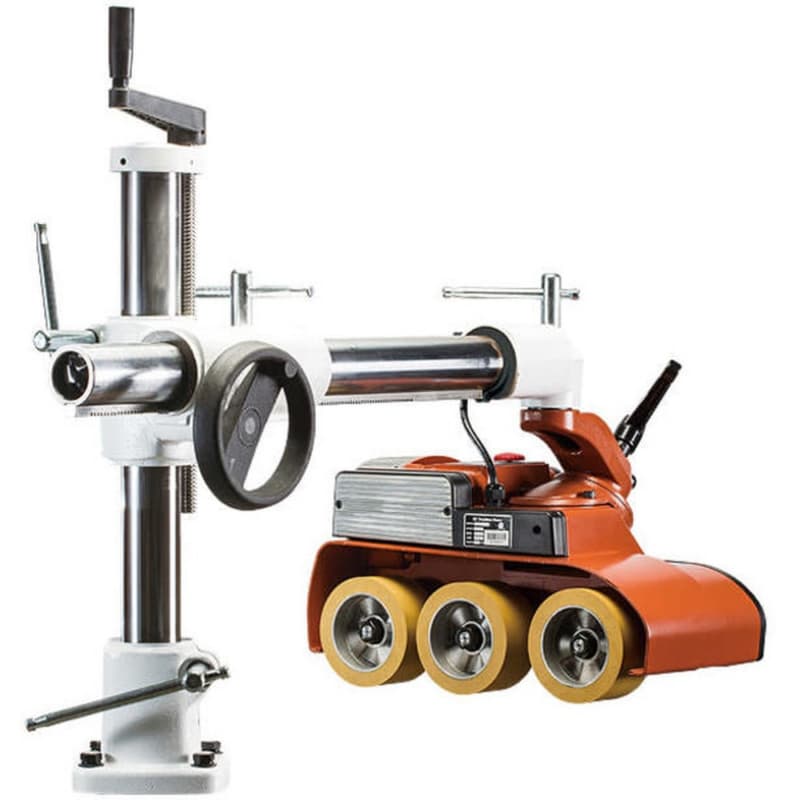

The Comatic DC30-3-220V Power Feeder delivers reliable feeding performance with a high-torque brushless DC servo motor and flexible speed control. Designed for industrial woodworking environments, it offers quiet operation, energy efficiency, and modular adaptability to handle high-volume production demands with ease.
Key Features & Benefits
Brushless DC Motor for Powerful and Quiet Operation
• 2/3 HP brushless servo motor delivers strong, steady torque comparable to a 1 HP AC motor
• Reduces noise while improving feed quality, ideal for high-precision applications
• Energy-efficient motor design saves up to 70 percent in operational costs
Energy Efficiency for Long-Term Savings
• Consumes only 500 W, providing energy savings of up to 50 percent compared to standard feeders
• Eco-friendly performance pays for itself within a year through reduced power expenses
• Supports sustainable woodworking practices without sacrificing productivity
Variable Speed Control for Maximum Adaptability
• Speed adjustable from 2 to 22 m/min (7 to 72 FPM) using a user-friendly digital dial
• Eliminates the need for gear changes, allowing fast adjustment for different materials and project types
• Compatible with 220 V 3-phase power, delivering stable and consistent performance
Inclined Feeding and Advanced Roller Adjustability
• Inclined feed mechanism with a visual indicator ensures improved material surface finish
• Detachable inner and outer rollers prevent cutterhead damage and provide clearance for routers
• Easily switch between standard and split rollers to match project requirements
Heavy-Duty Stand for Reliable Support
• Cast-iron universal stand offers height adjustment up to 250mm with shoulder reach up to 440mm
• Secure memo-locking swivel allows fast 90deg adjustments without repositioning clamps
• Ideal for frequent workflow transitions in busy shops
Modular Roller System for Custom Configuration
• Comes standard with three rollers and upgradeable to six for added flexibility
• Tool-free roller swaps streamline maintenance and setup changes
• Split wheel capability improves performance in specialized routing applications
- Gross Weight: 55 + 72 Lbs
- Net Weight: 51 + 66 Lbs
- Roller Diameter: (Standard) 4-3/4" x 2-3/8" (120 x 60 mm) x 3 pcs (Optional) 4-3/4" x 1" (120 x 25 mm)x 6 pcs
- Roller Suspension: 3/4"
- Voltage: 100-120V / 1 phase200-240V / 1 or 3 phase380-420V / 3 phase
- 20 ft Container Loading: 224 Sets
- Feed Speeds: 7-72 FPM
- HP: 2/3 HP
- Package Dimensions: Body: 23" 12-3/4" 12" ( 585 mm x 326 mm x 306 mm ), Stand: 30-3/8" x 12-5/8" x 11-1/2" ( 770 mm x 320 mm x 290 mm )
