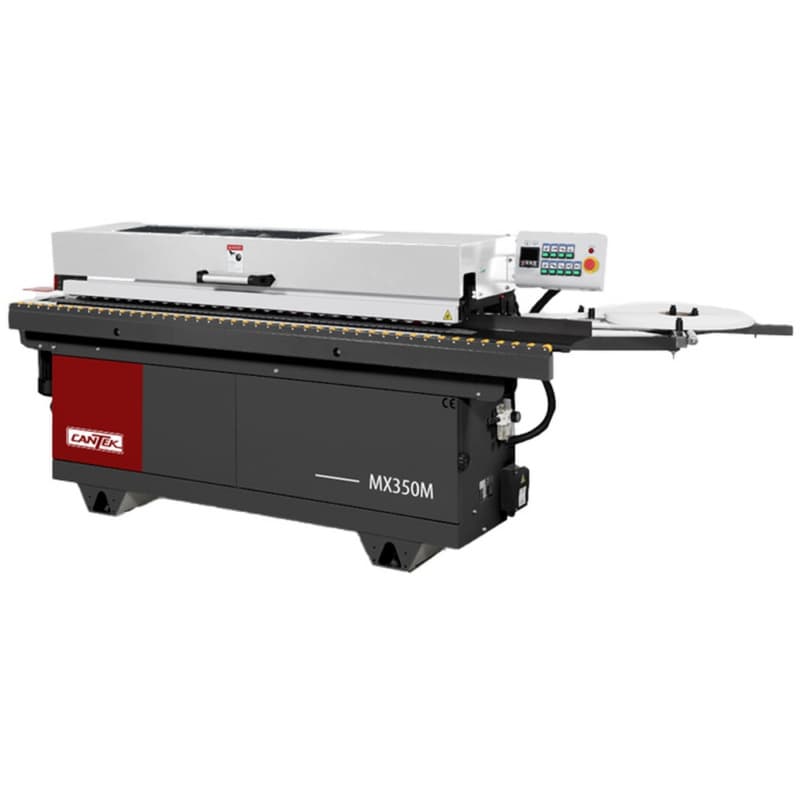

The Cantek MX350M Automatic Edgebander with Pre-Milling (1 Phase) offers reliable edge banding with exceptional finish quality, all in a compact, affordable package. Designed for small to mid-sized cabinet shops, it delivers professional-grade results thanks to its precision diamond pre-milling cutters and full trimming stations. Efficient control systems and simple adjustments make it easy to change tape thicknesses between 0.4 mm and 3 mm.
Key Features & Benefits
Pre-Milling Delivers Cleaner, Invisible Glue Lines
- Diamond cutterheads prep panel edges just before glue application
- Removes imperfections for a smoother bonding surface
- Enhances overall finish by reducing glue line visibility
Full Trimming Station Ensures a Professional Finish
- End trimming saws operate at 8800 RPM for fast, clean cuts
- Top and bottom trimmers use high-speed insert knives for radius and bevel trimming
- Buffing and radius scraping units polish and refine the finished edge
User-Friendly Design Makes Operation Simple
- Mechanical digital readouts make thickness changes fast and accurate
- Spring-loaded pressure rollers ensure even bonding along the edge
- LED keypad with PLC controls allows easy machine adjustments
Compact Size Ideal for Small Workshops Without Compromising Quality
- Heavy-duty pressure beam with extendable workpiece support
- Chain feed system guarantees stable and consistent panel movement
- Heated infeed fence improves glue penetration for durable adhesion
- Buffing Motor (3 Phase): 1/4 HP (0.18 kW x 2)
- Compressed Air Requirements: 8.83 CFM (250 liters/min)
- Edge Thickness: 0.0158"~0.118" (0.4 ~ 3 mm)
- Electrical Requirements: 230/1/60 = 35 Amps; 230/3/60 = 19 Amps
- End Trim Motor: 1/3 HP
- Feed Motor: 1 HP
- Feed Speed: 23 FPM (7 m/min.)
- Glue Pot: 1-3/4 HP
- Heated Infeed Fence: 1/2 HP
- Machine Weight: 1162 lbs (528 kg)
- Max. Machine Dimension: 126" x 47-1/4" x 47-1/4" (3200 x 1200 x 1200 mm)
- Min. Panel Length: 8-3/4" (220 mm)
- Min. Panel Width: 3.54" (90 mm)
- Panel Thickness: 0.472~1.77" (12~45 mm)
- Phase: 1
- Pre-Milling Motor: 2 HP
- Premilling Spindle Speed: 9000 RPM
- Shipping Weight: 1452 lbs (660 kg)
- Top & Bottom Trimmer: 10500 RPM
- Top & Bottom Trimming Motor: 3/4 HP
- Total Connected Power: 8 HP
- Working Table Height: 33.7" (856 mm)
