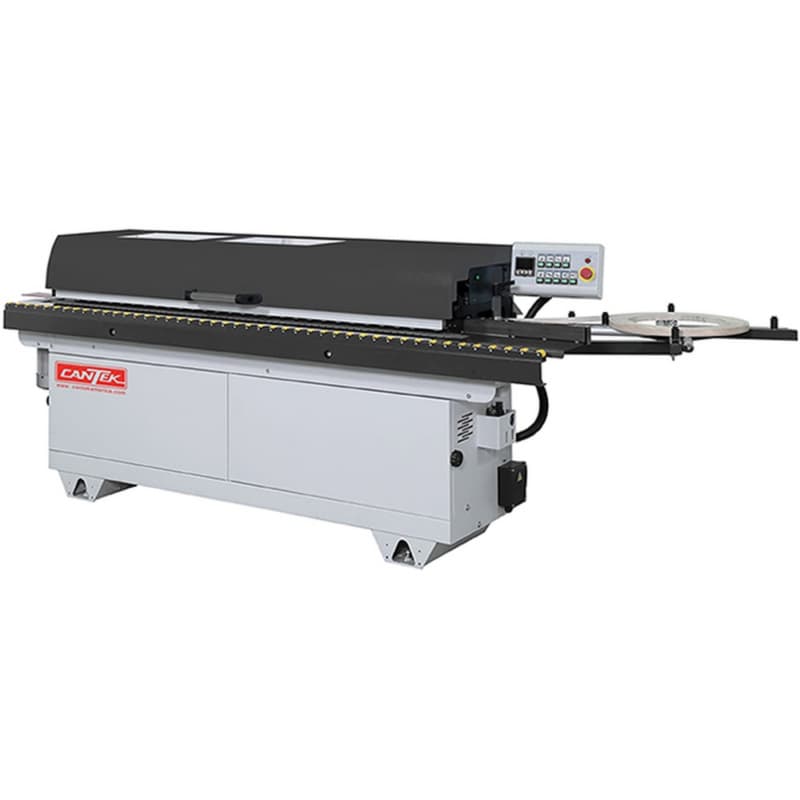

The Cantek MX350M-3PH Automatic Edgebander (3 Phase) combines professional edge banding with pre-milling performance in a compact, easy-to-use design. Ideal for small to mid-sized shops, it efficiently handles edge tapes from 0.4 mm to 3 mm. With diamond cutterheads for pre-milling, plus trimming, scraping, and buffing units, this machine ensures flawless edges every time. Its intuitive controls and mechanical digital readouts support quick, precise adjustments, making it a reliable, flexible solution for superior edge finishes.
Key Features & Benefits
User-Friendly Controls for Quick Adjustments
- PLC control system with LED display and keypad for simple operation
- Mechanical digital readouts for precise, fast thickness adjustments
- Tool-free access for easy setup and maintenance
Compact with Professional Performance
- Small footprint ideal for shops with limited space
- Chain feed system ensures smooth, consistent feeding of parts
- Heavy-duty pressure beam with extendable support handles larger panels
Full-Function Edgebanding in One Pass
- Includes end trimming, flush trimming, radius scraping, and buffing
- Top and bottom trimmers operate at 10,500 RPM for clean, sharp cuts
- Buffing units polish edges to a professional, smooth finish
- Weight: 1,455.000 lbs
- Buffing Motor (1 Phase): 0.16 HP
- Compressed Air Requirements: 8.83 CFM (250 liters/min)
- Edge Thickness: 0.0158"~0.118" (0.4 ~ 3 mm)
- Electrical Requirements: 230/1/60 = 35 Amps; 230/3/60 = 19 Amps
- End Trim Motor: 1/3 HP
- Feed Motor: 1 HP
- Feed Speed: 23 FPM (7 m/min.)
- Glue Pot: 1-3/4 HP
- Heated Infeed Fence: 1/2 HP
- Machine Weight: 1162 lbs (528 kg)
- Max. Machine Dimension: 126" x 47-1/4" x 47-1/4" (3200 x 1200 x 1200 mm)
- Min. Panel Length: 8 3/4" (220 mm)
- Min. Panel Width: 3.54" (90 mm)
- Panel Thickness: 0.472~1.77" (12~45 mm)
- Phase: 3
- Pre-Milling Motor: 2 HP
- Premilling Spindle Speed: 9000 RPM
- Shipping Weight: 1452 lbs (660 kg)
- Top & Bottom Trimmer: 10500 RPM
- Top & Bottom Trimming Motor: 3/4 HP
- Total Connected Power: 8 HP
- Working Table Height: 33.7" (856 mm)
