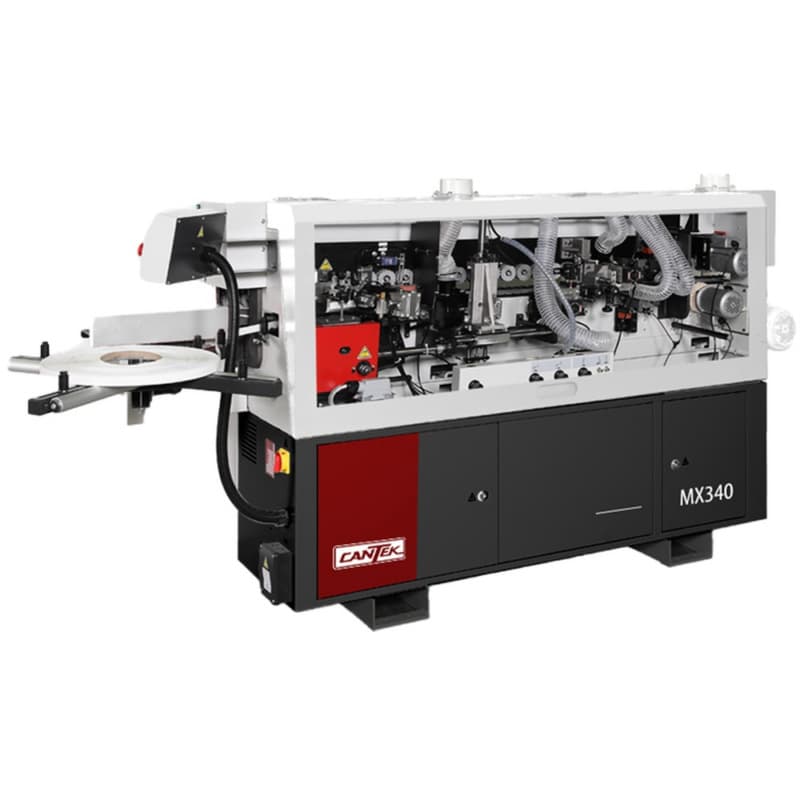

The Cantek MX340 (3PH) 3 Phase Automatic Edgebander delivers premium edge banding for cabinet parts and case goods in small to medium-sized workshops. Capable of applying edge tapes up to 3 mm thick, this versatile machine ensures precise results. Equipped with high-frequency motors for end trimming, top and bottom trimming, PVC radius scraping, and buffing, it provides a smooth, professional finish every time. Its quick-change glue pot and durable chain feed system make it efficient, reducing downtime and streamlining operations. The user-friendly PLC control system allows for fast, intuitive adjustments, boosting productivity and minimizing complexity.
Key Features & Benefits
Versatile Edge Banding for Multiple Applications
• Applies edge tape from 0.4 mm to 3 mm thick
• Supports various materials such as PVC and ABS
• Suitable for flush and radius trimming
Quick Change Glue Pot for Efficiency
• Teflon-coated glue pot for easy removal and color swaps
• Fast glue changes reduce downtime
• Improves workflow and operational speed
High-Frequency Motors for Precision
• 12,000 RPM motors ensure smooth, accurate end trimming
• Top and bottom trimmers feature insert knife cutters for precise radius trimming
• Consistent edge quality across all materials
Durable and Reliable Chain Feed System
• Conveyor chain feed ensures smooth, stable edge banding
• Prevents material misalignment for a flawless finish
• Continuous feed enhances productivity
User-Friendly PLC Control System
• LED display and keypad for intuitive operation
• Quick setup and easy adjustments for optimal productivity
• Reduces operational complexity
- Weight: 1,280.000 lbs
- Edge Thickness: 0.0158"~0.118" (0.4 ~ 3 mm)
- Electrical Requirements: 230/3/60: 30 Amps; 230/1/60: 37 Amps
- Feed Motor: 1 HP (0.75 (kW))
- Feed Speed: 29 FPM (9 meters/min.)
- Front/Rear Trimming Motor: 0.3 HP (0.22 (kW))
- Glue Pot: 1-3/4 HP (1.315 (kW))
- Glue Spindle Motor: 1/4 HP (0.18 (kW))
- Lower Buffing Motor: 0.16 HP (0.12 (kW))
- Lower Trimming Motor: 1/2 HP (0.37 (kW))
- Machine Weight: 1144 lbs (520 kg)
- Min. Panel Length: 6.7" (170 mm)
- Min. Panel Width: 4" (100 mm)
- Panel Thickness: 0.315"~1.77" (8~45 mm)
- Phase: 3
- Pre-Heating: 1/2 HP (0.4 (kW))
- Shipping Weight: 1294 lbs (588 kg)
- Total Connected Power: 7.4 HP (5.5 kW)
- Upper Buffing Motor: 0.16 HP (0.12 (kW))
- Upper Trimming Motor: ½ HP (0.37 (kW))
- Working Table Height: 33.5" (850 mm)
