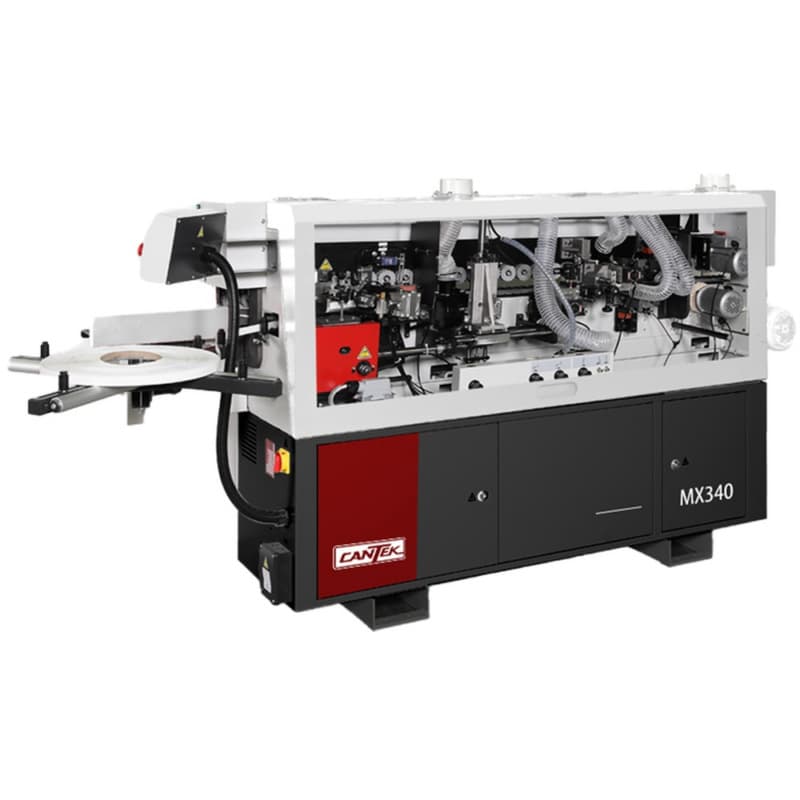

The Cantek MX340 1 Phase Automatic Edgebander delivers high-quality edge banding for cabinet parts and case goods. Ideal for small cabinet shops, this compact one-phase machine can apply edge tape from 0.4 mm to 3 mm thick, offering versatility and efficiency. Featuring high-frequency motors for trimming and radius scraping, along with buffing units for a polished finish, the MX340 is a cost-effective solution for shops that don't require pre-milling. Its quick-change glue pot and powerful feed system streamline production, ensuring precise, professional results.
Key Features & Benefits
Versatile Edge Banding
- Capable of applying edge tape from 0.4mm to 3mm thick
- Suitable for PVC, ABS, and other materials
- No pre-milling required, ideal for cabinet parts and case goods
Efficient Glue Pot System
- Quick-change Teflon-coated glue pot for easy color swaps
- Reduces downtime with fast glue pot exchanges
- Supports color variation for different edge banding needs
Precision Trimming for Smooth Edges
- High-frequency motors ensure clean, accurate trimming at 12,000 RPM
- Multi-function trimmers for flush and radius trimming
- Produces fine, uniform edges without manual intervention
Polished Finish with Scraping & Buffing
- Radius scraper removes knife marks for flawless curves
- Buffing units polish edges for a smooth, glossy finish
- Maintains edge quality and smoothness throughout production
Reliable Feed System for Stability
- Conveyor chain feed system for consistent, precise edge banding
- Automatic edge feeding eliminates manual handling
- Provides stable material handling and improved reliability
- Weight: 1,280.000 lbs
- Edge Thickness: 0.0158"~0.118" (0.4 ~ 3 mm)
- Electrical Requirements: 230/3/60: 30 Amps; 230/1/60: 37 Amps
- Feed Motor: 1 HP (0.75 (kW))
- Feed Speed: 29 FPM (9 meters/min.)
- Front/Rear Trimming Motor: 0.3 HP (0.22 (kW))
- Glue Pot: 1-3/4 HP (1.315 (kW))
- Glue Spindle Motor: 1/4 HP (0.18 (kW))
- Lower Buffing Motor: 0.16 HP (0.12 (kW))
- Lower Trimming Motor: 1/2 HP (0.37 (kW))
- Machine Weight: 1144 lbs (520 kg)
- Min. Panel Length: 6.7" (170 mm)
- Min. Panel Width: 4" (100 mm)
- Panel Thickness: 0.315"~1.77" (8~45 mm)
- Phase: 1
- Pre-Heating: 1/2 HP (0.4 (kW))
- Shipping Weight: 1294 lbs (588 kg)
- Total Connected Power: 7.4 HP (5.5 kW)
- Upper Buffing Motor: 0.16 HP (0.12 (kW))
- Upper Trimming Motor: 1/2 HP (0.37 (kW))
- Working Table Height: 33.5" (850 mm)
