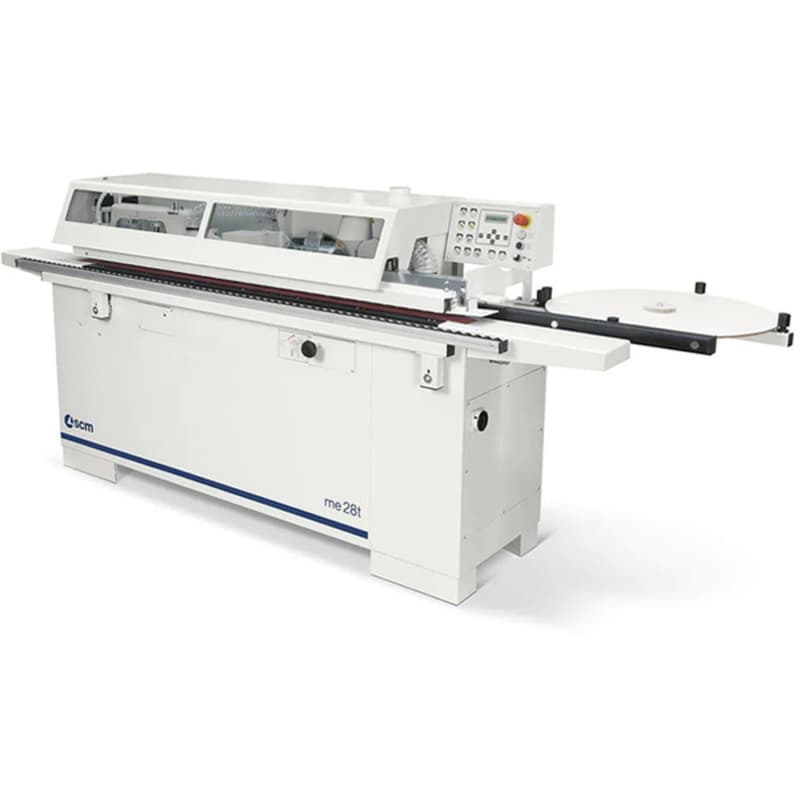

The SCM ME 28ET - 1PH Edgebander is a compact yet powerful entry-level machine, perfect for professional craftsmen and small joinery shops. It combines pre-milling precision, efficient glue application, and flexible edge banding capabilities in a single-phase design. Designed for high-quality finishing, the machine supports melamine, PVC, ABS, and wood strips with consistent edge results.
Key Features & Benefits
Pre-Milling Unit for Flawless Surface Prep
• Removes panel imperfections from saw cuts or storage with precision before gluing
• Features four selectable depth options: 0.5, 1, 1.5, and 2 mm for versatile correction
• Independent exhaust system cleans the surface thoroughly, eliminating chips and dust
Consistent Feed for Smooth Panel Finishes
• An exclusive panel conveying track eliminates vibration and feed pulses common in traditional pinion systems
• Ensures smooth, linear movement throughout the banding process
• Results in superior surface quality on every panel edge
Precision Cutting with Independent Cutter Unit
• Uses a dedicated asynchronous motor to drive the cutter independently for accurate results
• Maintains high-precision cuts, even on varied materials and thicknesses
• Enhances edge bonding by preparing clean and square panel edges
User-Friendly Controls for Error-Free Operation
• Front-mounted control panel makes operation simple and accessible
• Easily manage all functions including activation of operating units
• PLC system guides you through maintenance, diagnostics, and cleaning, reducing downtime
- Weight: 1,314.000 lbs
- Edge Thickness: 0.4 - 3 mm
- Feed Speed: 7 m/min
- Max. Thickness Of Edges In Strips: 5 mm
- Min/Max. Panel Height: 12 ÷ 50 mm
- Min. Panel Length/Width: 190/110 mm
- Phase: 1
- Work Table Dimensions: 2800 x 570 mm
