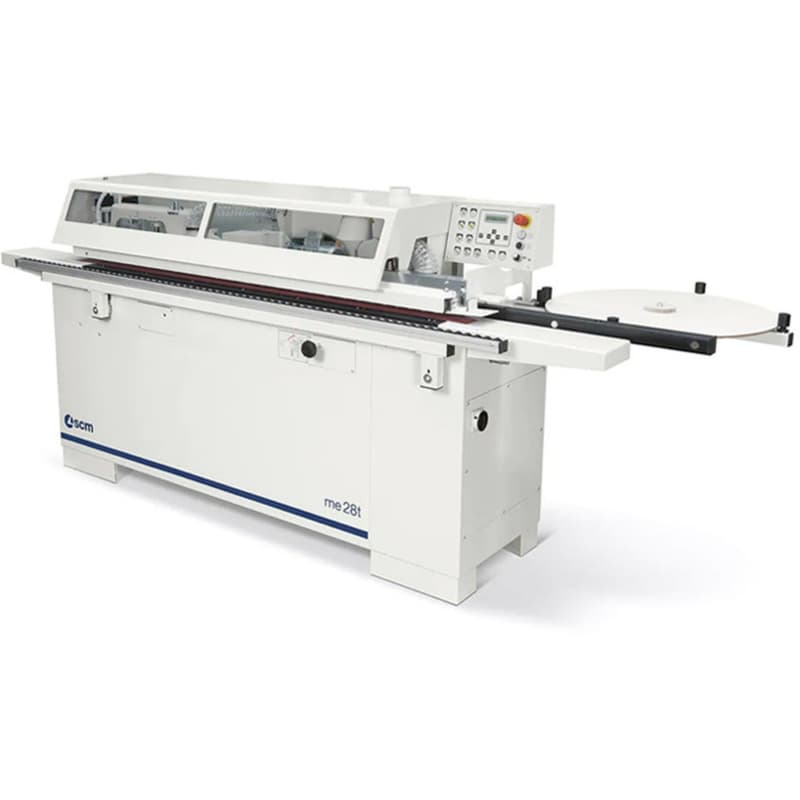

The SCM ME 28ET - 3ph Edgebander is an entry-level automatic edgebander equipped with a glue pot and pre-milling unit for exceptional edge quality. Engineered for flexibility and precision, it supports melamine, PVC, ABS (up to 3 mm), and wooden strips (up to 5 mm). Ideal for professional workshops, this three-phase model ensures smooth operation, precise cuts, and consistently clean finishes even on panels with surface imperfections.
Key Features & Benefits
Pre-Milling Unit for Flawless Panel Prep
• Removes imperfections from panel edges before gluing for stronger adhesion
• Corrects defects from saw cuts and storage damage
• Offers four removal thickness options: 0.5 / 1 / 1.5 / 2 mm
Exclusive Track System for Smooth Panel Feed
• Ensures consistent feed motion with SCM’s unique conveyor system
• Eliminates jerks caused by traditional pinion systems
• Guarantees a linear finish, especially critical for long panels
Precision Cutting with Asynchronous Motor
• Achieves clean, accurate cuts using an independent cutter
• Asynchronous motor delivers consistent performance without vibration
• Supports a wide range of edge materials without compromising quality
Simple, User-Friendly Operation
• Control panel is front-facing for quick and easy access to all functions
• Enables straightforward switching of operating units
• PLC provides guided support for maintenance and troubleshooting
Dust-Free Results with Integrated Extraction
• Built-in exhaust system clears chips and dust from the panel surface
• Helps maintain cleanliness and reduces rework
• Improves overall finish by preventing buildup during operation
- Edge Thickness: 0.4 - 3 mm
- Feed Speed: 7 m/min
- Max. Thickness Of Edges In Strips: 5 mm
- Min/Max. Panel Height: 12 ÷ 50 mm
- Min. Panel Length/Width: 190/110 mm
- Phase: 3
- Work Table Dimensions: 2800 x 570 mm
