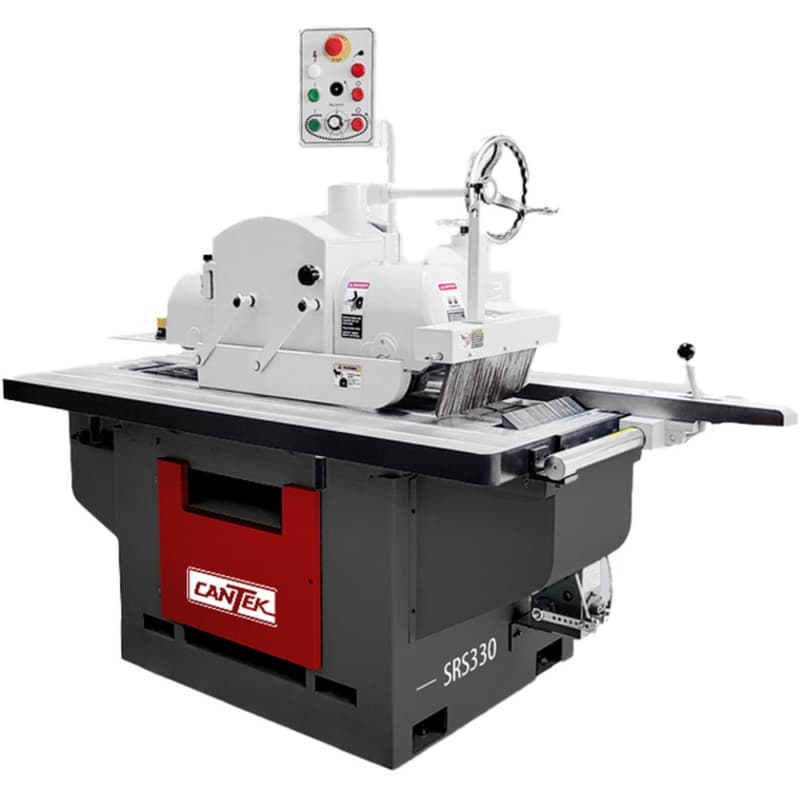

The Cantek SRS-330 is a high-precision straight line rip saw engineered for woodworking shops that demand efficiency, accuracy, and durability in their solid wood processing operations. Featuring a precision cast iron chain and track assembly, the SRS-330 guarantees absolute straight-line feeding with a glue joint finish up to 13 feeteliminating the need for additional jointing. Built for speed, power, and ease of use, this machine is an essential addition to panel processing and millwork operations.
Key Features & Benefits:
Guaranteed Glue Joint Finish
- Achieves a glue joint finish up to 13', eliminating post-rip jointing
- Enhances panel glue-up efficiency for seamless processing
Precision Straight-Line Ripping
- FC35 cast iron chain track with a double-V design ensures ultra-precise rip cuts
- Eight hold-down rollers over six rows maintain a firm grip for accurate cutting
Heavy-Duty Construction for Long-Term Durability
- Cast iron saw assembly, column, and table minimize vibration for superior cutting accuracy
- Rigid welded steel frame enhances longevity and machine durability
Advanced Saw Arbor Technology
- Nickel-chrome steel saw arbor with a large diameter for high precision cutting
- Runs on precision angular contact ball bearings, eliminating radial run-out and axial thrust
Reliable, Low-Maintenance Operation
- Automatic mechanical chain oiler lubricates the track based on feed speed, preventing wear
- Low oil warning system stops the machine when lubrication is insufficient, ensuring track protection
User-Friendly Adjustments & Safety Enhancements
- Large-diameter round guide rail with quick-locking lever for easy rip fence adjustments
- Three sets of anti-kickback fingers enhance operator safety during cutting operations
Optimised Power & Yield
- Soft-start Star Delta starter reduces amp draw on startup for improved efficiency
- Optional laser light projects the cutting line for maximum material yield
- Dust Port Size: 4"
- Max. Workpiece Thickness: 10" Blade: 2.36"
- Max. Workpiece Thickness: 12" Blade: 3.35"
- Max. Workpiece Thickness: 13" Blade: 3.94"
- Max. Workpiece Thickness: 14" Blade: 4.33"
- Table Size: 33.6" X 64.6"
- Useable Chain Length: 47"
- Arbor Motor: 20 hp
- Distance Between Saw And Column: 18.1"
- Electrical Requirements: 230/3/60 = 60.8 Full Load Amps, 460/3/60 = 30.4 Full Load Amps
- Feed Motor: 2 hp
- Feed Speed: 33-130 FPM
- Glue Line Guarantee: 13' (+/- 0.0098")
- Machine Dimensions: 78 -3/4" x 44" x 64"
- Max. Workpiece Thickness: 2.36" - 4.33"
- Min. Workpiece Length: 8"
- Saw Arbor Diameter: 1"
- Saw Arbor Speed: 4300 RPM
- Shipping Dimensions: 76 -3/4" x 53" x 67 -3/4"
- Shipping Weight: 3630 lbs
- Table Height: 31-7/8"
