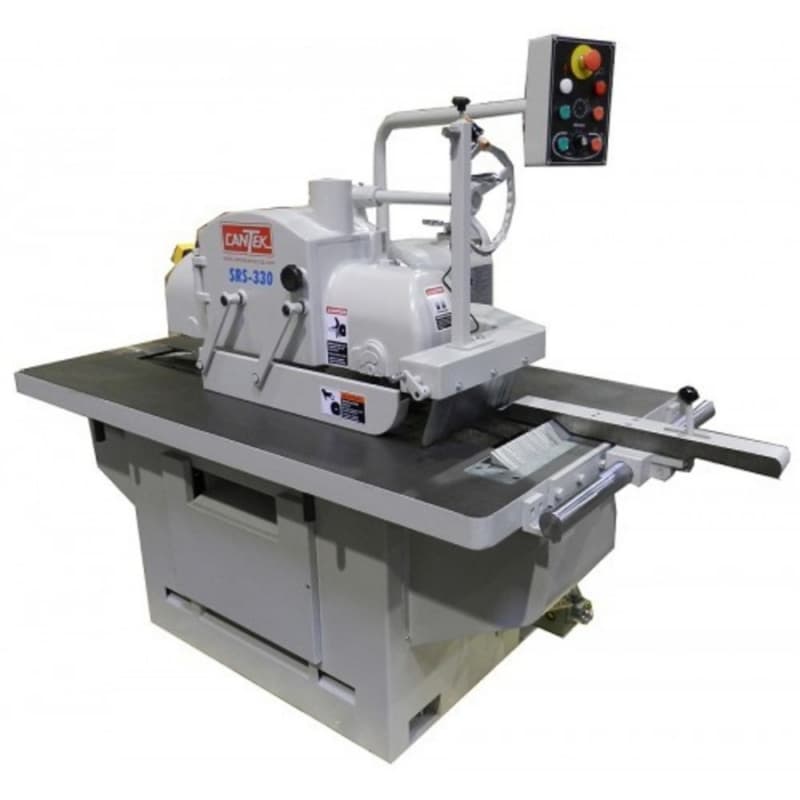

The Cantek SRS-330 Straight Line Rip Saw Powered Up and Down is engineered for high-performance ripping, making it an essential tool for solid wood processing and panel processing. Designed to maximise accuracy and efficiency, this rip saw delivers straight-line feeding for stock or panels up to 13 feet, eliminating the need for post-rip jointing. Its powered hold-down system, anti-kickback safety features, and centralized lubrication system further enhance reliability, making it the go-to choice for workshops looking to optimize their ripping processes.
Key Features & Benefits
Powerful & Efficient Cutting Performance
• 20 HP arbor motor delivers high power for demanding rip applications
• Straight-line feeding system ensures parallel, accurate rip cutsno post-jointing required
• Variable feed speed via frequency inverter for optimised cutting results
Precision & Long-Term Durability
• Cast iron saw assembly, column, and table minimise vibration for high precision
• FC35 cast iron chain track with double-V design ensures precise cuts and extended wear life
• Nickel-chrome steel saw arbor, dynamically balanced for smooth operation
Advanced Hold-Down & Safety Features
• Eight hold-down rollers over six rows provide firm material grip for straighter cuts
• Anti-kickback fingers enhance operator safety by preventing material kickback
• Swing-down rear table prevents chain damage, extending machine lifespan
Low Maintenance & Smart Lubrication System
• Automatic centralised lubrication extends the chain track’s life with continuous oiling
• Oil level sensor with auto-shutoff protects the system when lubrication is low
• Mechanical chain oiler adjusts to feed speed for optimised lubrication
User-Friendly & Adjustable Design
• Mounted control panel for quick and easy cutting adjustments
• Cast iron rip fence with quick-locking lever ensures effortless and precise positioning
• Optional laser light projection for maximising material yield and precision alignment
- Dust Port Size: 4"
- Max. Workpiece Thickness: 10" Blade: 2.36"
- Max. Workpiece Thickness: 12" Blade: 3.35"
- Max. Workpiece Thickness: 13" Blade: 3.94"
- Max. Workpiece Thickness: 14" Blade: 4.33"
- Table Size: 33.6" X 64.6"
- Useable Chain Length: 47"
- Arbor Motor: 20 hp
- Distance Between Saw And Column: 18.1"
- Electrical Requirements: 230/3/60 = 60.8 Full Load Amps, 460/3/60 = 30.4 Full Load Amps
- Feed Motor: 2 hp
- Feed Speed: 33-130 FPM
- Glue Line Guarantee: 13′ (+/- 0.0098")
- Machine Dimensions: 78 -3/4" x 44" x 64"
- Max. Workpiece Thickness: 2.36" - 4.33"
- Min. Workpiece Length: 8"
- Saw Arbor Diameter: 1"
- Saw Arbor Speed: 4300 RPM
- Shipping Dimensions: 76 -3/4" x 53" x 67 -3/4"
- Shipping Weight: 3630 lbs
- Table Height: 31-7/8"
