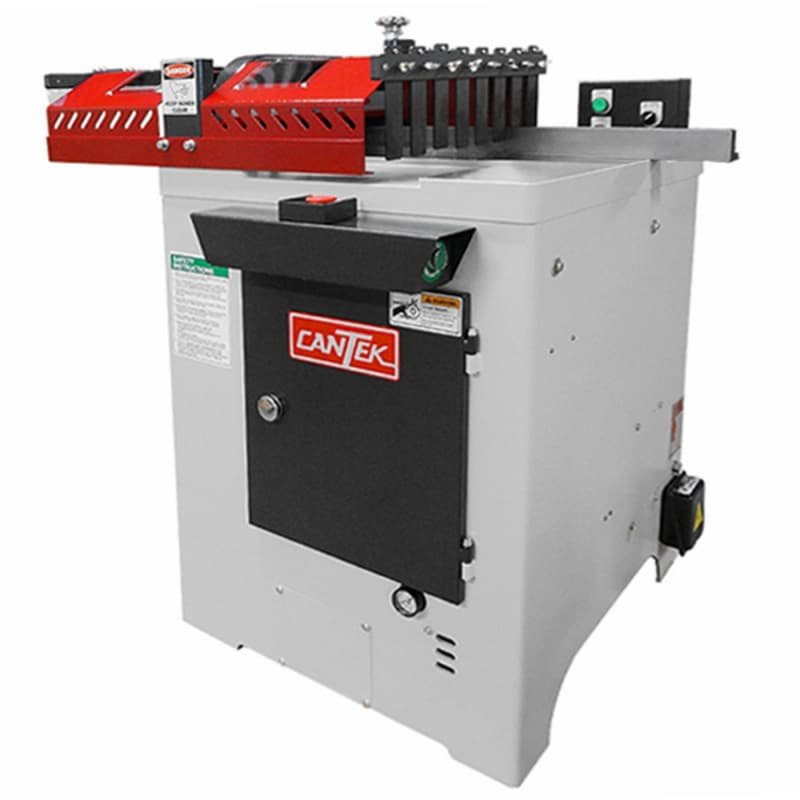

The Cantek PCS-24L Right Hand Cut-Off Saw is a powerful and efficient crosscutting solution designed for high-production environments. Featuring a robust 15HP motor and an adjustable cutting stroke, this saw delivers precise, high-speed cuts across a variety of materials. Engineered for both performance and safety, it includes a range of protective features such as infeed/outfeed safety guards and access door microswitches. Whether cutting large stock or smaller dimensions, the PCS-24L ensures reliable and consistent results
in demanding woodworking operations.
Key Features & Benefits
Optimized Cutting Capacity for Versatile Applications
• Accommodates a range of cutting dimensions from 2" x 21" to 7" x 8".
• Adjustable cutting stroke optimizes speed and cut quality.
• Delivers reliable performance across different materials and thicknesses.
Unmatched Cutting Speed and Motor Power
• Powerful 15HP main motor ensures effortless cutting through dense materials.
• Pneumatic foot pedal operation with front-mounted adjustable cutting speed for convenience.
• Fast cutting cycle of up to 40 strokes per minute maximizes efficiency.
Precision and Stability for High-Volume Production
• Precision-ground cast iron table surface provides stability and accuracy.
• Easily adjustable material clamp accommodates variations in workpiece thickness.
• CSA/UL magnetic switch ensures safe and reliable operation.
Comprehensive Safety Features for Operator Confidence
• Equipped with infeed/outfeed safety guards for added security.
• Microswitches on all access doors prevent unintended operation.
• Security bolt on the saw access door enhances overall safety.
- Air Consumption: 27.5 CFM
- Air Requirements: 27.5 CFM
- Arbor Diameter: 1"
- Blade Size: 24"
- Blade Speed: 2400 RPM
- Cutting Capacity: 2" x 21", 4" x 19", 6" x 15", 7" x 8"
- Cycle Operation: Air / mechanical
- Cycle Speed: 40 Strokes/min
- Electrical Requirements: 460/3/60 = 21 Amps
- Gross Weight: 1433 lbs
- Net Weight: 1058 lbs
- Saw Arbor Diameter: 1"
- Saw Blade Speed: 2400 RPM
