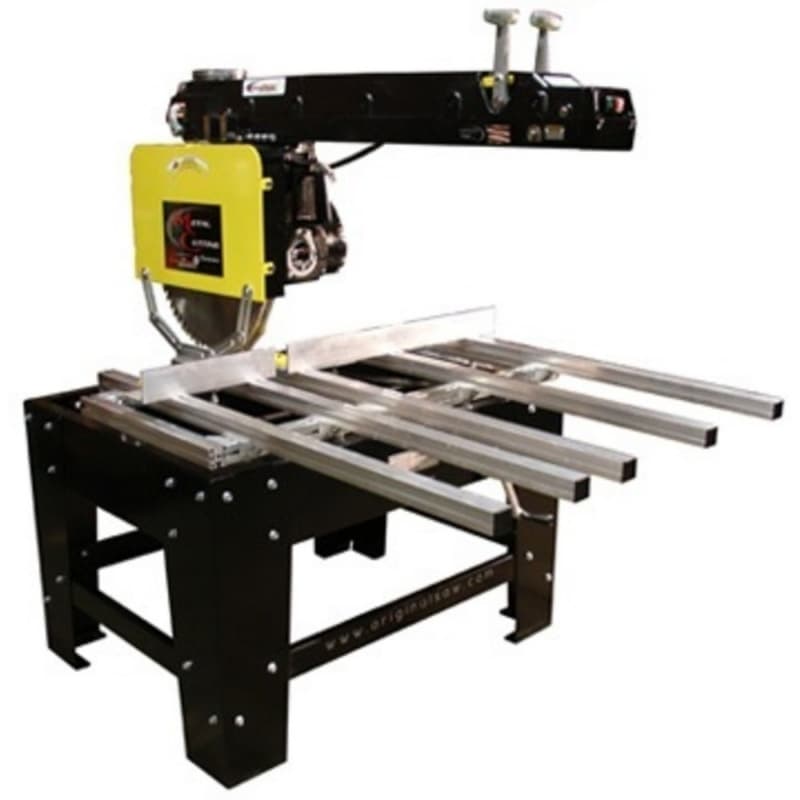

Original Saw's 3579-22L Super Duty Radial Arm Saw is designed for non-stop, heavy-duty cutting in demanding industrial environments. With an 8" depth of cut and a 25-3/4" crosscut capacity, this saw handles large profiles and dense materials with ease. Powered by a 7.5 HP TEFC motor and built from cast and ductile iron, it ensures precision, longevity, and safe operation shift after shift. Proudly made in the USA, it's the reliable backbone for metalworking facilities that demand power, accuracy, and long-term performance.
Key Features & Benefits
Engineered to Withstand Demanding Industrial Workloads
• Built with cast and ductile iron, reducing vibration and improving cutting precision.
• Heavy-gauge powder-coated frame stands up to daily use in fabrication shops.
• At 900 pounds, this saw offers the stability needed for consistent high-volume production.
Cut Deeper, Wider, and Smarter
• Handles 8" deep cuts in a single passideal for extrusions and heavy stock.
• Choose from 17-3/4" or 25-3/4" crosscut capacity for flexibility across material sizes.
• Supports crosscuts, bevels, miters, and compound miter cuts with clean accuracy.
Power That Delivers Control and Longevity
• Equipped with a 7.5 HP TEFC motor to handle metal dust, debris, and long shifts.
• Runs on 208V, 230V, 460V, or 575V 3-phase power, suiting most industrial setups.
• VFD (Variable Frequency Drive) ensures smooth starts, protects components, and improves safety.
Safety Features That Prioritize Operator Protection
• E-Stop button immediately halts the machine in emergency situations.
• Complete upper and lower blade guards reduce risk without blocking visibility.
• Automatic blade brake stops the blade swiftly for added peace of mind.
Adjustable Cutting for Precision and Productivity
• Front-mounted lower elevation crank allows fast, ergonomic height adjustments.
• Manual chain crank crossfeed offers smooth and controlled material handling.
• Adjustable crosscut stop helps ensure repeatable, consistent cuts.
Customize the Work Surface for Your Application
• Standard T-slot aluminum table supports heavy loads and provides clamp access.
• Upgrade to HDPE inserts for smoother handling of smaller materials.
• Enclosed bolt-on table guard improves dust control and enhances safety.
Clamping Options That Match Your Workflow
• Standard manual clamps securely hold materials via T-slot channels.
• Upgrade to two-front pneumatic clamps for repetitive high-volume cuts.
• For large or irregular stock, the four-point pneumatic system provides maximum stability.
Flexible Feed Systems to Suit Every Operation
• Manual hand crank gives you full control over cut speed and blade travel.
• Electronic powered crossfeed (upgrade) automates the cutting process and reduces fatigue.
• Ideal for shops needing repeatable accuracy and faster throughput.
- Capable of Rip Cuts: No
- Max Crosscut: 24" Wide
- Phases of Voltage Available: 3 Phase
- Voltage Options: 230, 460
- Arm: Long
- Brake: Automatic
- Pneumatic Clamping Ability: Yes (Add on)
- Powerfeed Option: Yes (Add On)
- Blade Size: 22" / 550 mm
- Hertz: 50/60
- Max Depth Cut: 8" Deep
- Motor: 7.5 HP
- Shipping Dimensions: 72" x 52" x 48"
- Shipping Weight: 1000 lbs
