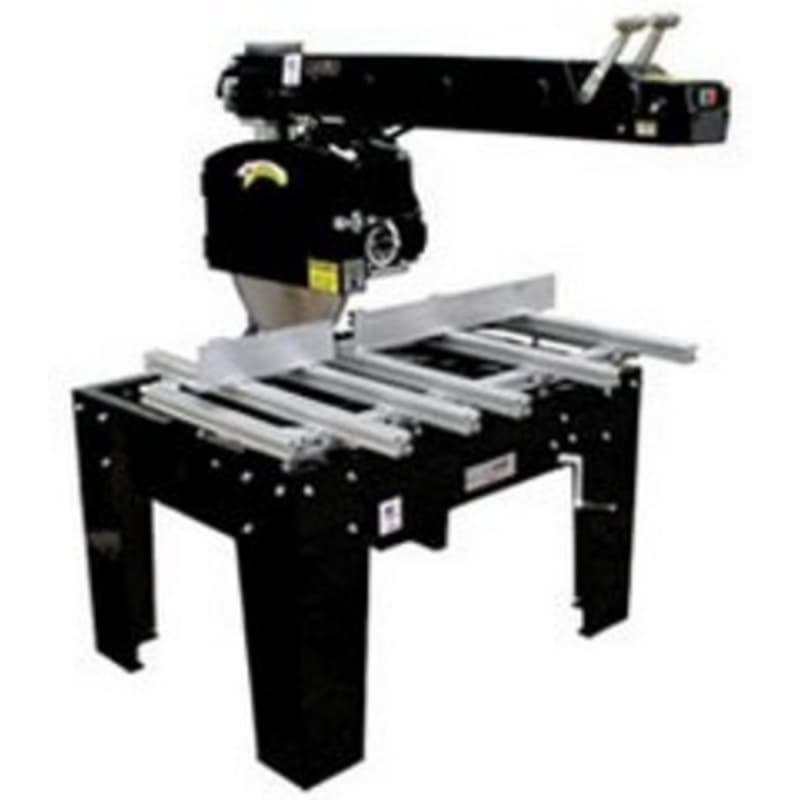

Built to perform in the toughest industrial environments, the Original Saw 3579-22M is a 22.5" Super Duty Metal Cutting Radial Arm Saw engineered for precision and endurance. Designed for multi-shift use, it handles aluminum, steel, brass, bronze, plastic, and more. With a solid cast iron build, powerful 7.5 HP motor, and deep cutting capabilities, this machine delivers unmatched cutting power and stability, it's the perfect addition for fabrication shops, manufacturers, and metalworking professionals.
Key Features & Benefits
Built Tough for Industrial Longevity
• Heavy-duty cast and ductile iron frame absorbs vibration for accurate, consistent cuts.
• Powder-coated steel legs and frame resist wear and harsh shop environments.
• With a 900 lb build, this machine stands up to constant, high-volume use.
Versatile Cutting Capabilities for Every Task
• Performs crosscuts, bevels, miters, and compound miter cuts with smooth precision.
• 8" cutting depth in a single pass handles thick extrusions and metals with ease.
• Choose between 17 3/4" or 25 3/4" crosscut capacity to suit your material sizes.
Powerful 7.5 HP Motor for Reliable Operation
• TEFC motor ensures continuous performance, protected from dust and debris.
• Operates on 3-phase power: 208V, 230V, 460V, or 575V for flexible installation.
• VFD technology supports soft startup, reducing wear on the motor and blade.
Smart Safety Features That Protect Your Team
• E-Stop quickly halts operations in emergencies.
• Full upper and lower blade guards offer full-time protection.
• Automatic electronic blade brake brings the blade to a safe stop after each cut.
Work Surface That Adapts to Your Needs
• Standard T-slot aluminum table offers a solid, clamping-ready base.
• Upgrade to HDPE inserts for a smoother surface for cutting small parts.
• Add an enclosed table guard to improve dust control and increase safety.
Flexible Clamping for Precision and Productivity
• Manual clamps slide through T-slots to hold materials firmly in place.
• Upgrade to a two-front pneumatic system for repetitive tasks.
• Choose four-point pneumatic clamping for large or irregular shapes.
Feed Options That Match Your Workflow
• Standard manual hand crank gives you fine control for detail work.
• Optional semi-automatic crossfeed streamlines repetitive cutting.
• Improve output in high-volume shops with automated return functionality.
- Capable of Rip Cuts: No
- Max Crosscut: 16" Wide
- Phases of Voltage Available: 3 Phase
- Voltage Options: 230, 460
- Arm: Medium
- Brake: Automatic
- Pneumatic Clamping Ability: Yes (Add on)
- Powerfeed Option: Yes (Add On)
- Blade Size: 22" / 550 mm
- Hertz: 50/60
- Max Depth Cut: 8" Deep
- Motor: 7.5 HP
- Shipping Dimensions: 72" x 52" x 48"
- Shipping Weight: 1000 lbs
