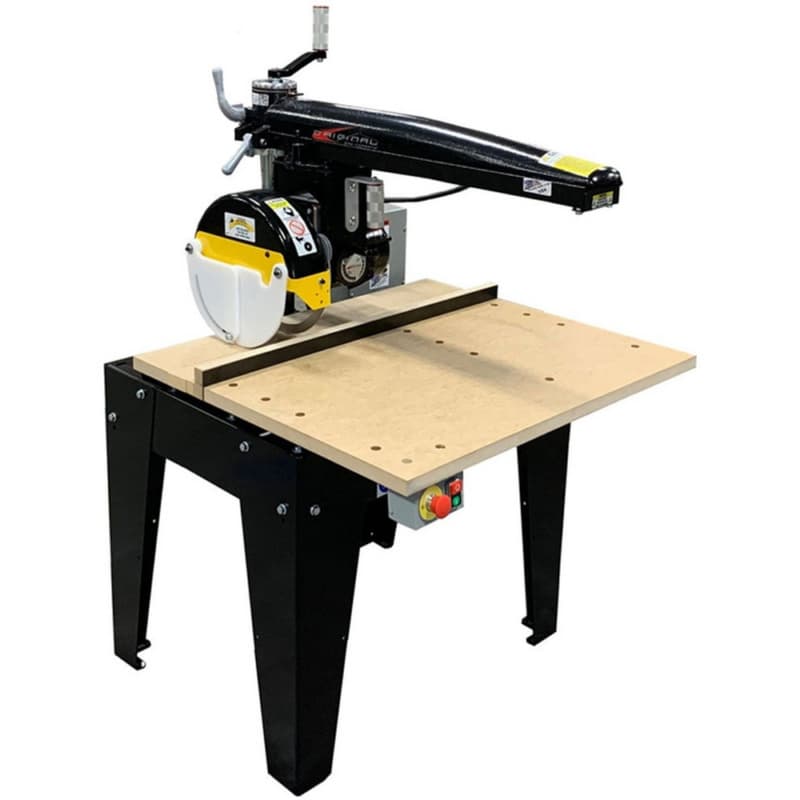

The 3512-01 Original Saw Series 12 Contractor Duty Radial Arm Saw is engineered for precision, durability, and long-lasting performance. Built with a robust cast iron body and a protective powder-coated finish, this radial arm saw is designed to withstand the demands of professional woodworking. Whether you’re involved in millwork machinery, panel processing equipment, or solid wood processing, this saw provides unmatched reliability and precision. Equipped with an automatic blade braking system, an MDF table top, and a standard E-Stop safety feature, it ensures maximum efficiency and safety in every operation.

Key Features and Benefits
Exceptional Cutting Capacity
• 24" Crosscut capability allows for handling large workpieces effortlessly.
• 3" Depth of cut provides versatility for various woodworking applications.
• Ideal for panel processing equipment, solid wood processing, and other advanced cutting needs.

Powerful and Reliable Motor
• Available in both single-phase and 3-phase motor options for flexibility.
• Equipped with a 3 HP motor that ensures consistent, high-powered performance.
• TEFC (Totally Enclosed Fan-Cooled) motor design enhances durability and longevity.

Enhanced Safety Features
• Emergency Stop (E-Stop) included as a standard feature to ensure instant shutdown in case of an emergency.
• Automatic blade braking system halts the blade quickly, reducing potential hazards.
• High-density polyethylene (HDPE) lower blade guard provides full coverage for added protection.

Precision Engineering for Superior Performance
• Carriage rides on four tight-tolerance, horizontally mounted convex bearings for smooth and accurate movement.
• New yoke assemblies allow for precise bevel clamping on angles and can swivel to rip with an optional rip kit.
• Re-engineered elevating crank and yoke pull grip provide improved ergonomics for effortless operation.

Durable Work Table and Accessories
• MDF table top ensures a stable and reliable cutting surface.
• Standard 32" work table height provides comfort and ease of use.
• Includes a wrench kit with an Allen arbor wrench and flat arbor wrench for convenient adjustments.

• Brake time: 15 seconds
• Can do the following cuts: Bevel, Compound Miter, Crosscut, Dado, Miter, Rip (with Rip Kit Add On)
• Capable of Rip Cuts: Yes
• Crosscut: 24" (305 mm)
• Cuttable Material: Plastic, Wood
• Depth: 40" (1016 mm)
• Depth of cut at 45°: 1.25" (30 mm)
• Depth of cut at 90°: 3.06" (77 mm)
• Dust extraction adapter (optional equipment): 5" (125 mm)
• Fuse: 40 Amp
• Max Cross Cut at Max Depth: 19" wide"
• Max Crosscut: 21 3/4" wide
• Max crosscut capacity at 0° in I" / 25mm stock: 24" (600 mm)
• Max Miter at -3/4": 15"
• Max Out Rip: 31" (787 mm)
• Max rip cut width: Not applicable
• No load spindle speed 60Hz: 3400 RPM
• Phases of Voltage Available: 3 Phase, Single Phase
• Pneumatic Clamping Ability?: Yes (Add on)
• Powerfeed Option?: No
• Recommended Usage: Up to 6 hours per day, depending on the size and type of material
• Voltage Options: 230V
• Blade Size: 12" (300 mm)
• Height: 53" (1346 mm)
• Max Depth Cut: 3 1/4" deep
• Max. Cutting Width: 24"
• Motor: 3 HP 1 phase TEFC (totally enclosed fan cooled) motor, 3 HP 3 phase TEFC (totally enclosed fan cooled) motor
• Shipping Dimensions: 48 × 40 × 48 in
• Shipping Weight: 440 lbs
• Spindle Diameter: 1" (25.4 mm)
• Table Height: 31" (787 mm)
• Weight: 425 lbs (193 kg)
