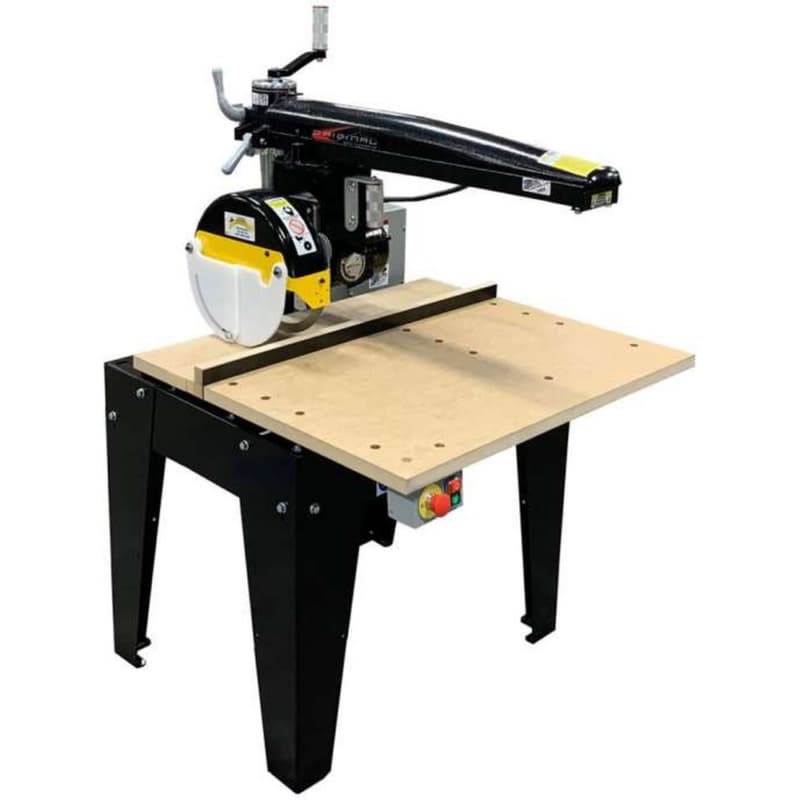

35012-03 Original Saw Series 12" Contractor Duty Radial Arm Saw is engineered for superior performance, durability, and precision. Constructed with a cast iron and cast aluminum body, it is mounted on a heavy-gauge steel frame to ensure maximum stability. This radial arm saw delivers exceptional cut quality, making it an ideal choice for millwork machinery, panel processing equipment, and solid wood processing. Constructed with professional woodworkers in mind, it includes an oversized MDF table top, a precision carriage system, and an automatic blade braking system for enhanced safety and efficiency.
Key Features and Benefits
Powerful and Reliable Performance
• 3 HP, 3-phase TEFC motor operates on 208/230/460 volts at 50/60 Hz, delivering consistent power for heavy-duty cutting tasks.
• Automatic blade braking system ensures quick stops, improving operational safety.
• Designed for panel processing equipment and solid wood processing, providing smooth, precise cuts every time.
Superior Cutting Capability
• 24" Crosscut standard on all machines in this series allows for handling large materials with ease.
• 12" blade delivers clean, professional-grade cuts suitable for various woodworking applications.
• Arbor nut and precision ground arbor collars ensure accurate blade alignment for superior cut quality.
Precision and Stability
• Precision carriage rides on four tight-tolerance, horizontally mounted convex bearings, ensuring smooth and accurate cutting movements.
• Heavy-gauge steel frame and legs with a powder-coated finish enhance durability and longevity.
• Oversized MDF table top provides a stable and spacious work surface for increased efficiency.
Ergonomic and User-Friendly Design
• Standard worktable height of 32" offers optimal comfort during extended use.
• Includes a wrench kit with an Allen arbor wrench and flat arbor wrench for easy blade adjustments and maintenance.
• Designed to integrate seamlessly with woodworking machinery supplies and parts, enhancing workflow efficiency.
- Brake time: 15 seconds
- Can do the following cuts: Bevel, Compound Miter, Crosscut, Dado, Miter, Rip (with Rip Kit Add On)
- Capable of Rip Cuts: Yes
- Crosscut: 24" (305 mm)
- Cuttable Material: Plastic, Wood
- Depth: 40" (1016 mm)
- Depth of cut at 45°: 1.25" (30 mm)
- Depth of cut at 90°: 3.06" (77 mm)
- Dust extraction adapter (optional equipment): 5" (125 mm)
- Fuse: 40, 30, 20 Amp
- Max Cross Cut at Max Depth: 19" wide
- Max Crosscut: 21 3/4" Wide
- Max crosscut capacity at 0° in I" / 25mm stock: 24" (600 mm)
- Max Miter at -3/4": 15"
- Max Out Rip: 30 1/4"
- Max rip cut width: Not applicable
- No load spindle speed 50Hz: 2825 RPM
- Phases of Voltage Available: 3 Phase, Single Phase
- Pneumatic Clamping Ability?: Yes (Add on)
- Powerfeed Option?: No
- Recommended Usage: Up to 6 hours per day, depending on the size and type of material
- Voltage Options: 208, 230, 460 V
- Blade Size: 12" (300 mm)
- Height: 53" (1346 mm)
- Max Depth Cut: 3 1/4" Deep
- Motor: 3 HP 1 Phase TEFC (Totally Enclosed Fan Cooled) Motor, 3 HP 3 Phase TEFC (Totally Enclosed Fan Cooled) Motor
- Shipping Dimensions: 48 × 40 × 48"
- Shipping Weight: 440 lbs
- Spindle Diameter: 1" (25.4 mm)
- Table Height: 31" (787 mm)
- Weight: 425 lbs (193 kg)
