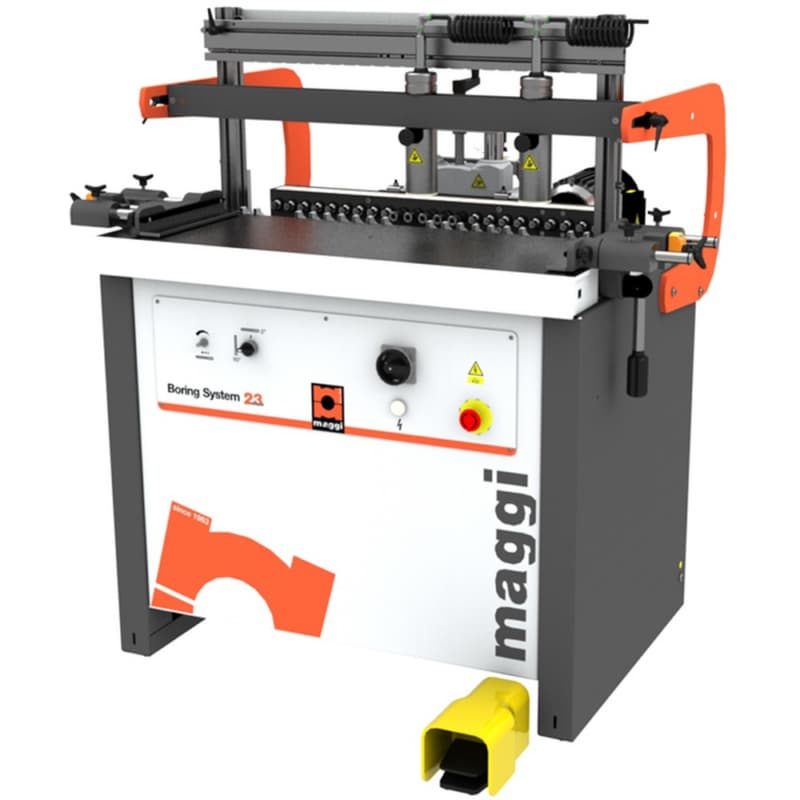

The Maggi Boring System 23, 2HP 1 Phase is a semiautomatic, Mult spindle, single-head boring machine designed for precise vertical and horizontal drilling. Ideal for wood-based panels and solid wood, it's the go-to solution for furniture manufacturers seeking speed, compact design, and Italian craftsmanship. Two times faster than a manual boring machine, it delivers accuracy and repeatability with a small 1 sqm footprint. With over 20,000 machines manufactured and more than thirty years of expertise, this model reflects the reliability of Italy’s finest industrial engineering.
Key Features & Benefits
Save Space Without Sacrificing Capability
• Small footprint: 1 sqm, ideal for workshops where floor space is limited
• N.2 patented safety hold-down clamps keep workpieces secure during operation
• N.5 quick-change chucks enable fast tool swaps
Drill with Precision and Versatility
• Performs both vertical and horizontal drilling on panels and solid wood
• Equipped with a pneumatic head rotation from 0° to 90° for flexible drilling angles
• Quick-change spindles with 32 mm interaxis ensure consistent results
Speed Up Production with Smart Setup
• Two times faster than a manual boring machine for higher output
• Boring-height adjustments and Spiral System for quick depth changes minimize downtime
• Quick-change chucks allow for rapid bit replacements without tools
Enhanced Accuracy with Fine Adjustments
• N.2, 1500 mm long aluminum fences with 4 reference stops for accurate repeat drilling
• Removable side-fences adjustable on high-precision numeric counters for repeatable alignment
• Fixed reference stops at 37 mm for hinges to simplify cabinet assembly
• Rear fence with 300 mm stroke ensures panel support and alignment
Durability and Quality Engineering
• Built with a well-dimensioned steel working table for long-term durability
• 100% made-in-Italy machines abiding by the highest quality standards
• Produced using the “Lean†manufacturing process, also known as the “Toyota Systemâ€
Seamless Dust Collection Compatibility
• Ready to be connected to a dust-collector for a cleaner working environment
• Protects both operators and machinery from dust-related wear
• Reduces cleanup time post-operation
- Max. Boring Depth: 65 mm
- Max. Tool Diameter: 40 mm
- Max. Boring Height: 55 mm
- Max. Panel Thickness: 60 mm
- No. Of Spindles: 23
- Spindle Spacing: 32 mm
- Type: Single Head
- Motor: HP 2 / KW 1,5 - RPM 2800
- Phase: 1 ph
- Total Interaxis: 704 mm
- Gross Weight: 301 Kg
- Dust Collection Hood Diameter: 80 mm
- Overall Dimensions: 1285 x 872 x 1300 mm
- Package Dimensions: 1115 mm x 950 mm x 1050 mm
- Rod Packaging Size: 1500 x 120 x 60 mm
- Net Weight: 271 kg
- Handling Fee: 299
