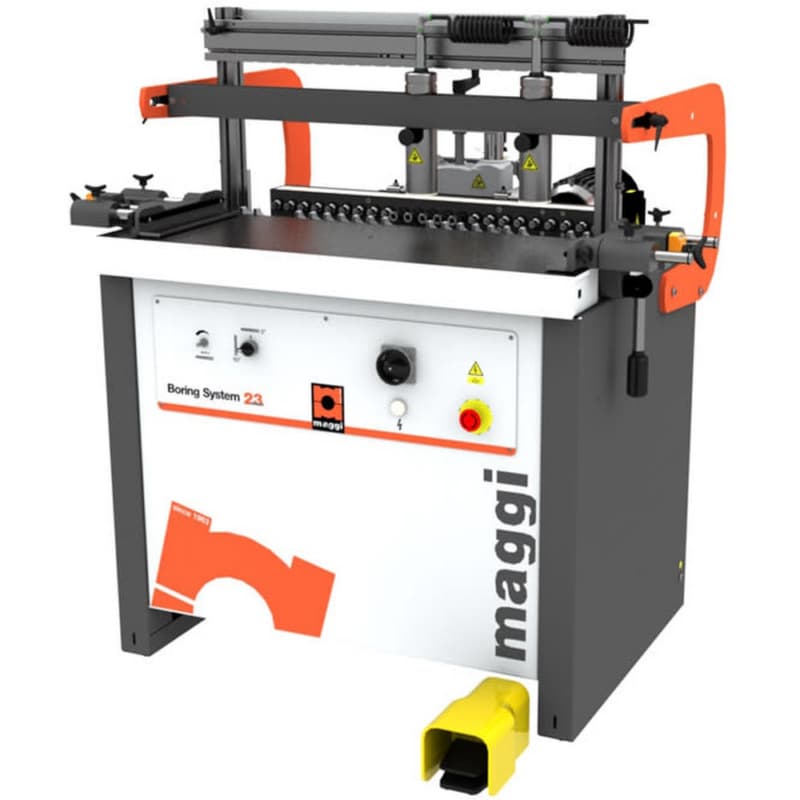

The Maggi System 23 2 HP 3 Phase Construction Line Boring Machine is a high-performance semiautomatic, Mult spindle, single-head drilling solution. Designed for horizontal and vertical drilling in wood-based panels and solid wood, it is ideal for furniture manufacturers. With a small footprint of just 1 sqm, this powerful machine delivers speed and precision, allowing for increased productivity. It’s also twice as fast as a manual boring machine, making it the go-to choice for professionals seeking efficiency without compromising on quality. Built in Italy, this machine ensures high reliability and precision, backed by over 30 years of experience.
Key Features & Benefits
Compact Design for Maximum Efficiency
• Small footprint of just 1 sqm, allowing easy placement in limited spaces
• Two times faster than a manual boring machine, boosting production output
• Perfect for horizontal and vertical drilling, increasing versatility in various woodworking applications
Durability and Precision
• Equipped with a 2 HP 3 Phase motor, ensuring powerful and consistent drilling performance
• Quick-change spindles make tool replacement easy and efficient
• 32 mm interaxis for precise drilling spacing, ensuring uniformity in your projects
• Pneumatic head rotation from 0-deg to 90-deg, providing flexibility to work on different angles
High-Quality Build for Long-Term Use
• Well-dimensioned working table made of steel for stability and durability during operations
• Ready to be connected to a dust-collector, ensuring a clean and safe working environment
• Manufactured according to EC standards, ensuring safety and compliance with industry regulations
Enhanced Safety and Easy Adjustments
• N.2 patented safety hold-down clamps secure materials firmly for accurate boring
• Boring-height adjustment on numeric counters allows for precise depth control
• Spiral System: patented device for quick and easy depth adjustments for optimal flexibility
User-Friendly Features for Increased Productivity
• N.2 removable side-fences adjustable on high-precision numeric counters for quick adjustments
• Fixed reference stops at 37 mm, perfect for precise hinge boring
• Rear fence with 300 mm max. stroke for extended material support
- Max. Tool Diameter: 40 mm
- Max. Boring Height: 65 mm
- No. Of Spindles: 23
- Type: Single Head
- Work Table Dimensions: 949 x 350 mm
- Max. Panel Dimensions: 960 x 3000 mm
- Left And Right Spindles: N. 11 - N. 12
- Work Table Height: 860 mm
- Gross Weight: 301 Kg
- Air Consumption: 10 NL
- Dust Collection Hood Diameter: 80 mm
- Overall Dimensions: 1285 mm x 872 mm x 1300 mm
- Package Dimensions: 1115 mm x 950 mm x 1050 mm
- Rod Packaging Size: 1500 mm x 120 mm x 60 mm
- Net Weight: 271 kg
- Weight: 750 lbs
- Handling Fee: 299
