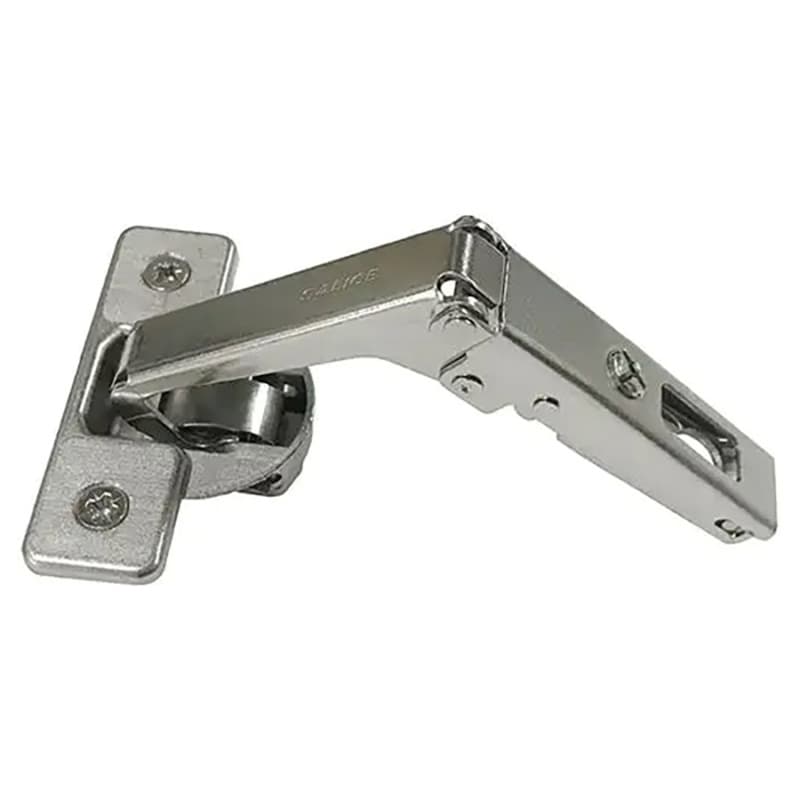

Salice 200 Series Self-Close Overlay Face-Frame;Frameless Pie Cut Corner Hinge Nickel, 70° Dowel - C2RYA99

Salice Series 200 Pie Cut Corner Hinge Use

Salice Series 200 pie cut corner hinge gives you a 70 degree self-closing concealed hinge solution for pie cut corner cabinet doors, so you can keep lazy-susan style corners tight, controlled, and hidden from view in both residential and commercial jobs. This hinge is part of an integrated system of concealed hinges developed for projects that require a clean, hidden hardware layout, which helps you keep a consistent hinge platform across a run of cabinets. It is designed specifically as a pie cut corner hinge for cabinets, so it addresses the awkward geometry at corner doors that standard hinges do not handle well. The hinge is classified as a concealed cabinet hinge, so all working parts sit inside the cup and arm, keeping the exterior of the door clear and easy to finish or clean.

Key Salice C2RYA99 Details That Help On Site

• The pie cut corner hinge design targets the specific motion and alignment needs of corner cabinet doors, so you can hang linked doors in a corner opening without improvised hinge layouts or extra fitting time.
• The 70 degree opening angle limits door swing to a controlled arc, which helps prevent pie cut doors from clashing with adjacent doors or walls while still giving usable access into the cabinet interior.
• The hinge is self-closing, so once the door moves toward the frame it pulls itself shut, keeping corner doors seated without separate catches and helping doors stay aligned in everyday use.
• The hinge is designed for both residential and commercial cabinets, so the same part number can be used across kitchens, office casework, and similar installations, simplifying stocking and layout decisions.
• The product carries a lifetime warranty, which reflects its intended long-term duty in frequently used cabinets and supports using it in higher-traffic residential and commercial projects.

Installation, Cup Geometry, And Mounting Control

The hinge cup depth is 11 mm, which lets it work with most cabinet door profiles where material thickness or detailing would interfere with deeper cups, so you can drill a standard mortise without sacrificing face detail. A hinge cup edge drilling distance of 3 mm to 6 mm gives a workable window for cup boring, which helps keep reveals consistent even when you are matching existing drilling patterns on replacement jobs. Patented parallel side-to-side adjustment from plus 4.5 mm to minus 1.5 mm via the hinge arm screw gives you lateral movement after mounting, so you can fine-tune gaps between pie cut doors without re-boring or shifting plates. The hinge body is set up for a dowel fastening approach in this C2RYA99 version, aligning with a press-in style installation that speeds repetitive cabinet production work.

Using This Self-Closing Pie Cut Corner Hinge

Where This Pie Cut Corner Hinge Fits Best

This Salice 200 Series self-close overlay face-frame and frameless pie cut corner hinge is designed for corner cabinets where two doors are linked in a pie cut layout, so it suits corner units in both framed and frameless construction. Its use in both residential and commercial cabinets means it can be specified for kitchens, break rooms, and similar storage runs that share the same carcass style. As a concealed cabinet hinge, it keeps hardware hidden when the doors are closed, which supports applications where a clean exterior is part of the design intent without changing how the unit functions inside. The 70 degree opening angle works particularly well where adjacent doors, appliances, or walls limit swing, so the motion of the pie cut door stays controlled within the available space.

Adjustment, Build Details, And Long-Term Performance

The patented parallel side-to-side adjustment of plus 4.5 mm to minus 1.5 mm via the hinge arm screw allows you to move the pie cut doors laterally while keeping them parallel, which simplifies dialing in even reveals across the corner joint. This adjustment feature supports repeatable results on multi-cabinet runs, since small case or door variances can be corrected at the hinge arm instead of remaking parts. The hinge is all steel and nickel plated for corrosion resistance, so it stands up to typical kitchen and workroom moisture levels while maintaining a stable pivot over time. It is permanently self lubricating using environmentally safe lubricants, which keeps motion smooth over repeated cycles without separate lubrication steps in the field. The hinge exceeds ANSI/BHMA Grade 2 standards and meets ISO9001 and ISO14001 environmental certifications, so it aligns with performance and process expectations often specified in commercial millwork documents. As part of the Series 200 concealed hinge family, it can integrate into broader Salice layouts where consistent motion, appearance, and adjustment methods reduce learning curve and rework for installers.

Common Questions About Salice C2RYA99 Pie Cut Hinge

Choose This Hinge For Controlled Corner Door Motion

The Salice 200 Series self-closing overlay face-frame and frameless pie cut corner hinge C2RYA99 offers a 70 degree concealed solution tailored to pie cut corner doors, so you can match residential and commercial cabinet specifications with predictable motion. Its 11 mm cup depth, 3 mm to 6 mm cup edge distance, and patented parallel side-to-side adjustment window from plus 4.5 mm to minus 1.5 mm give you practical drilling and tuning flexibility at installation. With an all-steel, nickel plated, permanently self lubricating construction that exceeds ANSI/BHMA Grade 2 standards and carries a lifetime warranty, this hinge is suited to long-term cabinet projects where clean appearance and repeatable alignment are priorities.
