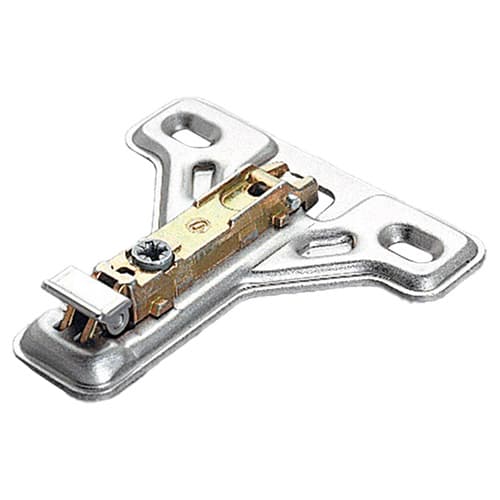

Domi cam adjustable face frame mounting plate defines this Salice America hinge mounting plate as a precise way to mount cabinet hinges on face frame construction. Constructed of stamped steel with nickel plating to resist corrosion, the plate provides a durable mounting surface that maintains its function in typical shop and jobsite conditions. As part of the Salice hinge mounting plates family, it supports consistent alignment when paired with compatible hinge arms in cabinet assemblies. The 1mm thickness identifies this plate as suitable for specific overlay applications where that height is required. A single cam adjustment built into the plate helps fine-tune door position relative to the frame. This mounting plate serves as the fixed reference point on the cabinet, which lets installers use the hinge arm for swinging motion while the plate sets the geometry.
The 1mm face frame mounting plate thickness defines how far the door overlays the frame when used within the 0 mm to 4 mm overlay application range. The screw-on style, described as a screw-in mounting plate, uses screws through the plate into the face frame to anchor the hinge interface solidly. Manual elongated screw hole height adjustment of plus or minus 2 mm lets the installer loosen the screws and nudge the plate vertically, correcting reveals without relocating pilot holes. The cam depth adjustment range of -0.5 mm to +2.8 mm then gives an additional axis of fine control, moving the door closer to or farther from the cabinet face so doors line up across a bank.
This hinge mounting plate is in the hinge mounting plates product class, which identifies its role as the stationary partner to a hinge arm on cabinet projects. Its design as a face frame mounting plate aligns it with cabinets built using a frame around the opening instead of full-access boxes. The 1mm thickness positions the door relative to that frame for overlay applications, tying directly into how front gaps present across doors and drawer fronts. Because the plate uses a cam adjustable design and elongated screw holes, it suits projects where multiple doors must align along tall pantry runs, upper rows, or long banks of base cabinets. The stamped steel construction with nickel plating to resist corrosion supports use in kitchens, baths, and workrooms where humidity and handling are part of daily service.
The single cam built into this Domi cam adjustable face frame mounting plate provides -0.5 mm to +2.8 mm cam depth adjustment, and that depth range lets installers move a door closer to or farther from the cabinet by turning the cam rather than remounting the hinge. When combined with +/-2 mm of manual elongated screw hole height adjustment, each plate offers two axes of movement, so door reveals can be tuned both vertically and in depth without pulling the cabinet off the wall. Availability in 0 mm to 4 mm thickness for overlay applications means an installer can choose plate thicknesses across a job to standardize overlay and then rely on these adjustments for final tuning. A lifetime warranty supports this adjustment capability by backing the plate for long-term hinge alignment under normal cabinet use.
The Domi cam adjustable face frame mounting plate is described as a face frame mounting plate, so it is intended for cabinets that use a face frame at the front opening.
The 1mm thickness defines the mounting height within the available 0 mm to 4 mm thickness range for overlay applications, which sets how far the door overlays the cabinet face frame.
The single cam on this plate provides -0.5 mm to +2.8 mm cam depth adjustment, allowing the hinge connection to move in or out for precise control of door-to-cabinet spacing.
The manual elongated screw hole height adjustment of plus or minus 2 mm lets the plate shift up or down on the face frame, which helps fine-tune door reveals without relocating screw holes.
The stamped steel construction with nickel plating to resist corrosion provides a stable hinge base that stands up to typical moisture and handling in kitchen, bath, and shop environments.
The lifetime warranty on this hinge mounting plate indicates that Salice America supports its long-term performance as part of normal cabinet hinge assemblies.
This Salice hinge mounting plate, identified as the Domi cam adjustable face frame mounting plate BAU3L19, combines stamped steel construction, nickel plating, and both cam depth and elongated screw hole adjustment for precise overlay control. The 1mm thickness and availability across the 0 mm to 4 mm range tie directly to overlay applications where consistent door position matters. For cabinet runs that rely on face frames and need repeatable hinge geometry, this plate provides a defined adjustment envelope backed by a lifetime warranty. Choose this part when a cam adjustable face frame mounting plate with depth and height tuning will streamline door alignment across your project.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each |  UBBAU3L49 Mfr# BAU3L49 | Domi Cam Adjustable Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4mm |
