Grass Nexis Self-Close Overlay Frameless Pie Cut Corner Hinge Nickel, 170° Screw-On - F015072858225

Grass Nexis Pie-Cut Corner Hinge For Lazy Susans

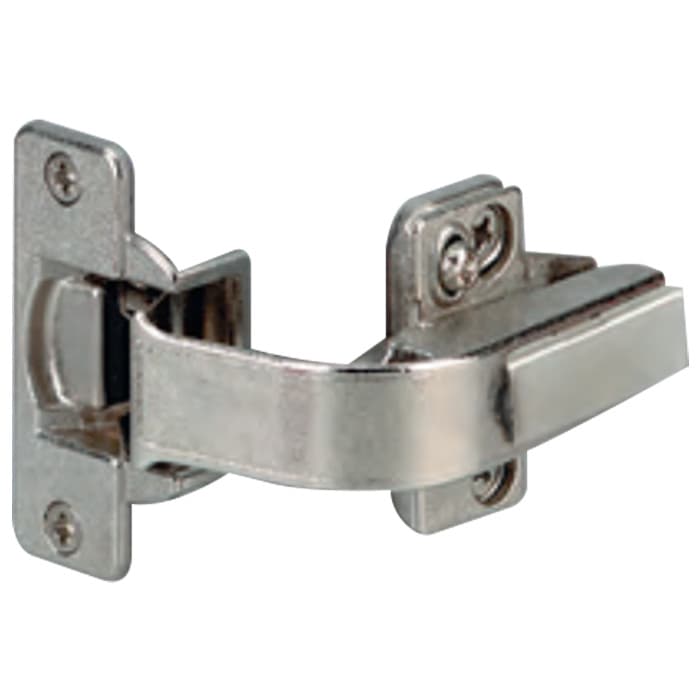

Grass Nexis pie-cut corner hinge gives a frameless corner cabinet a concealed pivot point between pie-cut doors, so the doors open as a single unit on a lazy susan cabinet. This hinge is designed to be used in corner cabients and "lazy susan" aplication, so it supports common corner cabinet layouts without exposed hardware. The hinge is used in conjuction with the Nexis 170 degree hinges, allowing the main door-to-cabinet hinges to carry most of the swing while this hinge controls the door-to-door connection. A self-closing only function pulls the doors into their closed position, which helps doors sit against the cabinet line when properly set. As part of the Nexis family from Grass America, this concealed cabinet hinge matches other European concealed long arm hinges in look and basic function on frameless installations.

Key Nexis Hinge Details That Support Corner Work

• Design for door thickness of 16 mm to 22 mm sets the intended range of door construction, so door panels in that thickness band align correctly in the hinge cup and link cleanly at the corner.
• Side-to-side adjustment of plus 1 mm to minus 3 mm gives lateral play at the hinge, which lets the installer fine-tune the gap between pie-cut doors to reduce rubbing and improve reveal lines.
• Height Adjustment of plus 2 mm to minus 2 mm offers vertical shift on the doors, so the top and bottom edges of the pie-cut pair can be brought into line with adjacent fronts and cabinet structure.
• Depth Adjustment of plus 3 mm to minus 1 mm controls how far the doors sit in or out relative to the cabinet, helping set an even overlay and reducing binding as the lazy susan rotates inside the corner cabients.
• Boring Pattern of 45 mm and 48 mm defines the hinge cup hole locations, which helps match drilling operations to common European boring layouts used in cabinet shops for consistent, repeatable results.
• The screw-on cup fastening design with two #6 x 5/8 inch screws provides a straightforward mechanical connection at the hinge cup, so the hinge can be secured using standard screw-driving steps on site or in the shop.

Screw-On Frameless Mounting And Adjustment Range

This Nexis 21 hinge pie cut corner screw-on style uses a screw-on cup fastening design, so the hinge cup is fixed directly to the door using two #6 x 5/8 inch screws. That approach suits frameless doors already bored to the specified pattern, keeping the process familiar for installers accustomed to European concealed long arm hinges. Side-to-side adjustment of plus 1 mm to minus 3 mm, Height Adjustment of plus 2 mm to minus 2 mm, and Depth Adjustment of plus 3 mm to minus 1 mm at the hinge give three-way fine-tuning. Those adjustment ranges help bring the pie-cut doors into plane with each other and the cabinet run, especially when working around small variations in door thickness from 16 mm to 22 mm or slight drilling tolerances in the corner cabients.

Using This Nexis Pie-Cut Hinge In Corner Cabinets

Where This Grass Nexis Hinge Is Applied

Grass Nexis pie-cut corner hinges are designed to be used in corner cabients and "lazy susan" aplication, so they serve where two door panels join at a corner and rotate together. In these layouts, the Grass pie-cut hinges are used in conjuction with the Nexis 170 degree hinges that mount the outer door panel to the frameless cabinet side. That pairing lets the Nexis 170 degree hinges handle the wide swing of the door set, while this concealed cabinet hinge manages the pie-cut junction between doors. The door thickness of 16 mm to 22 mm specification keeps the product targeted to typical European-style cabinet doors, so shops using those materials can plan boring and assembly around that band.

Why Nexis Details Matter For Repeatable Alignment

The boring Pattern of 45 mm and 48 mm gives clear drilling distances for the hinge cup, which supports consistent machining when cabinet doors are processed in batches. With that known pattern, fixtures or line-boring equipment can be set once, helping to repeat hole locations across many doors. Side-to-side adjustment of plus 1 mm to minus 3 mm, combined with Height Adjustment of plus 2 mm to minus 2 mm, lets an installer tune how the two pie-cut doors meet at the corner so edges align and reveals stay even after hanging. Depth Adjustment of plus 3 mm to minus 1 mm lets the door faces move in or out to sit flush alongside doors hung on Nexis 170 degree hinges, which supports a clean look when the lazy susan is closed. Because this model is available in self-closing only, the hinge contributes a consistent close-in action across the corner door set. Nexis hinges are designed to work with Grass mounting plates, which keeps the hinge relationship to the cabinet stable within the Grass America system on frameless builds.

Common Nexis 21 Pie-Cut Hinge Buyer Questions

Selecting This Nexis Hinge For Corner Cabinets

Choosing the Nexis 21 hinge pie cut corner screw-on style ties a corner cabient or lazy susan aplication into the Grass America Nexis system. The defined door thickness of 16 mm to 22 mm, the Boring Pattern of 45 mm and 48 mm, and the three-way adjustment ranges support precise corner door alignment. Working in conjuction with the Nexis 170 degree hinges, this concealed cabinet hinge helps set up a frameless pie-cut door pair that opens wide yet closes with a self-closing only action. For woodworking professionals sourcing Grass mounting plates and Nexis components through Wurth Baer Supply, this hinge fills the pie-cut connection role in European concealed long arm hinge projects.
