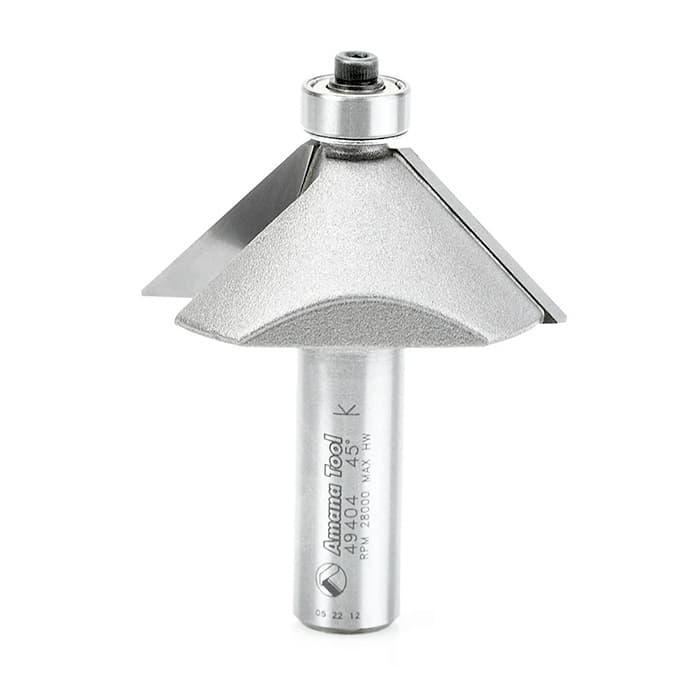

Edge Forming Chamfer Carbide Tip Bit 49404

Edge Forming Chamfer Carbide Tip Bit For Clean Miters

Edge Forming Chamfer Carbide Tip Bit with Bottom Mount Ball Bearing Guide 2 Flute 1/2" Shank Amana Tool 49404 is a router bit designed to chamfer or bevel edges. This 45 degree chamfer, 1/2" shank router bit is built to form decorative edge bevels or edge miter joints. Its carbide tip cutting edges are engineered to produce crisp, uniform edges at accurate angles, which supports tight miter joints and consistent visual lines on finished work. The bit is described for producing edges that allow 4-, 6-, 8-, 12-, or 16-sided boxes, so the 45 degree geometry supports repeatable multi-sided work. A bottom mount ball bearing guide controls the cut along the workpiece, helping the bit follow the material edge for more stable passes. The manufacturer notes that for best results this bit is used in a router table, which supports controlled feed and consistent angle control for chamfers and miters.

Key Chamfer Bit Details That Support Your Work

• The 45 degree angle design creates bevel edges suited to edge miter joints, which helps align parts when assembling 4-, 6-, 8-, 12-, or 16-sided projects.
• The carbide tip cutting edges are configured to produce crisp, uniform edges, which matters when visible chamfers need clean lines and tight joints on finished pieces.
• The 1-31/32" diameter (D) gives a broad cutting profile, allowing wider chamfers in a single pass where the project design calls for a stronger visual bevel.
• The 3/4" cutting height (B) defines the vertical cutting capacity, so the bit can form chamfers along edge thicknesses up to that height in controlled passes.
• The 1/2" shank (d) is suited to routers accepting 1/2" bits, supporting a more rigid connection that helps limit deflection during heavier chamfer cuts.
• The bottom mount ball bearing guide runs against the workpiece edge, helping the bit track straight and maintain a consistent chamfer width across the entire edge.

Router Table Chamfer Bit Setup And Dimensions

This Amana Tool router bit is specified for best results in a router table, so the fixed table setup supports controlled feed pressure and repeatable angles as you chamfer or bevel edges. The overall length (L) of 2-23/32" sets the reach from collet to tip, which affects how the bit positions above the router table surface during height adjustments. With a cutting height (B) of 3/4", the bit can address common stock thicknesses used in edgeforming while still keeping sufficient shank engagement in the collet. The 1-31/32" diameter (D) defines the circle of cut, which influences fence setting and safe clearance around the bit. A 1/2" shank (d) provides a sturdy interface with routers designed for that shank size, helping maintain stability while forming longer chamfers along an edge.

Why This Chamfer Router Bit Fits Edgeforming Jobs

Using The Amana Tool 49404 On Multi-Sided Work

The SAP description identifies this bit as CHAMFER,45 DEG,1/2" SHANK, and the web description adds that it is used to chamfer or bevel edges for decorative effect or to form edge miter joints. That 45 degree cutting profile is the angle typically used when two edges meet to form a right angle, so the bit lends itself to building 4-sided assemblies using edge miters. The same consistent 45 degree angle also supports layouts where 6-, 8-, 12-, or 16-sided boxes are required, as specified in the web description, because each segment is cut to a uniform edge profile for assembly. The router bit is categorized as Edgeforming under Router Bits, so its role is shaping the outer edge rather than cutting grooves, which directs it toward visible perimeter work such as box edges, casework edges, or decorative chamfers along boards.

The description notes that this bit can produce crisp, uniform edges at accurate angles, which is important when multiple parts must meet along miter joints with limited visible gaps. The bottom mount ball bearing guide allows the bearing to ride along the workpiece edge, so the bit maintains a set relationship to the material edge and supports consistent cut width over the run. For best results the description specifies using it in a router table, which gives a stable platform where the fence, bit height, and feed path can be held steady as you work around a panel or smaller parts. With a cutting height of 3/4" and a diameter of 1-31/32", the bit can form a substantial chamfer along the edge of typical stock while still fitting within router table setups sized for a 1/2" shank bit. Together, these details support repeatable edgeforming when building multi-sided boxes or adding bevels for decoration.

Common Questions About This Chamfer Router Bit

Select This Bit For Accurate 45 Degree Edge Chamfers

The Amana Tool Edge Forming Chamfer Carbide Tip Bit with Bottom Mount Ball Bearing Guide 2 Flute 1/2" Shank 49404 combines a 45 degree profile, carbide tip cutting edges, and a 1-31/32" diameter to support clean chamfers and edge miter joints. Its 3/4" cutting height and 1/2" shank suit router table setups aimed at decorative bevels or multi-sided box work. For projects calling for crisp, uniform 45 degree edges along board or panel perimeters, this chamfer router bit offers defined geometry and guided cutting to support accurate, repeatable results.
