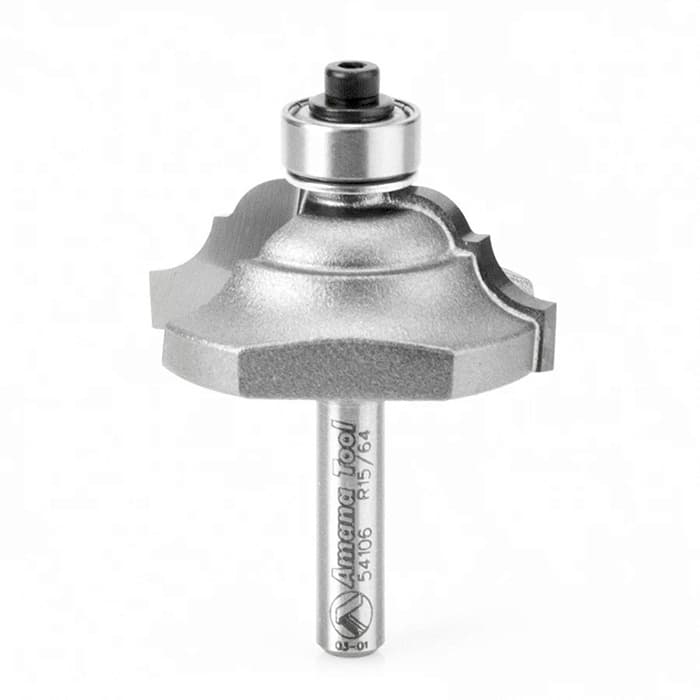

Amana Tool classical bead cove bit 54106

Amana Tool Classical Bead Cove Bit For Edgeforming

Amana Tool classical bead cove bit gives you a radius classical bead and cove profile in a single pass, which shapes a decorative edge in one setup and keeps workflow straightforward on trim and casework. The bit combines two basic forms and separates them with a fillet, so you produce a defined transition line that reads cleanly on finished edges. A 1-1/2 inch diameter cutting profile engages the edge fully, which helps maintain a consistent shape on wider stock. The 7/32 inch radius controls the curve of the main profile, giving a repeatable contour suited to many trim and furniture applications. With a 5/8 inch cutting height, the bit works along typical edge thicknesses while staying easy to handle. The 1/4 inch shank fits routers that accept this shank size, keeping setup straightforward on common handheld tools.

Edgeforming Details That Support Clean Results

• The radius classical bead and cove profile combines two basic forms with a separating fillet, which cuts a decorative edge and a crisp center line in one pass so you reduce pattern layout and improve consistency part to part.
• A 1-1/2 inch diameter cutting profile contacts more of the workpiece edge, which helps the router track steadily along the surface and supports a smoother feel as you guide the bit during production work.
• The 7/32 inch radius defines the primary curve of the edge, which standardizes the look across multiple components and simplifies matching edges on doors, tops, or face frames in the same job.
• A 5/8 inch cutting height concentrates the profile where the edge is most visible, which keeps the cut controllable in handheld routing and helps avoid over-cutting thinner stock edges.
• The 1/4 inch shank engages common router collets, which allows the bit to be used in many handheld and lighter-duty table mounted routers already set up in small shops or jobsite environments.
• The 2-flute design balances cutting edges around the bit, which promotes a smoother cut and a more even load on the router as you move along hardwood, softwood, or composite edges.
• A ball bearing on the bit provides guidance along the workpiece edge, which sets the cutting path mechanically and reduces reliance on fences when following straight or curved templates.

Router Setup And Edgeforming Bit Use

This 2-flute edgeforming router bit is suited for either handheld or table mounted routers, which gives flexibility to match the setup to the size of the workpiece and the production run. The ball bearing at the tip rides the workpiece edge or a template, which keeps the profile location tied to the material edge and supports consistent results on identical parts. With an overall length of 2-1/8 inches, the bit fits easily in many router bases while leaving enough projection for full use of the 5/8 inch cutting height. The 1/4 inch shank slides into matching collets, which simplifies switching between this profile and other bits sharing the same shank size during a project.

Using The 54106 Router Bit In Real Work

Where The Radius Classical Bead Cove Bit Fits

The 1-1/2 inch diameter on the 54106 router bit positions the classical bead and cove profile well for visible edges on furniture parts, cabinet components, and decorative trim where a defined shape is needed. Because the bit combines two basic forms separated by a fillet, you achieve both a rounded bead and a cove detail along the same edge, which suits rails, stiles, or shelf fronts that need a finished appearance. The 7/32 inch radius, paired with an additional R1 of 15/64 inch, sets the curvature of the profile, which keeps the overall contour moderate and usable across different design styles. A 5/8 inch cutting height focuses the detail near the edge, which maintains strength in the remaining material and supports use on standard thickness stock commonly found in casework and millwork shops.

Why These Bit Details Matter For Consistency

The Amana Tool classical bead cove bit uses a 2-flute configuration, which spaces cutting edges evenly around the bit and supports a smoother feel with reduced vibration as you progress along an edge. This matters when running longer parts where consistent contact improves surface quality before sanding. The ball bearing guide controls the lateral position of the profile against the workpiece, which helps repeat the same reveal even when operators change, supporting uniform results across a run. The 1/4 inch shank ties the bit to widely used collets in many routers, which reduces changeover time between machines in shops that standardize on this shank size. With an overall length of 2-1/8 inches, the bit stays compact in the router, which aids control on handheld passes while still reaching full cutting height when set in a table mounted configuration.

Common Questions About The 54106 Edgeforming Bit

Selecting The 54106 Bit For Your Next Job

The Amana Tool classical bead cove bit with ball bearing and 2 flutes is built as an edgeforming router bit that shapes a radius classical bead and cove profile in one pass. With a 1-1/2 inch diameter, 7/32 inch radius, 5/8 inch cutting height, and 1/4 inch shank, it matches common cabinet and furniture edge work while fitting routers that accept this shank size. For projects needing a consistent decorative edge separated by a fillet, this 54106 router bit from Wurth Baer Supply offers a defined profile ready to drop into either handheld or table mounted routing setups.
