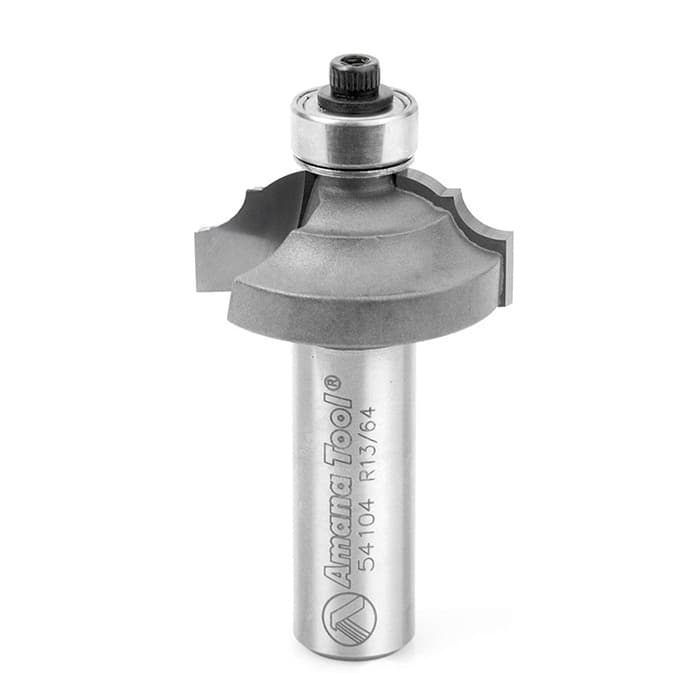

Amana Tool edge forming router bit 54104

Amana Tool Edge Forming Router Bit For Detailed Profiles

Amana Tool edge forming router bit combines a classical bead and cove profile separated by a fillet, so one pass shapes a traditional decorative edge that reads cleanly on finished parts. The 1-1/4 inch diameter cutting profile engages a wide section of the workpiece edge, which helps define the bead and cove clearly on door rails, trim, and furniture components. A 1/2 inch cutting height matches many standard stock thicknesses, so the profile sits correctly on common project materials without wasting material. The 1/2 inch shank provides a solid grip in the collet, which supports smoother cutting and reduced chatter on longer runs. Overall length of 2-3/8 inches keeps the bit compact in the router, which aids control and balance during edge forming passes.

Classical Bead And Cove Details That Support Workflow

• The combined bead and cove profile with a separating fillet forms two basic shapes in one cut, which saves time compared to switching bits while still delivering a defined, traditional edge line on visible work.
• The 1-1/4 inch diameter cutting circle engages enough edge width to fully develop the classical contour, which matters when dressing the edge of wider rails, stiles, or shelves where shallow profiles can look understated.
• The 13/64 inch radius within the profile controls how tight the curve transitions are, giving a balanced look that avoids overly sharp or flat curves on cabinet and furniture edges.
• The 1/2 inch cutting height allows the profile to sit comfortably on many standard thickness boards, which helps position the detail proportionally without leaving weak thin edges above or below the cut.
• The 1/2 inch shank fits routers accepting that collet size, and the larger shank cross-section supports a steadier cut, which is useful for maintaining a clean profile on hardwoods and longer edges.
• The overall 2-3/8 inch length keeps the bit relatively short, which supports better router control and reduces leverage on the collet during repeated passes along project edges.

Edge Forming Router Bit Setup For Consistent Results

This classical bead and cove bit is designed for use in either handheld or table mounted routers, so it can adapt to the setup that suits your part size and workflow. Using it in a handheld router allows you to bring the tool to large workpieces, which helps when dressing installed tops or long trim. Using it in a table mounted router lets the workpiece ride a fence, which supports repeatable edge placement on multiple parts. The 1/2 inch shank seats deeply in standard 1/2 inch collets, which promotes accurate height settings and stable reference to the router base or table surface. With its 2-3/8 inch overall length, the bit keeps the cutting edges close to the support of the collet, which helps maintain alignment as you run multiple edges.

Where This 54104 Edge Forming Bit Excels In Use

Edge Forming Classical Bead And Cove Applications

The combined bead and cove profile with a fillet suits projects where a defined, classical edge is part of the design, such as cabinet frames, shelves, and furniture tops. The 1-1/4 inch diameter helps the profile read correctly on parts with moderate width, giving the bead and cove enough room to develop without looking cramped. With a 1/2 inch cutting height, the detail can be positioned to complement common board thicknesses, which helps align the cut visually with panel faces and door profiles. The 13/64 inch radius is sized to give smooth transitions between bead and cove, which supports a consistent shadow line along the length of the edge.

Details That Improve Finish Quality And Repeatability

The bit uses 2 flutes, which provides two cutting edges sharing the workload, supporting smoother chip removal and cleaner surfaces along the formed profile. The 1/2 inch shank increases stiffness compared to smaller shanks, which matters when running longer stock or harder materials where deflection could distort the bead and cove. A ball bearing guide at the profile allows the edge of the workpiece to act as the guide surface, which simplifies setup on both handheld and table mounted routers by referencing directly off the stock edge. With an overall length of 2-3/8 inches, the cutting geometry stays close to the router collet, which supports minimal runout and helps maintain consistent profile depth on multiple parts. Individually packed bits are kept separated from other tools, which helps preserve the cutting edges and bearing condition between jobs.

Key Questions About The 54104 Router Bit Answered

Select This 1/2 Inch Shank Bit For Classical Edges

The Amana Tool edge forming router bit with classical bead and cove profile, 1-1/4 inch diameter, and 1/2 inch cutting height is set up for clean decorative edges on cabinet and furniture work. Its 1/2 inch shank and 2-flute, ball bearing guided design support controlled cuts in either handheld or table mounted routers. For projects that call for a defined bead and cove separated by a fillet, this 54104 edge forming bit offers the geometry needed to repeat the same edge detail across matching parts.
