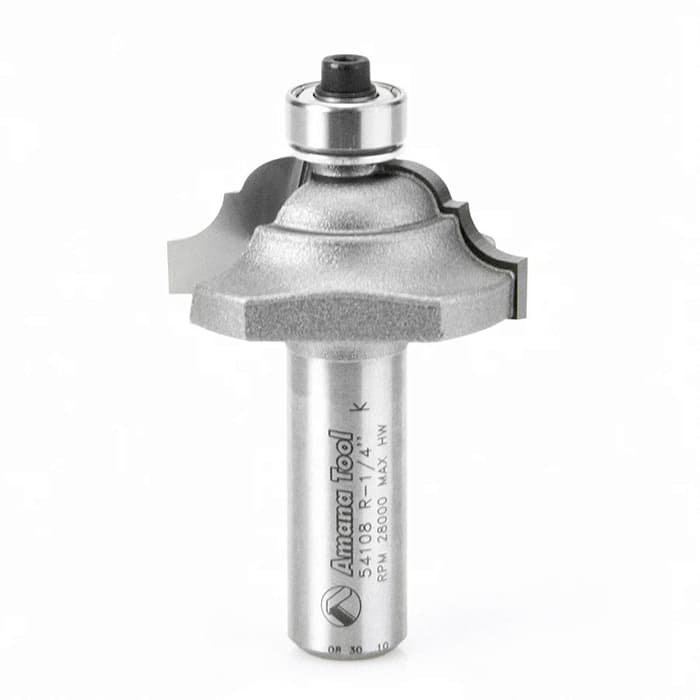

Amana Tool edge forming router bit 54108

Amana Edge Forming Bit For Classical Profiles

Amana Tool edge forming router bit combines two basic edge forms separated by a fillet, so you cut a classical bead and cove profile in a single pass, which helps keep cabinet and furniture edges consistent across a job. The bit diameter of 1-1/2 inch defines a substantial profile size, giving edges a noticeable detail that suits trim and solid wood components. A cutting height of 5/8 inch sets the vertical segment of the profile, which helps match this bit to stock thickness and design layouts. The 1/2 inch shank provides a solid grip in routers designed for 1/2 inch tooling, supporting smoother cutting on hardwood or softwood edges. Overall length of 2-1/2 inch keeps the cutting edge close to the collet, which supports stability in both handheld and table mounted use. The router bit uses a ball bearing guide, which lets the profile follow the workpiece edge without a fence for many jobs.

Key Edgeforming Details That Support Clean Work

• The classical bead and cove profile formed by combining two basic shapes with a fillet creates a finished edge in one operation, which reduces passes along cabinet doors, shelves, or face frames.
• The 1-1/2 inch diameter cutting circle helps the bit sweep a broad profile, which is useful when a more pronounced decorative edge is needed on thicker stock or visible trim.
• The 5/8 inch cutting height limits how far the profile extends along the edge, which helps align the cut with common workpiece thicknesses without over-cutting the face.
• The 1/2 inch shank size matches routers with 1/2 inch collets, which supports firmer tool holding and smoother rotation during longer profiling runs.
• The ball bearing guide on the bit allows the cutter to track along the workpiece edge, which can simplify setup in handheld or table mounted routers for repeat passes.
• The two-flute cutting design provides two cutting edges around the bit, which spaces the load and contributes to a smoother feel as the bit moves along the wood.

Router Bit Setup For Handheld Or Table Use

This Amana Tool edge forming router bit is specified for use in either handheld or table mounted routers, so it adapts to job-site routing or shop fixtures using the same profile. The 1/2 inch shank allows the bit to seat deeply in a 1/2 inch collet, which supports accurate height setting when dialing in the 5/8 inch cutting height against the workpiece. A 1-1/2 inch diameter cutting head requires a router capable of handling that size, which matters when choosing the machine for the profile run. The ball bearing guide at the cutting end follows the reference edge of the stock, which simplifies alignment because the bearing sets the path as the bit travels. Overall length of 2-1/2 inch keeps the router bit compact, which is useful when adjusting bit exposure above a table surface or below a router base plate.

Using This Classical Bead And Cove Bit In Work

Where This Edge Forming Router Bit Is Applied

This Amana Tool router bit belongs to the edgeforming category of bits, blades and cutters, so it is intended for shaping exposed edges rather than cutting joinery. The classical bead and cove form created by combining two basic shapes with a fillet is suited to cabinet parts, furniture components, and trim where a formed edge adds definition. With a 1-1/2 inch diameter and 5/8 inch cutting height, the bit works on stock where that vertical height can sit comfortably on the edge without running beyond the face. The 1/2 inch shank router bit fits routers configured for 1/2 inch tooling, which is typical in shop routers used for shaping hardwood or softwood parts. Using the bit in handheld routers lets the operator move along installed or large workpieces, while table mounted routers favor smaller parts run against a fence or bearing.

Profile Details That Support Repeatable Results

The design that combines two basic forms separated by a fillet means the bead and cove segments are fixed in relation to each other, which keeps every edge cut with this bit visually identical across multiple parts. A cutting radius of 7/32 inch and a secondary radius R1 of 15/64 inch define the size of the curved segments, which helps relate the profile scale to other design elements on the project. The 5/8 inch cutting height gives a predictable vertical span of the profile along the edge, which supports setting consistent exposure when adjusting bit height on a router table. The 1-1/2 inch diameter influences the arc of the profile as it turns, which pairs with the radii to produce the classical form that customers expect from this manufacturer part 54108. With two flutes, the bit presents alternating cutting edges to the wood, which contributes to even material removal along the length of the work. The ball bearing guide at the tip maintains a consistent offset from the workpiece edge, which allows repeated passes on multiple boards while following the same path.

Common Questions About The 54108 Edgeforming Bit

Choose This Bit For Classical Edgeforming Work

The Amana Tool edge forming router bit with manufacturer part 54108 provides a classical bead and cove profile formed by combining two basic shapes with a fillet, which suits finishing edges on cabinetry and furniture parts. The 1-1/2 inch diameter and 5/8 inch cutting height define a substantial yet controlled profile, giving you a clear sense of how it will present on common stock sizes. With a 1/2 inch shank and overall length of 2-1/2 inch, the bit fits routers designed for 1/2 inch tooling while remaining compact for accurate setup. Using this bit in either handheld or table mounted routers allows the same profile to be carried through across shop-built parts and installed work, supporting consistent detail from piece to piece.
