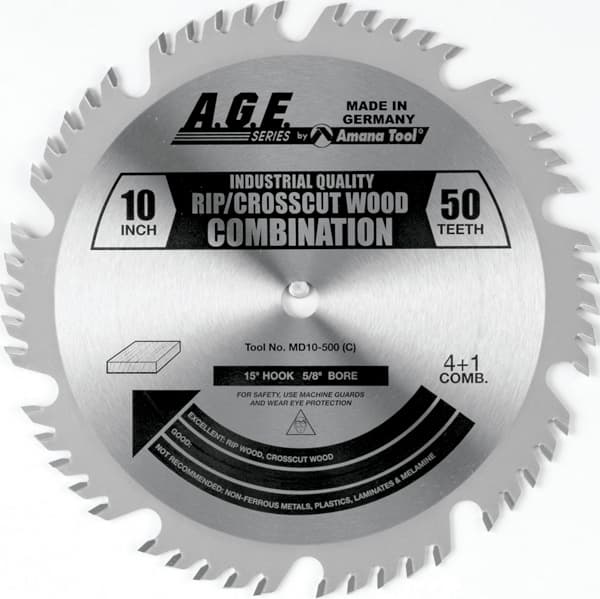

Amana A.G.E. 10 Inch Saw Blade For Versatile Cuts
Amana A.G.E. 10 inch saw blade is a circular saw blade designed for table and radial arm saws when one blade must handle multiple tasks. The 10 inch diameter with 5/8 inch arbor size fits common saw setups, so installers can keep one standard blade in rotation across a range of machines. The blade is designed for ripping and cross-cutting natural woods, which lets woodworkers move from length cuts to trim cuts without changing blades between operations.
This blade handles general trimming and crosscutting of hardwood and softwood, plywood and composition materials, so it supports mixed-material projects in a single workflow. It also excels at cutting single or double-sided plastic-laminated material, which matters when working with laminate panels that need clean edges. The design leaves a smooth, clean, chip-free finish on the top and bottom edges, helping reduce sanding and rework around visible faces.
Key Cutting Details That Support Daily Work
- The high tooth count with 50 teeth balances feed effort and cut finish, so operators can maintain steady feed rates while still getting clean edges on hardwood, softwood, and sheet goods.
- The alternate top bevel (ATB) grind is intended for cross-cutting, cut-off, and trimming, which helps produce cleaner cuts across the grain on natural woods during cabinet, trim, and furniture work.
- The triple chip grind (TCG) is perfect for hard, abrasive materials like non-ferrous metals, hardwoods, and plastics, so the teeth geometry is built to withstand tougher materials often encountered in shop environments.
- The 15 degree hook combination grind uses four ATB teeth and one raker tooth, giving a compromise between feed effort and surface quality for both ripping and crosscutting in natural woods.
- Large gullets in the saw body allow for deeper cuts and improved chip ejection despite short pitch, which supports longer passes in thicker stock without excessive heat or chip packing.
- The blade body fitted with a copper plug reduces noise and helps the blade run cooler, which supports a more comfortable work environment and stable cutting performance over long sessions.
Cutting Geometry And Saw Blade Setup Insight
The combination grind of four alternate top bevel teeth followed by one square raker tooth organizes the cutting load so each pass clears fibers and chips in stages, which supports smoother ripping and crosscutting in natural woods. The 15 degree hook angle provides forward bite into the material, helping maintain reasonable feed pressure while still targeting a controlled cut finish. A 10 degree hook angle is also referenced for achieving a compromise between feed effort and cut finish, so the series balances aggressiveness and surface quality for typical shop applications.
Because the blade is classified under circular saw blades for table and radial arm saws, it is oriented toward stationary saw setups used in cabinetry and woodworking shops. The 10 inch diameter and 5/8 inch arbor dimension work with many standard machines, which keeps blade changes straightforward within that size class. The copper plug in the blade body is there to reduce noise and help the blade run cooler, which supports extended cutting sessions without excessive blade heating.
Using This MD10-500 Blade In Real Shop Work
Where This Combination Saw Blade Performs Best
This MD10-500 combination saw blade is designed for ripping and cross-cutting natural woods, so it fits well into workflows that shift between breaking down solid stock and trimming parts to final length. The blade handles general trimming and crosscutting of hardwood and softwood, plywood and composition materials, which supports production environments where solid wood frames, carcasses, and sheet components run through the same saw.
Its ability to excel at cutting single or double-sided plastic-laminated material means it can move from raw substrates to finished laminate panels without a blade swap, which supports continuous processing of cabinet parts and countertops. The alternate top bevel grind is suited for cross-cutting, cut-off, and trimming, so installers get crisp crosscuts on face frames and moldings while still relying on the same blade for other work.
The triple chip grind is described as perfect for hard, abrasive materials like non-ferrous metals, hardwoods, and plastics, so the tooth design supports steady performance on demanding materials commonly found in commercial fixtures and specialty builds. Large gullets in the saw body allow for deeper cuts and improved chip ejection despite short pitch, which makes longer rips in thicker stock more manageable, with chips clearing the cut instead of collecting at the tooth line.
How Blade Details Support Repeatable Cutting Results
The high tooth count in this A.G.E. Series circular saw blade works with the combination of ATB and triple chip grind to deliver a successful compromise between feed effort and cut finish, so operators can maintain predictable push force while still getting a smooth surface that needs less cleanup. The 15 degree hook combination grind organizes four ATB teeth and one raker tooth in sequence, so fibers are sliced and then leveled, which helps reduce visible saw marks in both ripping and crosscutting.
The blade design leaves a smooth, clean, chip-free finish on the top and bottom edges, which keeps laminate and veneered panel edges looking sharp when they leave the saw. The copper plug fitted into the blade body reduces noise and helps it run cooler, which supports stable cutting behavior and can help maintain performance during extended use on table and radial arm saws. Being part of a circular saw blade category for table and radial arm applications, the blade is aligned with fixed-saw workflows where repeatable fence settings and consistent cut quality are critical.
Common Questions About The MD10-500 Saw Blade
What materials is the MD10-500 blade designed to cut?
The MD10-500 blade handles hardwood, softwood, plywood, composition materials, and single or double-sided plastic-laminated material, so one blade can serve mixed-material cabinet and woodworking jobs.
How does the alternate top bevel grind affect cut quality?
The alternate top bevel grind is for cross-cutting, cut-off, and trimming, so it slices wood fibers cleanly across the grain, supporting smoother edges on trim and frame components.
Why does this blade use a triple chip grind?
The triple chip grind is perfect for hard, abrasive materials like non-ferrous metals, hardwoods, and plastics, so it helps the teeth stand up to demanding shop materials while cutting.
What is the benefit of the 15 degree hook combination grind?
The 15 degree hook combination grind with four ATB teeth and one raker balances feed effort with finish quality, supporting both ripping and crosscutting in natural woods.
How do large gullets help during cutting?
Large gullets in the saw body allow for deeper cuts and improved chip ejection despite short pitch, so chips clear efficiently on longer rips and thicker stock.
What does the copper plug in the blade body do?
The blade body fitted with a copper plug reduces noise and helps the blade run cooler, supporting comfortable operation and consistent performance in table and radial arm saws.
Select This A.G.E. Blade For Mixed Woodworking
The Amana A.G.E. 10 inch saw blade with 5/8 inch arbor and 50 tooth combination grind is designed for ripping and cross-cutting natural woods, while also handling plywood, composition materials, and plastic-laminated stock. Its high tooth count, alternate top bevel and triple chip grinds, large gullets, and copper plug work together to balance feed effort, finish quality, chip ejection, and noise control on table and radial arm saws. For shops needing one blade to manage varied wood and laminate work, this MD10-500 design supports that role in a single setup.
