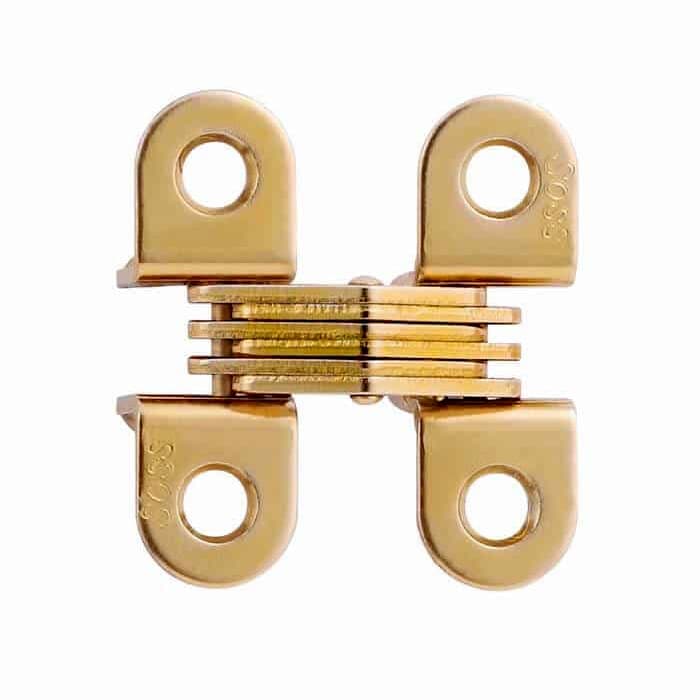

Invisible Hinges SOSS Brand Hinges, 303 Series, Dull Brass

SOSS 303CUS4 Invisible Hinge For Clean Lines

SOSS 303CUS4 invisible hinge is a Soss brand 303 Series hinge in a dull brass finish that stays concealed in the door and frame, which keeps the hinge out of sight when the job calls for a clean, uninterrupted look. The hinge is made of zinc die cast with steel links, so the body handles the routing work while the links carry the movement where repeated opening and closing are expected. Its laminated links design creates a compact, jointed action that guides the door through its swing, helping the hinge move smoothly without projecting knuckles. This hinge is fully anchored in a deep mortise, so the leafs sit buried into the material, allowing the edge profile to remain tight to the design while the hinge body is locked in place.

Key Invisible Hinge Details That Help The Job

• The hinge is made of laminated links, which creates a multi-link movement path that keeps the motion controlled inside the mortised pocket so the door can travel without exposed hinge barrels.
• The hinge is fully anchored in a deep mortise, so the installer routes a pocket rather than relying on surface mounting, which keeps the hinge stable and hidden inside the edge of the workpiece.
• The body is made of zinc die cast with steel links, so the hinge housing handles the machined recess while the steel links take on the pivoting load for regular door operation.
• The hinge offers 180 degree opening capacity, which allows the door to swing all the way back to a flat position relative to the frame where a full-open position is required.
• The product is part of the SOSS Brand Hinges 303 Series, so it follows the geometry and function associated with that series when matching to existing Soss 303 hinge layouts.
• The hinge is supplied in a dull brass finish identified as CUS4, which provides a muted brass appearance at the edges that may be visible around precise mortises.

Deep Mortise Invisible Hinge Fit And Setup

This Soss 303 Series hinge is fully anchored in a deep mortise, so the door edge and the jamb or case side both need routed pockets shaped to the hinge body, giving the installer a clear cut-and-fit workflow. Because the hinge is made of zinc die cast with steel links, the mortise captures a rigid housing while the steel link set handles the articulation, which keeps the routing work focused on the body outline instead of individual arms. The laminated links work together inside that mortise, guiding the door through its swing so the hinge can sit flush with the edge when closed and still open out to its 180 degree opening capacity.

Using This Soss Invisible Hinge In Real Projects

Where The SOSS 303CUS4 Invisible Hinge Fits

This product is a Soss brand invisible hinge in the 303 Series, so it is used where a traditional hinge butt is not needed and the designer wants the hardware concealed inside the material. The hinge is made for use when a hinge butt is not needed, which suits doors or panels where a visible barrel would interrupt the face or edge detail. Because the hinge sits fully anchored in a deep mortise, it is placed into routed cavities in both the door and the frame, suiting solid or composite construction that can accept a mortised pocket.

Why The 303 Series Details Support Consistent Results

The laminated links of this hinge create a controlled, articulated movement path, so once the mortises are cut to the 303 Series body outline, the hinge swings the door predictably through its arc. With a body made of zinc die cast and steel links, the hinge separates structural support from motion, so the die cast portion bears against the mortise walls while the steel links pivot for repeatable action. The 180 degree opening capacity gives the installer a known swing range, so clearances and stops can be laid out around a fully open position. The dull brass CUS4 finish identifies the hinge visually during layout, which helps keep orientation consistent from hinge to hinge on a run of doors.

Common Questions About The SOSS 303CUS4 Hinge

Selecting This Dull Brass Soss Hinge For Your Job

The SOSS 303CUS4 invisible hinge combines a zinc die cast body, steel laminated links, and a dull brass finish in a 303 Series form, giving installers a concealed hinge option that anchors in a deep mortise. Its 180 degree opening capacity and use where a hinge butt is not needed align it with applications that call for full-swing function and clean faces. For projects built around Soss brand invisible hinges, this 303 Series dull brass model offers a defined geometry and motion path that can be matched across similar doors or panels.
