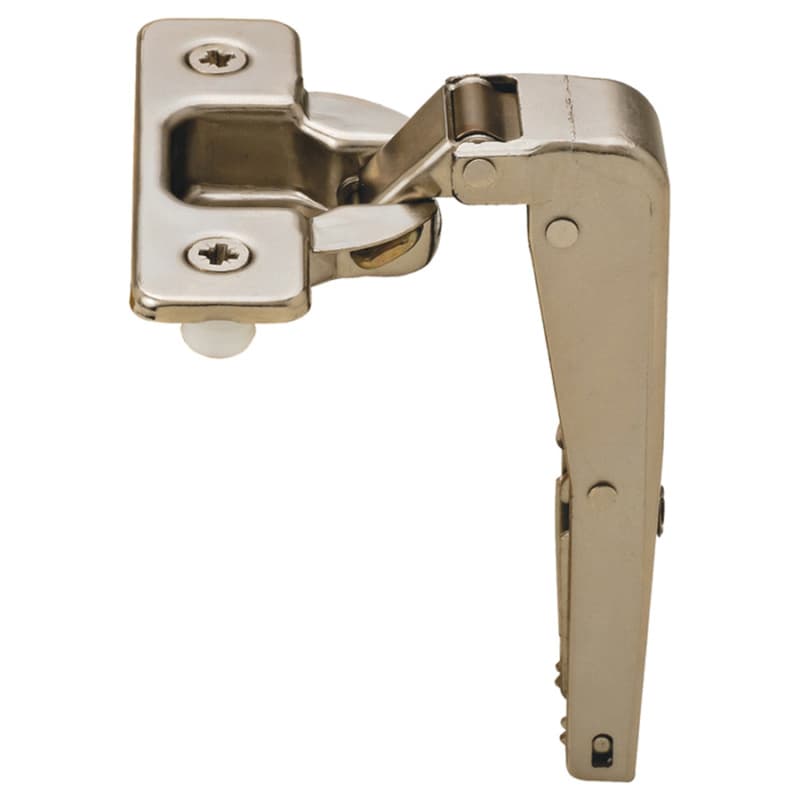

Salice 200 Series Blind Corner Hinge Purpose

Salice 200 Series blind corner hinge gives you a concealed hinge solution for blind corner cabinet applications, so face-frame or frameless projects can keep a clean exterior line while still accessing corner storage. The hinge is part of the Salice Series 200 system developed specifically for concealed hinges, so it aligns well with other Series 200 layouts in a project. A 94 degree opening angle controls door travel, which helps keep nearby doors, walls, or appliances out of the swing path. The hinge is designed for use in both residential and commercial cabinets, so the same part can be specified across mixed-use jobs. As a concealed cabinet hinge, it mounts inside the cabinet so only the door and face frame remain visible, which supports contemporary and traditional designs that call for hidden hardware.

Key Blind Corner Hinge Details That Matter

• The Series 200 94 degree blind corner hinge is all steel and nickel plated, providing a sturdy concealed hinge body with added corrosion resistance for typical kitchen and bath environments.
• The hinge is permanently self lubricating using environmentally safe lubricants, so the hinge movement stays smooth over time without added maintenance steps on installed doors.
• The blind corner design supports both inset and overlay face-frame or frameless cabinets, giving flexibility to match hinge geometry to different cabinet constructions on a single project.
• The hinge cup depth is only 11 mm, allowing it to work with many cabinet door profiles where deeper cup bores would conflict with panel thickness or decorative edge details.
• The hinge has a lifetime warranty, providing long-term performance backing for repeat-use residential and commercial cabinet installations.

Mounting And Adjustment Details For Installers

This Salice blind corner hinge uses a cup edge drilling distance between 3 mm and 6 mm, so drill patterns can be laid out within that range to position the hinge correctly on the door. The cup fastening in this configuration is a press-in dowel style, so the hinge seats into drilled dowel bores for quick, repeatable alignment on production runs. A patented parallel side-to-side adjustment of plus 4.5 mm to minus 1.5 mm is controlled via a hinge arm screw, allowing the installer to fine-tune door gaps and reveals without remounting the cup. As a self-closing hinge, it pulls the door closed at the end of travel, which supports consistent door position across multiple cabinet openings.

Using This Salice Blind Corner Hinge In Projects

Where This Concealed Hinge Fits Cabinet Designs

This blind corner hinge is designed for both residential and commercial cabinets, so it can be used in kitchens, baths, and casework that share the same hardware standard. As a concealed cabinet hinge in the European blind corner hinge category, it suits situations where the cabinet interior geometry requires a blind corner solution instead of a standard straight overlay hinge. The hinge is part of Salice Series 200, which is an integrated system of hinges, so engineers and shop managers can specify it alongside other Series 200 components to maintain consistent boring patterns and door motion across a suite of cabinets. The nickel plated finish on the all steel hinge offers corrosion resistance inside humid cabinet spaces, supporting use in sink bases and utility cabinets.

How Specific Hinge Features Support Repeatable Results

The 11 mm hinge cup depth reduces the material removed from the door, which helps maintain door strength while still providing clearance for the cup in many door constructions. The 3 mm to 6 mm hinge cup edge drilling distance gives a defined range for jig and CNC programming, which supports accurate repeatable hinge placement during door production. The parallel side-to-side adjustment range of plus 4.5 mm to minus 1.5 mm via the hinge arm screw allows the installer to correct for small drilling deviations or door warp, tightening reveals without reboring holes. The self closing function built into the hinge body draws the door shut at the end of travel, which supports clean door alignment on multi-door runs. Meeting ANSI/BHMA Grade 2 standards and ISO9001 and ISO14001 environmental certifications indicates the hinge has been tested and manufactured to recognized performance and process benchmarks for cabinet hardware.

Common Questions About Salice Blind Corner Hinge C2RBN99AC

Selecting This Blind Corner Hinge For Your Job

The Salice 200 Series blind corner hinge C2RBN99AC combines a 94 degree opening angle, concealed European design, and press-in dowel fastening to serve blind corner cabinet layouts in residential and commercial work. Its 11 mm cup depth, 3 mm to 6 mm cup edge drilling distance, and parallel side-to-side adjustment via the hinge arm screw support efficient production and install workflows. With an all steel, nickel plated, self closing construction that exceeds ANSI/BHMA Grade 2 standards and carries a lifetime warranty, this hinge provides a defined, repeatable option when specifying blind corner concealed cabinet hinges.
