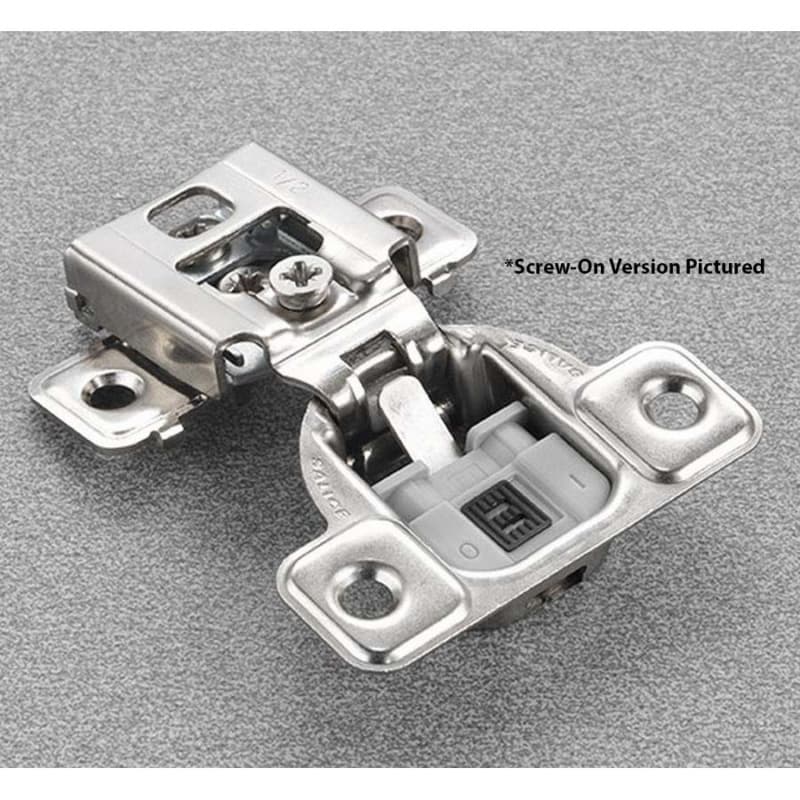

Salice Series CU Soft Close Hinge For Face Frames

Salice Series CU soft close hinge gives you a concealed cabinet hinge for 1/2 inch overlay face-frame doors, so you can keep the hardware hidden while setting a consistent reveal. This hinge is part of Salice Americas Silentia line, so the integrated soft close mechanism controls the door swing and reduces door impact at the end of travel. The hinge offers a 106 degree opening angle, which lets doors open wide for everyday cabinet access while still working within common kitchen and shop layouts. As a concealed face frame hinge in nickel plated steel, it provides a clean look with a familiar cup-and-arm format that fits standard boring processes. The manufacturer part number CUR37D9R identifies this specific 1/2 inch overlay, 3 cam, dowel-mount version within the Silentia series.

Key Salice Silentia Hinge Details For Pros

• The 1/2 inch overlay setup positions the door edge over the face frame by that amount, which helps installers match common cabinet overlays across a run.
• The 106 degree opening angle allows doors to open past 90 degrees, which helps with interior access while keeping movement within typical adjacent cabinet spacing.
• The 11 mm (7/16 inch) cup depth works with standard hinge-boring equipment, which helps streamline drilling operations on cabinet doors.
• The integrated soft close mechanism can be deactivated, which lets you tune each door to the job requirement or to customer preference while using the same hinge model.
• The possible drilling distance on the door of 2.5 mm to 6.0 mm (3/32 inch to 1/4 inch) gives flexibility in cup position, which helps you fine-tune overlay and door reveal on different door constructions.
• The nickel plated steel construction gives a hard metal hinge surface, which supports long-term hinge function in cabinet environments with regular door cycling.

Face-Frame Mounting And Dowel Hinge Details

This concealed cabinet hinge is designed for face-frame applications, so it works with cabinet constructions that have a front frame around the opening. The cup depth of 11 mm gives a predictable boring depth in the door, which supports repeatable drilling setups on production runs or small batches. With a 1/2 inch overlay rating, the hinge geometry aligns doors to cover the frame by that amount, which is common in kitchen and bath cabinets. The dowel reference in the description indicates a dowel insertion mounting style on the door, which ties directly into line-boring and pressing workflows often used in cabinet shops.

How This CUR37D9R Hinge Performs On The Job

Where This Face Frame Hinge Works Best

This Salice Series CU concealed face frame hinge is suited to 1/2 inch overlay cabinet doors, so it fits projects where doors partially cover the face frame rather than sitting flush or inset. The 106 degree opening angle serves general-purpose cabinet use, giving enough swing for access to interior contents in kitchens, baths, or shop storage without requiring unusual clearances. Because the hinge uses an 11 mm cup depth, it fits doors bored with common 35 mm cup tooling set to that depth, so production and serious DIY users can run a consistent drill program. The specified door drilling distance range of 2.5 mm to 6.0 mm lets you choose a setback that balances overlay, edge strength, and hinge cup clearance across different door thicknesses.

Adjustment, Soft Close Control, And Repeatability

The CUR37D9R hinge is identified as a 3 cam design, which signals that the hinge body offers three cam-based adjustments to fine-tune door position after mounting. This cam-style adjustability lets installers dial in alignment vertically, horizontally, and in depth according to the hinge geometry, which reduces rework on face-frame runs when reveals need tightening. The integrated soft close mechanism inside the hinge arm slows the door at the end of its swing, which helps manage noise and impact on cabinet frames during everyday use. Because the soft close function can be deactivated, you can standardize on this hinge while still tailoring closing behavior on specific doors, such as very small or very light fronts. The nickel plated steel material provides a precise hinge interface that supports these adjustments over time, so cabinet doors can continue to track correctly across multiple open-and-close cycles.

Common Questions About The CUR37D9R Hinge

Selecting This Hinge For Face Frame Projects

The Salice Series CU soft close hinge with 1/2 inch overlay, 11 mm cup depth, and 106 degree opening gives cabinetmakers a defined geometry for face-frame work. With its 3 cam adjustment and deactivatable soft close mechanism, it supports precise alignment and tailored closing behavior across a run of doors. Choosing the CUR37D9R part number groups these traits into a single concealed hinge format, so professional installers and serious DIY users can apply a consistent drilling and mounting pattern from cabinet to cabinet.
