Salice Series CU 3 Cam Soft-Close Hinge Use

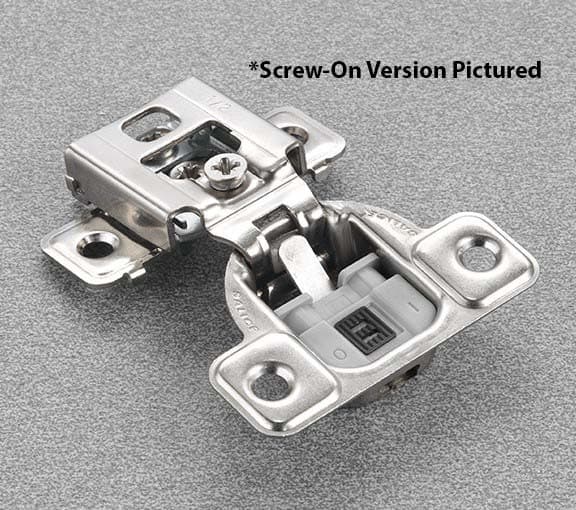

Salice Series CU 3 cam soft-close hinge describes a concealed cabinet hinge from Salice America designed for face-frame cabinets where controlled closing action is needed. This hinge belongs to the concealed cabinet hinges class, so it keeps hardware hidden while the door operates, which helps maintain a clean cabinet look in shops, kitchens, or built-ins. The hinge is specified for 1/2 inch overlay applications on face frames, which sets how the door overlays the frame and simplifies layout for consistent reveals across a run of doors. It offers a 106 degree opening angle, giving doors a wide swing that improves interior access during install, adjustment, and daily use. An 11 mm, or 7/16 inch, cup depth is specified for all hinges in this line, so door boring can follow a standard pattern across multiple doors using the same series.

Key Soft-Close Hinge Details For Projects

• The hinge uses an integrated soft close mechanism, which controls the closing motion and reduces door slamming, helping protect cabinet fronts and keeping movement quieter in finished installations.
• The soft close mechanism can be deactivated, so the installer can adapt the closing feel to different doors or customer preferences without changing to a different hinge line mid-project.
• This Salice America hinge is described as a 3 cam design, which signals multiple adjustment points that help fine-tune door position after mounting to keep reveals consistent on face-frame runs.
• The hinge is finished in nickel plated steel, giving a uniform metallic appearance inside the cabinet that coordinates with other nickel hardware while supporting a professional, consistent interior look.
• A possible drilling distance on the door of 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, is specified, giving flexibility when laying out cup holes to match door style and overlay targets on face-frame jobs.

Screw-On Face-Frame Hinge Mounting Details

The hinge is described as screw-on in the SAP description and product name, which means the installer fastens the hinge to the door and face frame using screws, giving direct mechanical fastening to wood or composite cabinet parts. This screw-on style works well where traditional shop tools and drivers are used, because it fits common cabinet construction without additional hardware systems. The hinge category is concealed face frame hinges, so it is tailored for face-frame cabinet structures instead of frameless boxes, aligning hinge geometry and overlay with that construction method. The stated 1/2 inch overlay value helps set the door edge relative to the frame during layout and boring, supporting repeatable positioning from cabinet to cabinet.

How This Salice Silentia Hinge Works In Use

Where This Concealed Face Frame Hinge Fits

This Salice Series CU 3 cam soft-close Silentia hinge is identified as a concealed face frame hinge, so it is intended for cabinets built with a face frame front rather than frameless sides. Its 1/2 inch overlay specification sets it up for doors that cover half an inch of frame, which is common in many kitchen, bath, and shop cabinet designs. The 106 degree opening angle gives users a wide door swing that exposes more of the cabinet interior, which can help with access to stored items or hardware behind the door. Because the cup depth is consistently 11 mm, or 7/16 inch, across all hinges in this line, a single boring setup can be used for multiple doors, which streamlines production runs and reduces reset time on boring equipment. The nickel plated steel finish suits cabinet interiors where a neutral metallic appearance is preferred, so the hinge coordinates with other nickel-finished components from Wurth Baer Supply.

Adjustment, Drilling Range, And Repeatable Results

The SAP description notes this hinge as a 3 cam design, indicating three distinct adjustment points that help installers dial in door alignment after mounting to face frames. This adjustment flexibility is valuable when cabinet openings are slightly out of square, because the hinge allows fine corrections at the hardware rather than the woodwork. The possible drilling distance on the door of 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, provides a defined range for the cup hole setback, which supports consistent hinge performance when doors are bored within that band. Within this range, the installer can select a distance that works with the 1/2 inch overlay specification, aligning door edges to neighboring doors and frames. The integrated soft close mechanism helps the door settle gently into the closed position, and because it can be deactivated, the same hinge part number can serve applications where a free-swing action is preferred, simplifying stocking and selection. The fixed 11 mm cup depth specification means that as long as the correct depth is bored, the hinge head seats properly, which supports long-term function and repeatable alignment across a large project.

Common Questions About This Salice CU Hinge

Selecting This Hinge For Face-Frame Runs

The Salice Series CU 3 cam soft-close hinge, identified by manufacturer part number CUP37D9R, combines 1/2 inch overlay geometry, a 106 degree opening angle, and a specified 11 mm cup depth for consistent door layout on face-frame cabinets. Its nickel plated steel construction and concealed cabinet hinge design suit projects where hidden hardware and a coordinated interior finish are important. With an integrated soft close mechanism that can be deactivated and adjustment signaled by a 3 cam description, this hinge provides flexibility for installers planning multiple cabinet runs. Sold by Wurth Baer Supply in both broken and full box quantities, with a discount available for full box quantity orders, it supports small jobs and larger production work with the same part.
