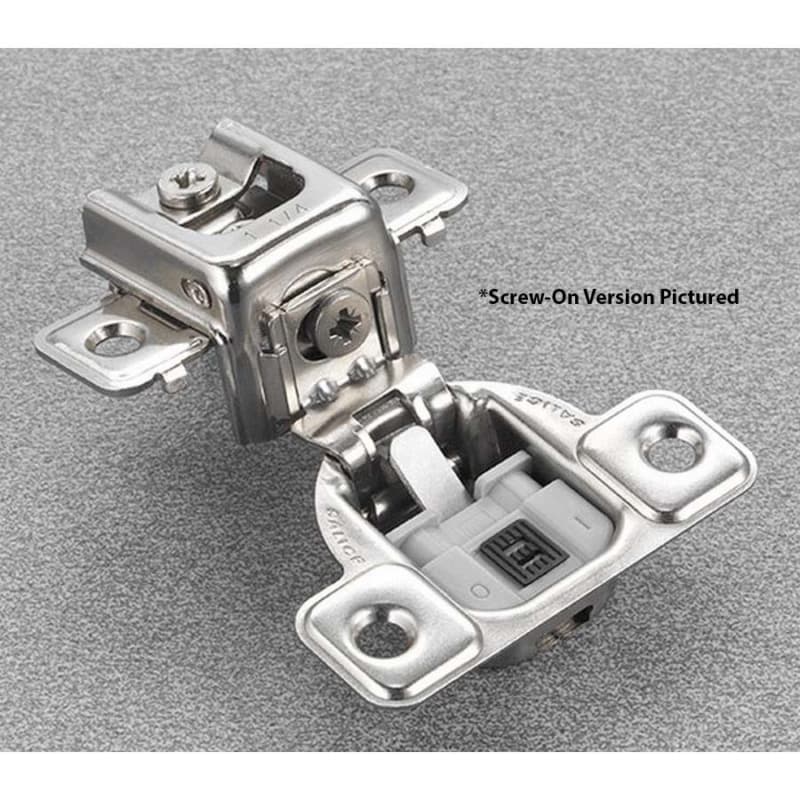

Salice Series CU 3 Cam Soft-Close Silentia 1-1/4" Overlay Face-Frame Hinges Nickel, 106° Screw-On - CUP3AD9R

Salice Series CU Silentia Hinge For Face Frames

Salice Series CU Silentia hinge is a concealed cabinet hinge designed for face-frame applications that need a 1-1/4 inch overlay, giving cabinets a clean appearance while maintaining consistent door coverage. This hinge provides 106 degree opening, allowing doors to swing wide enough for comfortable access to cabinet interiors without overextending. The hinge is part of the Salice Series CU 3 cam adjustment line, so it offers three separate cam adjustments that help fine-tune door position, supporting even reveals and smoother alignment on installed runs. The hinge is a soft-close Silentia model, which means it incorporates an integrated decelerating mechanism on the hinge, helping doors close more controlled in everyday use. This decelerating mechanism can be easily deactivated by using the activation switch clearly visible on the front of the unit, so installers can adapt closing strength to the specific door size or cabinet layout on site.

Key Salice Silentia Hinge Details For Pros

• This 1-1/4 inch overlay hinge is intended for face-frame cabinets, so it supports common overlay layouts where doors cover more of the frame and helps standardize door positioning across a project.
• The hinge provides a 106 degree opening angle, which offers wide door travel for access while keeping motion within a predictable arc that suits most residential and light commercial cabinet configurations.
• An 11 mm (7/16 inch) cup depth on all hinges in this line gives a consistent boring depth, helping drilling setups stay repeatable from door to door and simplifying hinge cup machining.
• The integrated soft close mechanism is built into the hinge, so there is no separate closer at the cabinet side, which keeps hardware concealed and reduces extra layout steps around additional components.
• The soft-closing strength can be changed by deactivating the decelerating mechanism using the activation switch on the front of the unit, allowing adjustment when doors are heavier or when a faster close is preferred.
• Nickel plated steel construction provides a metal hinge body with a nickel plated finish, supporting a uniform appearance with other nickel-toned cabinet hardware in the same installation.

Screw-On Cup Hinge Mounting And Drilling Range

This screw-on cabinet hinge uses a screw-on cup connection, so the hinge cup fastens directly to the door with screws, supporting straightforward mounting to prepared cup holes. The product is defined as a face-frame concealed hinge, which suits face-frame cabinet construction where a hidden hinge is preferred. The drilling distance on the door for this hinge can range from 2.5 mm to 6.0 mm (3/32 inch to 1/4 inch), giving flexibility in locating the hinge cup relative to the door edge so layouts can match existing boring patterns or design preferences. That drilling range applies across doors in the Salice Series CU Silentia line, which helps standardize jig setups when several hinges from the line are used on the same job.

Using This CUP3AD9R Hinge In Cabinet Projects

Where This 1-1/4 Overlay Hinge Fits Best

This Salice Series CU 1-1/4 inch overlay face-frame hinge is intended for cabinets that need a larger overlay on the face frame, so it supports layouts where the door covers more of the frame for a more continuous front. As a concealed cabinet hinge, it mounts inside the cabinet and door, which hides the hardware and keeps the focus on the cabinet fronts in finished kitchens, baths, or built-ins. The 106 degree opening angle gives enough door swing for access to shelves while staying within limits that suit adjacent cabinets in typical runs, helping reduce interference with nearby doors or walls. Because the cup depth is 11 mm (7/16 inch) for all hinges in the line, door machining for this model aligns with the rest of the Salice Series CU hinges, which is useful when combining different overlays or hinge types in the same project.

How 3 Cam And Soft Close Support Consistent Results

The hinge is described as a 3 cam adjustment hinge, indicating three cam-based adjustments that help refine door position once the hinge is mounted, so small shifts can be made without reboring or repositioning the cup. This cam adjustment capability supports alignment across multiple doors, which is especially useful on long cabinet runs where reveals must stay even. The integrated soft close mechanism uses a decelerating mechanism on the hinge, slowing the last part of the door travel for more controlled closing in daily use. When needed, this decelerating mechanism can be easily deactivated via the activation switch on the front of the unit, so the same hinge can serve doors where softer or quicker closing is preferred. As a nickel plated steel hinge, the metal body with nickel plating ties visually with other nickel finished components in the project, which helps maintain a cohesive appearance in the cabinet interior and hardware layout.

Common Questions About Salice Series CU Silentia

Selecting This Hinge For Overlay Face Frames

The Salice Series CU Silentia hinge CUP3AD9R combines 1-1/4 inch overlay, 106 degree opening, and an 11 mm cup depth, so it suits face-frame cabinets that need a larger overlay with consistent boring. Its integrated soft close mechanism, adjustable through the front activation switch, and its 3 cam adjustment support precise door alignment and tailored closing behavior on site. For projects matching this overlay and drilling pattern, this hinge offers a concealed, nickel plated option that aligns with other concealed cabinet hardware in the same installation.
