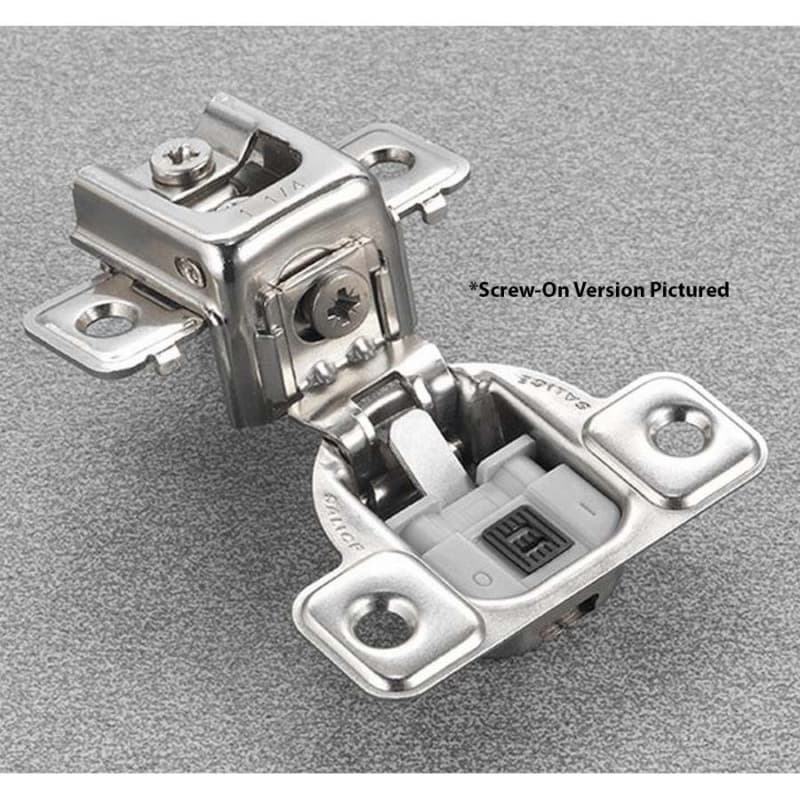

Salice Series CU hinge gives a 1-5/16 inch overlay on face-frame cabinets, so you can set door coverage to match this common layout without changing your existing construction method. The hinge is a concealed cabinet hinge, which keeps hardware hidden and lets doors close against the frame cleanly for a finished look on built projects. Its 106 degree opening angle lets doors swing wide enough for everyday access while staying short of over-travel that can stress the mounting area on typical face-frame installations. The hinge uses a screw-on design, so it fastens directly with screws to the cabinet and door for a solid mechanical connection that suits shop or jobsite work. The Salice Series CU Silentia Excentra design focuses on soft closing strength, giving you more control over the way doors close on different cabinet runs.
This 106 degree soft close hinge uses a screw-on mounting style, so it attaches to the cabinet and door with screws for a secure fit that supports repeated door use. The hinge has an 11 mm (7/16 inch) cup depth across the line, which defines the boring depth on the door and helps keep drilling consistent between doors during layout. Possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, so you can choose a boring distance within that window to suit overlay needs and edge conditions on the stile. The hinge is part of the Salice Silentia Excentra group, tying it to a family of soft-close components designed around controlled door deceleration on cabinet installations.
This Salice Series CU 1-5/16 inch overlay hinge is intended for face-frame cabinets, so it suits builds where the frame projects beyond the interior box and the door overlays the frame. As a concealed cabinet hinge, it sits inside the cabinet and door, keeping hinge arms out of sight so only the face-frame and door lines remain visible. The 11 mm cup depth works with standard cabinet door construction, helping maintain material behind the cup for strength while still allowing full hinge function. The possible drilling distance on the door from 2.5 mm to 6.0 mm gives flexibility when laying out bore positions relative to the door edge and overlay requirement. With a 106 degree opening, doors open far enough for access to interior storage while keeping the arc suitable for typical adjacent cabinet spacing in a run.
The 2 cam adjustment on this Silentia Excentra hinge gives additional control at the hinge, letting you move the door in small increments to bring reveals into line across multiple fronts. That 2 cam setup works together with the face-frame mounting to refine overlay and gap, which supports cleaner sightlines on banks of upper or base cabinets. The integrated soft close mechanism is part of the hinge body, so deceleration happens at the pivot as the door closes, helping reduce slamming forces on the face-frame and hinges over repeated use. Because the soft close mechanism can be deactivated using the clearly visible activation switch on the front of the unit, you can standardize on one hinge type while tailoring which doors use soft close. The 106 degree opening angle and the defined drilling distance range from 2.5 mm to 6.0 mm support repeatable boring and mounting, which helps keep installation time predictable on larger projects that share this hinge specification.
The Salice Series CU hinge is for face-frame cabinets with a 1-5/16 inch overlay, so it is suited to doors that cover the frame by that amount on each hinged edge.
The hinge offers a 106 degree opening angle, which lets doors open wide for access while staying within a range suited to typical cabinet runs.
The CUP3BD9 concealed hinge uses an 11 mm, or 7/16 inch, cup depth, so door boring follows that depth for consistent seating of the hinge cup.
The hinge supports a possible drilling distance on the door from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, allowing flexibility in bore placement.
The integrated soft close mechanism on this hinge can be deactivated using the activation switch, so the door can operate without decelerated closing when needed.
The 2 cam adjustment on the Salice Silentia Excentra hinge offers fine adjustment at the hinge, helping align door position and closing behavior across cabinet doors.
The Salice Series CU Silentia Excentra hinge with 1-5/16 inch overlay, 106 degree opening, and 11 mm cup depth gives a defined setup for face-frame cabinets where soft closing strength matters. With 2 cam adjustment and a clearly visible activation switch for the integrated soft close mechanism, it supports repeatable installation and consistent door behavior across projects. For cabinet work that benefits from concealed hardware and controllable door deceleration, this CUP3BD9 hinge offers a focused specification to match face-frame construction and overlay needs.
Sold In: 1 Each
