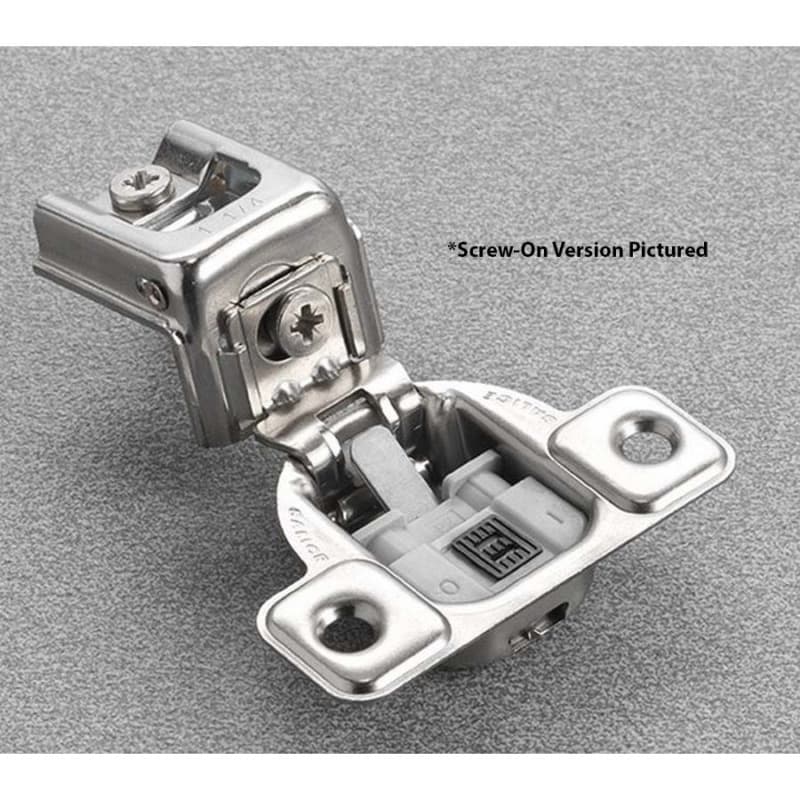

Salice Series CU soft close hinge is a concealed cabinet hinge designed for face-frame cabinets where a 1-5/16 inch overlay is required on the door. This overlay specification sets the door position, which matters when aligning with existing face-frame layouts in kitchens or shops. The hinge belongs to the Salice Silentia Excentra family, which defines the soft-closing function and adjustment concept for controlled door movement. The hinge offers a 106 degree opening angle, giving doors generous swing for access while still keeping them within typical cabinet clearances. An 11 mm, or 7/16 inch, cup depth is used across the line, so cup boring setups can stay consistent when drilling multiple doors. The product is classified as a concealed cabinet hinge, so it stays hidden when the door is closed, supporting clean-looking cabinet faces in both residential and commercial work.
This Salice CUR3BD9 face frame hinge is designed with a 1-5/16 inch overlay, so the layout directly supports doors that need to cover that amount of the face frame front. A cup depth of 11 mm, which matches 7/16 inch, defines the boring depth into the door, helping keep drilling depth consistent across all doors in a project. Possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, which provides flexibility in boring location to balance overlay, edge strength, and reveal. The integrated dowel configuration is part of this hinge version, creating a specific style of attachment into the bored cup area that suits repetitive production setups.
This Salice Series CU Silentia Excentra hinge is well suited to face-frame cabinet runs where a 1-5/16 inch overlay is the design standard, because that overlay defines how doors align visually across multiple openings. The 106 degree opening angle provides a wide but controlled swing, which is useful in kitchens, baths, or casework where adjacent doors or walls limit door travel. Being a concealed cabinet hinge, it allows the face of the cabinet to remain free of visible hinge hardware, supporting clean lines on traditional or contemporary installations. The 11 mm, or 7/16 inch, cup depth shared across the line means shops can standardize on one boring depth for this hinge family, reducing setup changes on drilling equipment. Nickel plated steel construction presents a neutral interior appearance that coordinates with typical cabinet interiors while providing a robust hinge surface for day-to-day use.
The 2 cam adjustment on this Salice CUR3BD9 hinge gives installers two separate cam points to tune the door position on the cabinet, which helps bring reveals into line without reboring or repositioning the mounting pattern. The integrated soft close mechanism built into the hinge supplies the controlled deceleration that slows the door as it nears the cabinet, supporting quieter closing behavior across a full bank of cabinets. Because the decelerating mechanism can be deactivated with the clearly visible activation switch on the front of the hinge, installers can respond to door weight or user preference by changing soft close behavior directly at the hinge. This manual control over soft closing strength is especially helpful when combining lighter and heavier doors in the same installation. The available drilling distance range of 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, offers flexibility during layout, supporting fine tuning of overlay and hinge performance while keeping a consistent boring standard. As part of the Salice Silentia hinge family, these design elements work together to support repeatable installations where hinge behavior and door alignment can be dialed in after the doors are mounted.
The Salice CUR3BD9 hinge is a concealed cabinet hinge for face-frame cabinets with a 1-5/16 inch overlay, supporting projects that use this specific overlay on the door.
The hinge opens to 106 degrees, giving doors a wide swing for access while still suiting typical cabinet runs where adjacent doors or walls limit movement.
The hinge uses an 11 mm, or 7/16 inch, cup depth, so door boring depth can be standardized across all hinges in this Silentia line for consistent installation.
The 2 cam adjustable cabinet hinge provides two cam points that allow fine door positioning on the cabinet, helping correct small misalignments after mounting.
The Salice Series CU hinge has an integrated soft close mechanism that can be deactivated using the activation switch on the front, altering door deceleration as needed.
The hinge supports a drilling distance from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, giving flexibility in cup location while meeting the overlay requirement.
The Salice Series CU soft close hinge with 1-5/16 inch overlay, 106 degree opening, and 11 mm cup depth provides a defined set of working dimensions for face-frame cabinets. The 2 cam adjustment, integrated soft close mechanism, and front-mounted deactivation switch support practical on-site tuning of both door position and closing behavior. Choosing this nickel plated concealed cabinet hinge aligns the project with a consistent boring standard and a controllable Silentia soft closing system across multiple doors.
Sold In: 1 Each
