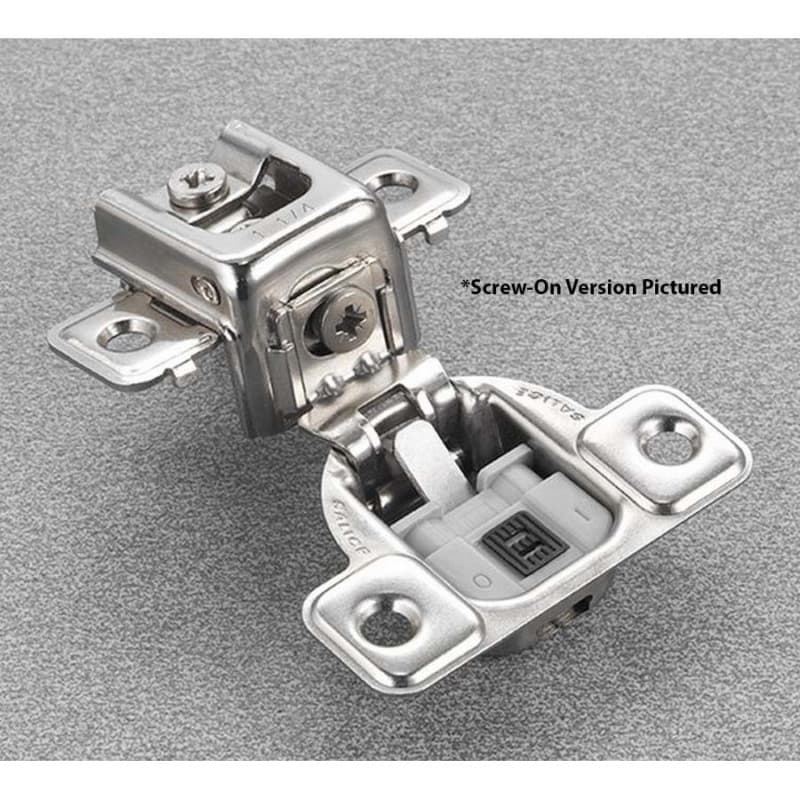

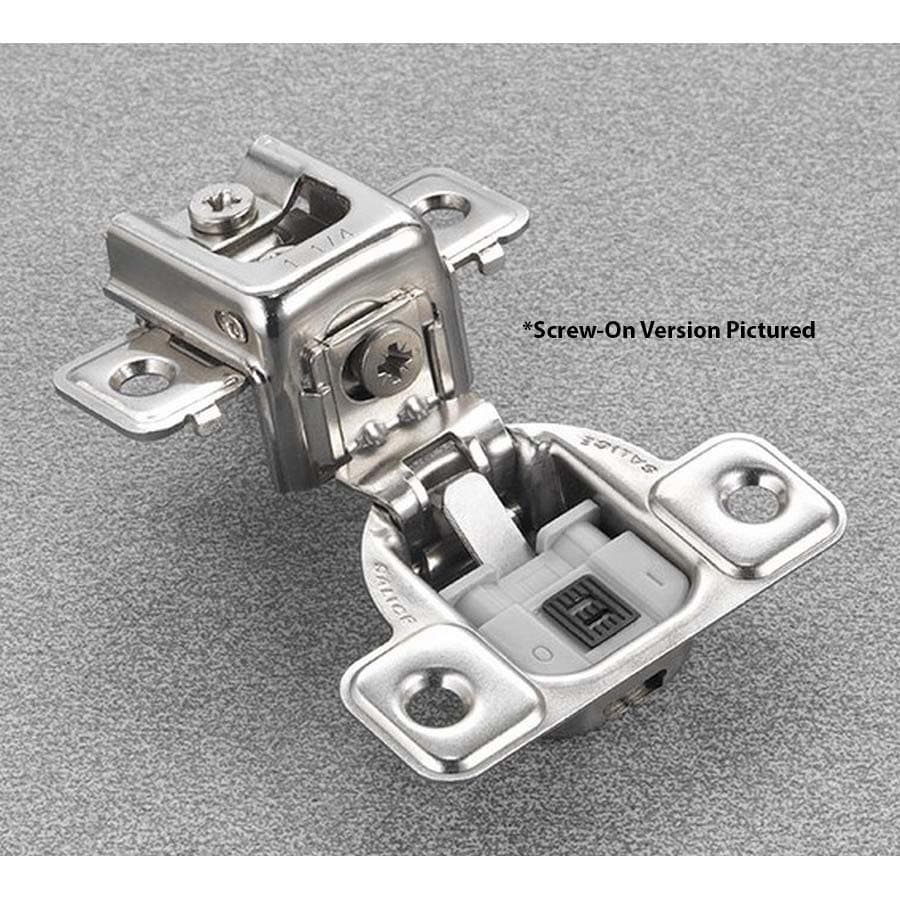

Salice Series CU 3 Cam Soft-Close Silentia 1-5/16" Overlay Face-Frame Hinges Nickel, 106° Screw-On - CUP3BD9R

Salice Series CU Silentia Hinge For Face Frames

Salice Series CU Silentia hinge is a concealed cabinet hinge designed for face-frame applications where a 1-5/16 inch overlay is needed, so it supports common residential and commercial cabinet layouts using that overlay standard. This hinge belongs to the concealed face frame hinge category, which keeps hardware hidden when the door is closed, giving projects a clean look while maintaining full hinge function. The hinge is a soft-close model with a decelerating mechanism on the hinge, so doors slow down before closing and reduce impact on the cabinet. The integrated soft-close mechanism can be easily deactivated via the activation switch clearly visible on the front of the unit, allowing the same hinge style to serve doors where a different closing strength is desired. The hinge offers a 106 degree opening, giving wide access into the cabinet interior while staying within typical opening ranges for casework.

Key Salice CU Hinge Details For Projects

• This 1-5/16 inch overlay hinge is specified for face-frame cabinets, so it aligns with layouts built around that overlay dimension in kitchen, bath, or shop projects.
• The hinge uses a concealed design in the concealed cabinet hinge class, so the mechanism stays out of sight when the door is shut and preserves a clean door and frame appearance.
• A decelerating soft-close mechanism is built directly into the hinge, so the door slows before contact and helps reduce noise and wear at the cabinet front.
• The integrated soft close mechanism can be deactivated using the clearly visible activation switch on the front, so installers can quickly tune or disable soft close on individual doors.
• The hinge provides a 106 degree opening angle, so doors open wide for access while remaining within a controlled swing range around adjacent walls or cabinets.
• An 11 mm, or 7/16 inch, cup depth is specified for all hinges in this line, so cup boring setups can stay consistent from door to door across a run.

Screw-On Mounting And Door Drilling Range

This Salice America hinge is described as a screw-on model, so it mounts to the door and face-frame using conventional screw fastening methods familiar to most cabinet installers. Possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, so boring jigs can be set within that window to match door edge reveals and overlays. This drilling distance flexibility supports aligning the door position while still using the same hinge type across different cabinet widths in a job. As part of the Salice Series CU Silentia family, the hinge keeps boring depths and overall geometry coordinated within the line, supporting streamlined setup when several hinges from the same series are used together.

Using The CUP3BD9R Hinge In Real Work

Where The CUP3BD9R Hinge Fits Best

This hinge is identified by manufacturer part number CUP3BD9R and is part of the Salice Series CU Silentia range, so it slots into projects that already rely on Salice America concealed cabinet hinges. The 1-5/16 inch overlay specification directs it toward face-frame cabinets designed with that overlay in mind, so door sizing and layout can be coordinated to that figure. The hinge sits within the concealed face frame hinges category, so it suits installations where the frame is exposed and the hinge cup is bored into the door. Because all hinges in this line use an 11 mm, or 7/16 inch, cup depth, it supports consistent boring on production lines or in small shops that repeat the same door prep. The 106 degree opening angle supports cabinet interiors that need wider access than a minimal opening, while still keeping the swing manageable in tight runs.

How Adjustability And Soft Close Support Results

This Salice Series CU Silentia 3 cam adjustment hinge provides three cam points of adjustment, so installers can fine-tune door position after mounting to help align reveals across multiple doors. The soft-close decelerating mechanism is located on the hinge, so damping happens right at the pivot as the door closes, which helps protect both the face-frame and door edges from repeated heavy contact. The integrated soft close mechanism can be deactivated through the clearly visible activation switch on the front of the unit, so each door can be set to full soft close or a free-swing closing behavior depending on location. The specified 2.5 mm to 6.0 mm possible drilling distance on the door gives flexibility to place the cup relative to the edge, supporting different reveal strategies while staying within the hinge design envelope. The nickel plated steel finish provides a familiar cabinet-hardware appearance that coordinates with other nickel plated components on the project. As a concealed cabinet hinge from Salice America, it integrates into hardware schedules that call for hidden hinges with controlled motion and post-installation adjustability.

Buyer Questions About This Salice CU Hinge

Choose This Hinge For Overlay Face-Frame Projects

This Salice soft-close cabinet hinge combines 1-5/16 inch overlay coverage, concealed face-frame mounting, and a 106 degree opening, so it matches many modern cabinet layouts. The 3 cam adjustment and 2.5 mm to 6.0 mm drilling range support precise alignment across multiple doors. The integrated soft-close mechanism with an on-unit activation switch gives direct control of closing behavior at each hinge. Nickel plated steel construction and the consistent 11 mm cup depth fit smoothly into standard door-prep workflows. For projects built around Salice America concealed cabinet hinges, the CUP3BD9R part number clearly identifies this model for repeat ordering and coordinated hardware scheduling.
