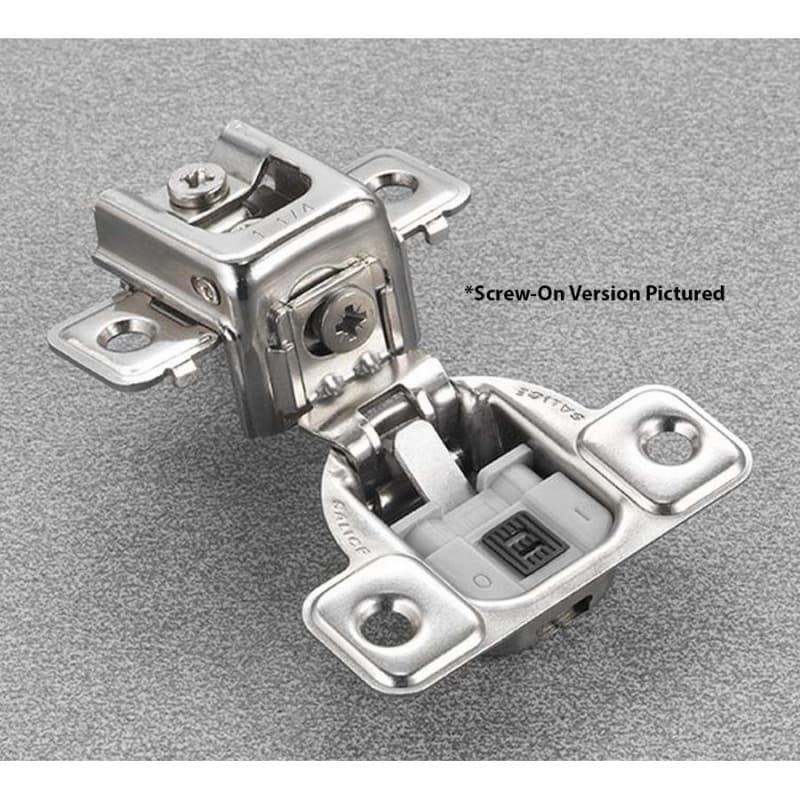

Salice Series CU 3 Cam Soft-Close Silentia 1-5/16" Overlay Face-Frame Hinges Nickel, 106° Dowel - CUR3BD9R
Description
Salice Series CU Silentia Hinge For Face Frames
Salice Series CU Silentia hinge gives cabinet builders a concealed soft-close option for face-frame applications where a 1-5/16 inch overlay is required, so the door position matches the layout needed on overlay face-frame kitchen or bath runs. This hinge is part of the Salice Series CU 3 cam adjustment family, so hinge alignment can be fine-tuned using the three cams to improve door reveal and consistency across a bank of doors. As a concealed cabinet hinge, it keeps hardware hidden when the door is closed, which supports a clean cabinet appearance in residential or commercial work. The hinge is designed as a face-frame hinge, so it works within that construction style rather than frameless layouts. Nickel plated steel construction provides a metal finish that matches other nickel-colored components in the hinge line.
Soft-Close Features That Support Cabinet Results
- The integrated soft close mechanism on the hinge decelerates the door at the end of travel, which helps the door close more gently in everyday use and reduces impact at the cabinet frame during normal operation.
- The decelerating mechanism on the hinge can be easily deactivated using the activation switch on the front of the unit, so installers can adjust soft-close strength when conditions call for less resistance or different closing behavior.
- Salice Series CU Silentia hinges are described as perfect when a different soft closing strength is desired, which helps shops adapt to various door sizes or customer preferences using the same hinge family.
- The hinge provides a 106 degree opening, which lets doors swing past a standard right angle for better access to the cabinet interior while still maintaining control over the opening arc in typical installations.
Face-Frame Mounting And Adjustment Details
This 1-5/16 inch overlay face-frame hinge is designed as part of a concealed face frame hinges category, so it supports face-frame cabinet construction where the door overlays the frame by that specified amount. The hinge uses a dowel configuration, identified in the description as a 106 degree dowel version, so it fits layouts that are drilled for dowel-style hinge cups. An 11 mm, or 7/16 inch, cup depth is used across all hinges in this line, which guides door boring setups on the drill press or line boring machine. The possible drilling distance on the door is specified as 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, so that distance range informs where the cup is bored from the edge of the door.
Using This CUR3BD9R Hinge In Cabinet Projects
Where This 1-5/16 Inch Overlay Hinge Fits
This hinge is described as a 1-5/16 inch overlay face-frame hinge, so it suits door layouts that need that overlay dimension on a face-frame cabinet. Being part of the concealed cabinet hinges product class, it installs so that most of the hardware is hidden once the door is closed, which supports cleaner finished elevations. The 106 degree cabinet hinge opening angle lets the door swing open wider than 90 degrees, which helps users reach into the cabinet without the door edge restricting movement as quickly. The nickel plated steel finish coordinates with other nickel plated concealed hinge components, which keeps visible hinge parts consistent when doors are open on a run of cabinets.
Adjustment Range For Repeatable Door Alignment
This Salice 3 cam adjustment hinge incorporates three cams, which provide multiple adjustment points to fine-tune door position after mounting. That three-cam setup helps installers dial in reveals between doors and along the face frame without relocating the hinge cup. The integrated soft close mechanism can be deactivated with the front activation switch, which allows installers to adapt the closing behavior on individual doors while using the same hinge model. The stated possible drilling distance on the door of 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, defines a workable range for cup location from the door edge that supports proper overlay and function. The consistent 11 mm, or 7/16 inch, cup depth across the line keeps boring depth settings the same from hinge to hinge, which saves setup time when running multiple doors.
Common Questions About The CUR3BD9R Hinge
What type of cabinet construction is this hinge for?
The hinge is a face-frame hinge in the concealed face frame hinges category, so it is used on cabinets built with a face frame rather than frameless cabinet boxes.
How far does the Salice Series CU Silentia hinge open?
The hinge has a 106 degree opening, which allows the door to swing past 90 degrees for improved access to cabinet interiors during regular use.
What overlay does the CUR3BD9R hinge provide on face frames?
The hinge is described as a 1-5/16 inch overlay face-frame hinge, so door sizing and positioning follow that overlay dimension on the face frame.
How deep should the hinge cup be bored in the door?
The hinge uses an 11 mm, or 7/16 inch, cup depth, so door boring is set to that depth to match all hinges in this line.
Can the soft-close action on this hinge be turned off?
The hinge has an integrated soft close mechanism that can be deactivated using the activation switch clearly visible on the front of the unit.
What drilling distance range is supported on the door?
The possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, guiding cup location from the door edge.
Selecting This Salice Series CU Silentia Hinge
The Salice Series CU Silentia hinge with 1-5/16 inch overlay, 3 cam adjustment, and integrated soft-close mechanism provides a concealed cabinet hinge option tailored to face-frame construction. Use the 106 degree opening, 11 mm cup depth, and defined drilling distance range to align this CUR3BD9R hinge with cabinet door sizing and boring patterns on upcoming jobs.
