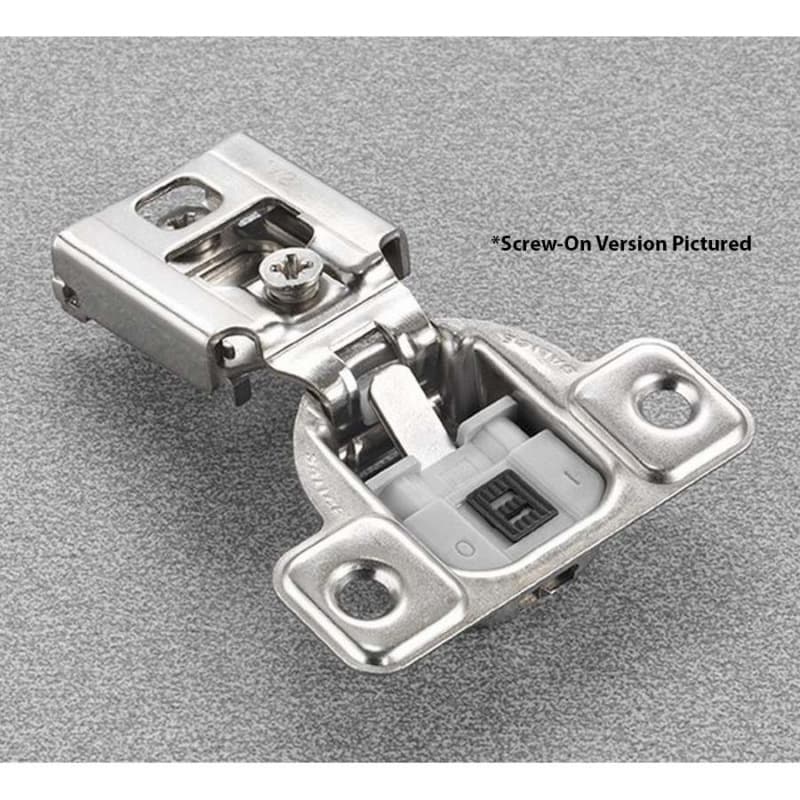

Salice Series CU soft close hinge is a concealed cabinet hinge from Salice America designed for 3/4 inch overlay face-frame doors, so it delivers a clean exterior while handling typical kitchen and shop layouts. This Silentia Excentra hinge belongs to the concealed face frame hinges product class, keeping hardware hidden and giving doors a smooth action during daily use. The integrated soft close mechanism on the hinge controls door deceleration, helping doors settle gently against face frames instead of slamming. The soft closing strength on this hinge line can be different from other Silentia hinges, which helps fine-tune door movement where a specific closing feel is important. The hinge opens to 106 degrees, providing wide access into the cabinet interior for storage and installation tasks while keeping the door clear of most interior hardware in typical face-frame applications.
This Salice Series CU 3/4 inch overlay hinge uses a screw-on mounting style, so it fastens directly to the door and face frame using screws for a secure connection that suits shop or onsite installation workflows. The 2 cam adjustment system on this hinge allows fine tuning of door position after the hinge is mounted, helping adjust reveals and alignment without shifting the cabinet or reworking the bore pattern. The stated possible drilling distance of 2.5 mm to 6.0 mm on the door provides flexibility in cup location, which supports consistent overlay planning across multiple cabinet runs. The 106 degree opening angle allows the door to swing well clear of the face frame, supporting easier access during hinge adjustment sessions and hardware changes inside the cabinet.
This Salice Series CU Silentia Excentra hinge is intended for use on face-frame cabinets with a 3/4 inch overlay, so it suits projects where the door needs to cover most of the frame stile while still revealing a consistent edge. In a typical kitchen or shop cabinet run, this overlay dimension helps doors line up cleanly from unit to unit, giving a uniform visual line when viewed across multiple openings. Because the hinge is a concealed cabinet hinge, it sits inside the case and behind the door, allowing the face of the door and frame to remain free of visible hinge barrels that might interrupt the finished look. The 106 degree opening angle supports everyday access to stored items, keeping doors out of the way of hands and containers during loading and unloading while still controlling the door swing to a predictable arc.
The nickel plated steel construction supports repeated motion on cabinet doors in environments where hinges are cycled many times per day, such as kitchens or work areas, by giving the moving parts a robust steel base with a protective nickel surface. This hinge shares an 11 mm, or 7/16 inch, cup depth with all hinges in the same Silentia line, which simplifies boring operations across doors by allowing a single depth setting on the boring machine for an entire project. With a possible drilling distance on the door of 2.5 mm to 6.0 mm, installers can select a position that supports the desired overlay within the system range, helping maintain both aesthetics and functional clearances at corners and end panels.
The 2 cam adjustment feature on this hinge gives two points of cam-based movement, so door position can be shifted in small increments without loosening the basic mounting and without changing bore locations. On a multi-door cabinet run, those cams help correct minor layout variations in the case or face frame by letting the door be moved relative to the frame until reveals line up, which reduces rework and preserves production drilling patterns. The integrated soft close mechanism on the hinge adds a decelerating function near the end of the closing cycle, so the door slows smoothly toward the frame and reduces impact at contact, which is useful on tall or heavy doors that could otherwise bang against the face frame.
The soft close mechanism can be easily deactivated using the activation switch that is clearly visible on the front of the unit, allowing the same hinge model to be used in locations where a softer or standard close is desired and in areas where full soft closing is preferred. This flexibility is useful on large installations where some doors, such as those near corners or appliances, may benefit from a different closing strength while still matching the concealed hardware look across the project. Because the hinge is a screw-on style, the adjustment and soft close control remain serviceable with standard tools, supporting ongoing alignment or behavior changes throughout the life of the cabinet without altering the core hinge placement.
The Salice Series CU CUP34D9 hinge is described as a face-frame hinge, so it is intended for cabinets built with a face frame rather than frameless carcass construction.
The hinge is specified for 3/4 inch overlay, which positions the door to cover three-quarters of the face-frame stile width for consistent visual alignment in cabinet runs.
The CUP34D9 concealed cabinet hinge offers a 106 degree opening angle, giving wide door swing for access while keeping movement within a controlled arc.
The 2 cam adjustment on this hinge allows fine movement of the mounted door relative to the face frame, supporting precise reveals without relocating hinge bores.
The Salice Series CU Silentia Excentra hinge has an integrated soft close mechanism that can be deactivated using the activation switch on the front of the unit.
This nickel plated steel hinge uses an 11 mm, or 7/16 inch, cup depth and allows a drilling distance on the door from 2.5 mm to 6.0 mm.
The Salice Series CU Silentia Excentra CUP34D9 hinge from Wurth Baer Supply combines 3/4 inch overlay geometry, screw-on mounting, and 2 cam adjustment to support precise face-frame cabinet work. The integrated, switch-controlled soft close mechanism and 106 degree opening angle give control over door behavior while maintaining a concealed hinge look. For projects built around concealed face frame hinges with nickel plated steel construction and 11 mm cup depth boring, this hinge offers a consistent setup across doors and controlled motion suited to regular cabinet use.
Sold In: 1 Each
