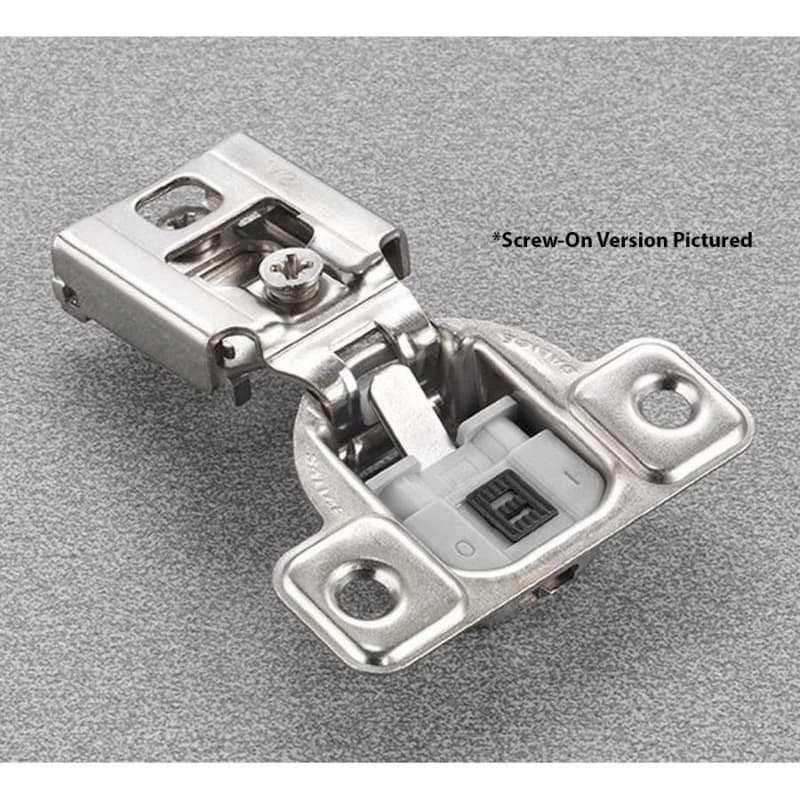

Salice Series CU soft-close hinge is a concealed cabinet hinge from Salice America designed as a 3/4 inch overlay face-frame hinge in nickel plated steel. The hinge belongs to the Silentia Excentra line, so it provides soft closing performance built directly into the hinge body. A decelerating mechanism on the hinge slows the closing motion, which helps the door settle against the frame instead of slamming. The hinge offers a 106 degree opening angle, giving doors generous swing for access to cabinet interiors on typical face-frame layouts. An 11 mm, or 7/16 inch, cup depth applies across this hinge line, so the bore depth remains consistent from door to door. The hinge uses a dowel-based connection to the door, tying into drilled holes for repeatable placement. As a concealed cabinet hinge, it hides within the cabinet geometry, leaving the exterior appearance clean while still supporting full overlay function on 3/4 inch face frames.
This Salice Series CU soft-close hinge uses a dowel connection at the cup side, so door preparation relies on boring the 11 mm deep cup and drilling for dowels to locate the hinge in the panel. The possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, giving flexibility in how close the cup sits to the door edge. That range supports different construction styles while keeping the same hinge body in use. As a 3/4 inch overlay face-frame hinge, it is aimed at doors laying over face frames by that overlay dimension, aligning door position with common frame builds. The two cam adjustment capability forms part of the hinge design, giving adjustment points to refine door alignment after mounting so hinge-side reveals can be brought into line.
The CUR34D9 concealed cabinet hinge sits within the Salice Series CU Silentia Excentra group, so it is directed toward cabinet projects calling for soft closing action on 3/4 inch overlay face-frame doors. Its 106 degree opening angle offers enough swing for many base and wall cabinet applications while keeping the door controlled during movement. Because it is a concealed face-frame hinge, the hardware remains hidden when the door is closed, which suits installations where the cabinet exterior needs a clean look. The 11 mm, or 7/16 inch, cup depth remains uniform across the line, giving consistent boring setups from cabinet to cabinet. With a door drilling distance between 2.5 mm and 6.0 mm, the hinge adapts to different door edge layouts while retaining the same hinge specification on the job. Nickel plated steel construction ties the hinge body to a metal structure and finish suited to concealed cabinet hinge roles.
This Silentia Excentra 2 cam adjustment hinge brings two cam points into the layout, and that configuration supports detailed door positioning once the hinges sit on the cabinet. The cams provide adjustment potential, so doors can be shifted incrementally to refine overlay and reveal relationships across a run of frames. The integrated soft close mechanism resides inside the hinge, meaning the decelerating function operates right at the pivot with no separate damping units. An activation switch clearly visible on the front of the unit allows that mechanism to be deactivated, changing the soft closing strength when a different door behavior is desired. This ability to switch the decelerating mechanism on or off at the hinge helps tailor door motion across various cabinet locations using the same CUR34D9 part number. Wurth Baer Supply lists this hinge with packing of 300 per box and availability in both broken and full box quantities.
The CUR34D9 model is a Salice Series CU Silentia Excentra concealed cabinet hinge designed as a 3/4 inch overlay face-frame hinge, so it supports full overlay doors on face-frame style cabinetry.
This Salice Series CU soft-close hinge provides a 106 degree opening angle, which gives doors generous swing for everyday cabinet access while keeping movement within typical face-frame space limits.
The CUR34D9 concealed cabinet hinge uses an 11 mm, or 7/16 inch, cup depth, so door boring depth stays consistent across hinges in this line for streamlined drilling setups.
This Salice hinge supports a drilling distance on the door from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, which gives flexibility for positioning the cup relative to the door edge.
The integrated soft close mechanism on this Silentia Excentra hinge can be deactivated using the activation switch on the front of the unit, allowing a different soft closing strength when needed.
The hinge is made from nickel plated steel, so it combines a steel base with a nickel finish suited to concealed cabinet hinge applications in woodworking environments.
The Salice Series CU soft-close hinge in the CUR34D9 configuration pairs a 3/4 inch overlay face-frame layout with Silentia soft closing and 2 cam adjustment, serving concealed cabinet hinge roles on face-frame projects. Its 106 degree opening angle, 11 mm cup depth, and 2.5 mm to 6.0 mm drilling distance range equip the hinge for a variety of door geometries while holding to one consistent hinge specification. With dowel-based door mounting and an integrated soft close mechanism that can be deactivated at the hinge, this nickel plated steel hinge offers a clear set of working characteristics for cabinet installations supplied by Wurth Baer Supply.
Sold In: 1 Each
