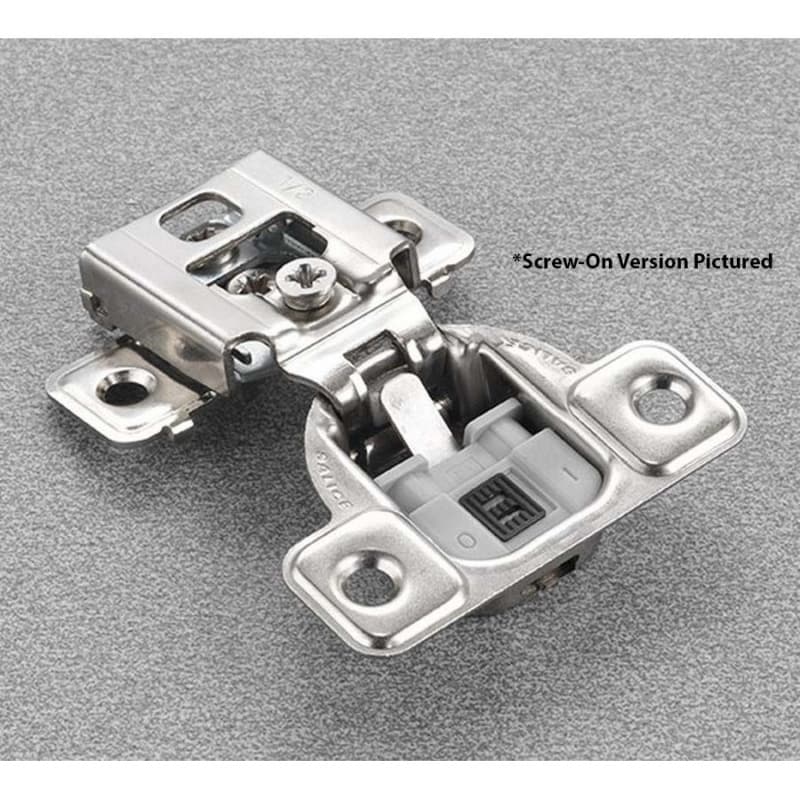

Salice Series CU 3 Cam Soft-Close Silentia 3/4" Overlay Face-Frame Hinges Nickel, 106° Screw-On - CUP34D9R
Description
Salice Series CU Silentia Hinge For 3/4 Inch Overlay
Salice Series CU Silentia hinge is a concealed cabinet hinge designed for 3/4 inch overlay face-frame doors, so it lets you keep a clean exterior line on face-frame cabinets while controlling overlay precisely. As a concealed hinge in the Salice America line, it fits cabinet projects where the hardware needs to stay out of sight yet work consistently over time. The hinge belongs to the concealed cabinet hinges class, so it matches typical concealed layouts installers use in kitchen or shop-built cabinetry. Its 106 degree opening angle allows doors to swing wide enough for comfortable access to cabinet interiors without over-rotating into nearby doors or walls. The 11 mm, or 7/16 inch, cup depth keeps boring depth predictable across the Series CU line, helping fabricators standardize drilling operations.
Key Soft-Close And Adjustment Details For Pros
- The integrated soft close mechanism on the hinge controls door deceleration, which helps doors close smoothly and reduces impact at the frame during everyday use.
- A decelerating mechanism is built directly on the hinge and can be deactivated with an activation switch, so installers can tailor closing strength to door size or customer preference on site.
- The 3 cam adjustment hinge design gives three-axis adjustment points, letting installers fine-tune door position for consistent reveals and alignment after the doors are hung.
- The 3/4 inch overlay face-frame application targets common cabinet layouts, so hinge placement and overlay planning line up with standard face-frame construction methods.
- The nickel plated steel finish provides a hard metal surface, which supports long-term hinge function inside cabinet interiors that see routine opening and closing.
Screw-On Mounting And Boring Range Details
The 3 cam soft close hinge uses a screw-on mounting style, so installers fasten the hinge with screws directly to the door and face frame for a secure mechanical connection. The cup depth of 11 mm, or 7/16 inch, is consistent across all hinges in the Series CU line, which allows boring tools and CNC programs to stay the same from job to job. The possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, giving flexibility when setting the cup setback to fine-tune overlay and edge conditions on different doors.
Using This CUP34D9R Hinge In Daily Cabinet Work
Where This 3/4 Inch Overlay Hinge Fits Best
This Salice America hinge is specified for 3/4 inch overlay face-frame cabinet doors, so it suits kitchens, baths, and built-ins where the door overlays the frame by that amount. As part of the concealed cabinet hinges category, it fits projects that call for hidden hardware on residential or commercial casework. The 106 degree opening angle gives enough swing to load and unload cabinets comfortably while keeping the door travel controlled in tighter runs. Because the possible drilling distance on the door spans 2.5 mm to 6.0 mm, fabricators can adjust boring positions within that range to adapt to stile widths and edge profiles while still staying within the hinge design window.
How 3 Cam And Soft Close Support Clean Results
The 3 cam adjustment design lets installers dial in door position after mounting, so slight shifts in cabinet squareness or drilling can be corrected without reboring. The integrated soft close mechanism slows the door near the end of travel, reducing slamming and helping hinges and frames experience less impact over repeated use. When a different soft closing strength is desired, the decelerating mechanism on the hinge can be easily deactivated using the activation switch clearly visible on the front of the unit, which allows one hinge type to serve doors of different sizes or weights within a run. The nickel plated steel construction provides a robust hinge body, supporting these adjustments and motions during regular cabinet service.
Common Questions About CUP34D9R Soft Close Hinge
What type of hinge is the CUP34D9R?
The CUP34D9R is a Salice Series CU Silentia concealed cabinet hinge for 3/4 inch overlay face-frame doors, which keeps hardware hidden while setting a predictable overlay relationship.
How far does this Salice hinge open?
The hinge has a 106 degree opening angle, allowing the door to swing wide for cabinet access while keeping movement controlled near adjacent doors or walls.
What is the cup depth on this hinge?
The hinge uses an 11 mm, or 7/16 inch, cup depth across the Series CU line, which helps standardize boring setups on drills or CNC machines.
Can the soft close function be turned off?
The hinge has an integrated soft close mechanism with a decelerating device that can be deactivated using the activation switch on the front, letting installers change closing strength.
What drilling distance range does this hinge support?
The possible drilling distance on the door is 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, which gives flexibility in setting cup setback on different door designs.
What material and finish does this hinge use?
The hinge is nickel plated steel, providing a hard metal body and plated finish suited to concealed use inside cabinet cases.
Selecting This Hinge For Face-Frame Projects
This Salice Series CU Silentia hinge with 3 cam adjustment, 3/4 inch overlay face-frame design, and 106 degree opening aligns with many face-frame cabinet runs that need concealed soft close performance. The 11 mm cup depth, 2.5 mm to 6.0 mm drilling distance range, and screw-on mounting give fabricators and installers predictable boring and fastening points across multiple jobs. For cabinet work through Wurth Baer Supply, this CUP34D9R hinge supports consistent overlay, clean alignment, and adjustable soft closing on face-frame doors.
