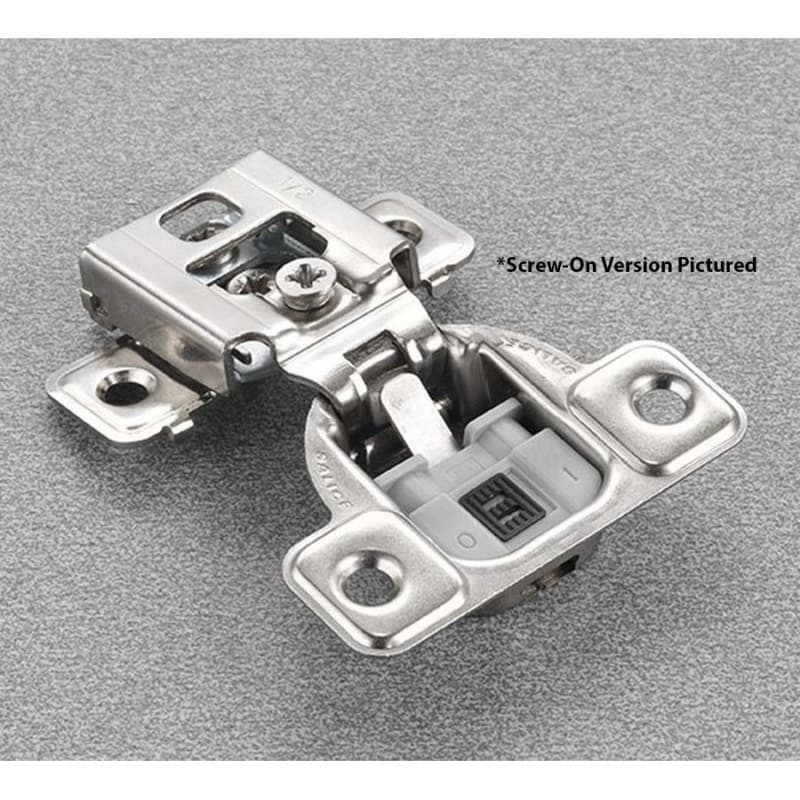

Salice Series CU 3 Cam Soft-Close Silentia 3/4" Overlay Face-Frame Hinges Nickel, 106° Dowel - CUR34D9R
Description
Salice Series CU Silentia Hinge For 3/4 Inch Overlay
Salice Series CU Silentia hinge gives face-frame cabinet doors 3/4 inch overlay with a concealed hinge layout, so the hinge stays out of sight while setting the door reveal. This 3 cam adjustable hinge allows three-axis adjustment at the hinge, helping dial in door alignment without re-drilling. The integrated soft-close mechanism on the hinge decelerates the door at the end of travel, which helps reduce door impact on the frame. The soft-close mechanism can be easily deactivated using the activation switch clearly visible on the front of the unit, so the close speed can be tuned per door. The hinge offers 106 degree opening, giving the door a wide swing for everyday cabinet access. An 11 mm, or 7/16 inch, cup depth keeps the hinge cup consistent with the line, aiding layout across multiple doors.
Key Salice CUR34D9R Details For Cabinet Work
- This 3 cam adjustment hinge provides three separate adjustment points, which helps a cabinet installer correct door reveal, height, and side-to-side position directly at the hinge.
- The integrated soft-close mechanism on the hinge slows the door during closing, which helps limit slamming forces on the face frame during daily use.
- An activation switch on the front of the hinge allows the soft close to be deactivated, giving the installer control over closing strength when doors vary in size or weight.
- The 106 degree opening angle lets the door open past a right angle, which helps keep door edges clear of adjacent fronts during normal access.
- The 11 mm, or 7/16 inch, cup depth matches all hinges in this line, which simplifies boring depth setup when running multiple doors on the same project.
- The hinge is made of nickel plated steel, which provides a hard metal body with a plated finish suited to concealed cabinet applications.
Face Frame Mounting And Door Boring Parameters
This concealed face-frame hinge is designed for 3/4 inch overlay on a face-frame cabinet, so the door edge overlaps the face frame by that amount. Possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, which gives flexibility in setting the cup position from the door edge. That drilling distance range supports fine-tuning overlay and reveals while still staying within the hinge design window. The 11 mm, or 7/16 inch, cup depth works with standard cabinet door thickness that accepts this boring depth, so boring tools can be set once for the job. The hinge uses a dowel connection style, which suits production settings that use boring machines for hinge cup and dowel holes.
Using This Soft-Close Face Frame Hinge In The Shop
Where This 3/4 Inch Overlay Hinge Fits Best
This hinge belongs to the Concealed Cabinet Hinges class in the Hinges | Concealed Face Frame Hinges category, so it is aimed at face-frame cabinet construction where hidden hardware is preferred. The 3/4 inch overlay configuration matches cabinet layouts that call for a three-quarter overlay door on the face frame, giving a consistent front appearance. Because all hinges in the line share the 11 mm, or 7/16 inch, cup depth, the same boring program can be run across doors that use other Salice Series CU Silentia models. The dowel version ties into line-boring and insertion equipment, aligning the hinge body firmly in the door for repeatable placement. The nickel plated steel hinge finish coordinates with other nickel finished concealed hinges, which is useful when using multiple hinge types in the same project.
How Adjustment And Soft Close Support Repeatable Results
The 3 cam adjustment built into this hinge lets installers use the hinge cams to refine door position after the door is mounted, saving time compared with re-boring or re-hanging a door. Soft-close is integrated into the hinge body, so no separate device is required on the cabinet, which keeps the interior clear for storage. Because the decelerating mechanism can be easily deactivated by the clearly visible activation switch, doors that are small, light, or paired on a narrow cabinet can have closing strength reduced as needed. This ability to change soft-close behavior at the hinge supports jobs where door sizes vary but hardware consistency is preferred. The 106 degree opening angle also contributes to day-to-day function by allowing a wider swing before the hinge checks the door, which is valuable when aligning doors next to each other on a run of cabinets.
Common Salice Series CU CUR34D9R Hinge Questions
What type of cabinet application is this CUR34D9R hinge for?
The CUR34D9R hinge is a concealed face-frame hinge for 3/4 inch overlay doors, which suits face-frame cabinet builds needing that specific overlay on the frame.
How does the 3 cam adjustment help during installation?
The 3 cam adjustment provides multiple adjustment points on the hinge, allowing door reveal and alignment to be tuned at the hardware instead of altering the cabinet or door.
What is the opening angle on this Salice Series CU Silentia hinge?
The hinge has a 106 degree opening, which gives the door a generous swing for access while still controlling the check point of the hinge motion.
How deep is the hinge cup for boring operations?
The hinge cup depth is 11 mm, or 7/16 inch, so boring equipment can be set precisely to that depth for consistent hinge seating in the door.
What door drilling distance range does this hinge support?
The hinge supports a door drilling distance from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, which offers flexibility in setting overlay and reveal.
How can the soft-close action be adjusted on this hinge?
The hinge uses an integrated decelerating mechanism that can be easily deactivated by the activation switch on the front, allowing control over soft-close strength.
Selecting This CUR34D9R Hinge For Your Next Run
This Salice Series CU Silentia 3 cam soft-close hinge from Wurth Baer Supply combines 3/4 inch overlay layout, 106 degree opening, and an adjustable soft-close mechanism in one concealed face-frame hinge. Use its 2.5 mm to 6.0 mm door drilling distance range, 11 mm cup depth, and visible activation switch to set up repeatable boring and dialing of soft-close behavior across a cabinet run.
