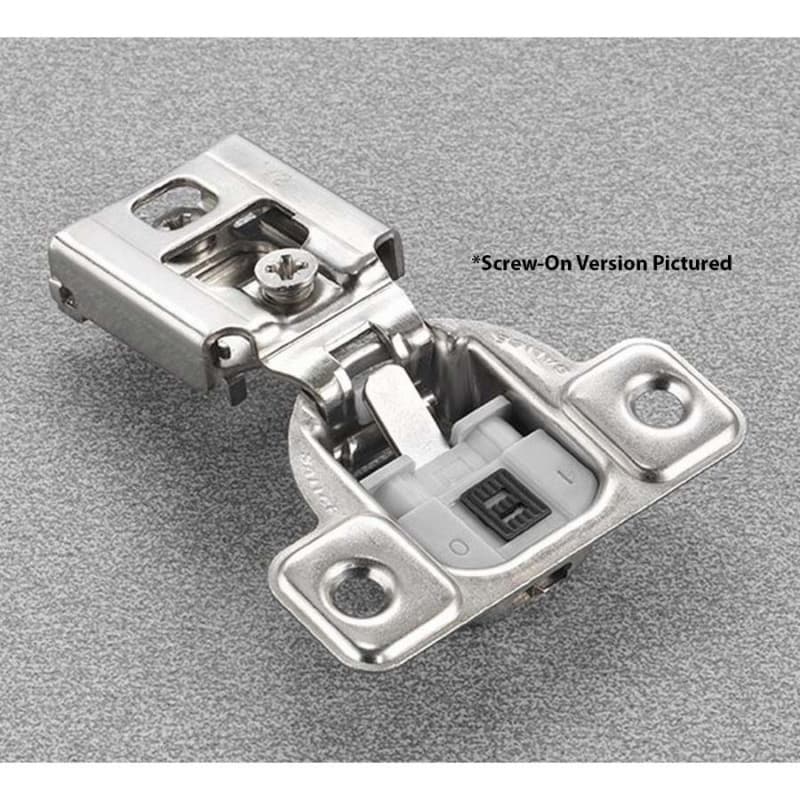

Salice Series CU soft close hinge gives a concealed face frame hinge option for 5/8 inch overlay cabinet doors, so doors cover the frame correctly for this overlay configuration. The hinge is part of the Salice Silentia line, so it provides soft closing action suited to this Silentia decelerating system. This hinge is described as perfect when a different soft closing strength is desired, so it supports applications where varied closing control is preferred. The integrated soft close mechanism can be easily deactivated by using the activation switch clearly visible on the front of the unit, so the closing behavior can be changed directly at the hinge as needs change. The hinge belongs to the concealed cabinet hinges product class, so it keeps hardware out of sight when the door is closed, supporting clean cabinet fronts.
The hinge is described as a face frame hinge, so it is intended for cabinets built with a front frame rather than frameless construction. The hinge is screw-on, so it attaches using screws during installation rather than press-in or other mounting formats. The possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, so the cup hole distance from the door edge can fall within this band when laying out hinge boring. The hinge is a concealed cabinet hinge, so once installed on the face frame and door, the hardware is hidden from view when the door is closed.
The Salice Series CU 5/8 inch overlay face frame hinge suits cabinet projects needing a 5/8 inch overlay layout on a face frame construction, so it fits designs calling for this door-to-frame coverage. The manufacturer part number CUP35D9 identifies this version within the Salice Silentia line, so it corresponds to this specific geometry and feature set when matching existing installations. The hinge opening of 106 degrees supports situations where the door needs to open beyond 90 degrees for better interior reach, so users gain more access without removing doors. The concealed cabinet hinge classification means the hinge is positioned so it is hidden when the door is closed, so these cabinets maintain a smooth front without exposed hinge knuckles. The 11 mm, or 7/16 inch, cup depth works with doors that can accept this boring depth, so material selection and door thickness can be planned around that value in a cabinet shop or on site.
The hinge uses a 2 cam adjustment layout, so door alignment can be influenced through the motion of these two cams when adjusting the hinge on the cabinet. This 2 cam arrangement is part of the Salice Series CU Silentia Excentra design, so the adjustment response follows this specific Salice configuration from hinge to hinge. The integrated soft close mechanism is built into the hinge, so no separate damper piece is required for the soft closing function in this design. That integrated soft close mechanism can be deactivated by an activation switch clearly visible on the front of the unit, so installers and users can move between soft close and non-soft close behavior at the hinge location for doors that need different closing characteristics. The stated possible drilling distance on the door of 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, defines the range used when positioning the hinge cup hole from the door edge, so repeatable boring setups can be configured within those distances for consistent mounting across multiple doors.
The hinge is described as a face frame hinge, so it is used on cabinets that have a front frame rather than frameless cabinet sides.
The hinge is specified for 5/8 inch overlay, so the cabinet door covers the face frame by that amount when aligned to this overlay design.
The hinge has a 106 degree opening, so doors swing beyond a right angle for improved access to cabinet interiors.
The hinge has an integrated soft close mechanism that can be deactivated by using the activation switch clearly visible on the front of the unit.
The hinge line uses an 11 mm, or 7/16 inch, cup depth, so door boring needs to reach that depth in the hinge cup area.
The hinge supports a possible drilling distance on the door from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, for positioning the cup hole.
The Salice Series CU soft close hinge from Wurth Baer Supply combines 5/8 inch overlay, concealed face frame mounting, and a 106 degree opening, so it aligns well with cabinet work that follows these layout dimensions. The 2 cam adjustment and integrated, switch-controlled soft close mechanism give direct control of door alignment and closing behavior at the hinge. For projects using an 11 mm cup depth and a drilling distance between 2.5 mm and 6.0 mm, this nickel plated hinge offers a defined geometry to base boring and mounting setups around.
Sold In: 1 Each
