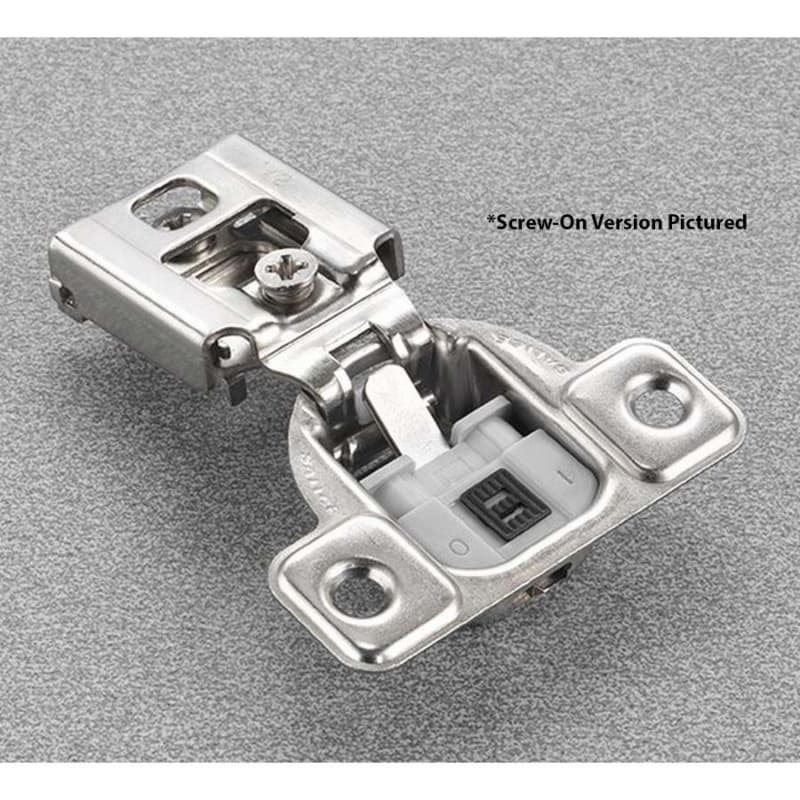

Salice Series CU 2 Cam Soft-Close Silentia 5/8 Overlay Face-Frame Hinges provide a concealed cabinet hinge solution that keeps hardware out of sight, which helps built-in cabinetry maintain a clean, uninterrupted appearance. The face-frame configuration supports cabinets built with a frame, matching common North American construction so the hinge style aligns with typical shop workflows. The hinge design belongs to the Concealed Cabinet Hinges class, so the door pivots smoothly from a hidden position and supports precise alignment work. Branding from Salice America signals that this hinge fits within the broader Salice system approach, which can matter when matching components across a project line. The CUR35D9 manufacturer part number identifies this specific 5/8 overlay, 2 cam, dowel-mount version, which helps keep reorders and job documentation consistent when multiple hinge models are present on the same job.
The hinge uses a dowel mounting format noted in the description, which means the cup side is set to press into drilled holes on the door during installation. An 11 mm, or 7/16 inch, cup depth applies to all hinges in this line, so cup boring depth can remain consistent across doors using this series, simplifying drilling setup. The possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, which gives cabinet builders flexibility when placing the cup relative to the door edge. This drilling distance range helps the overlay hinge geometry work correctly, so the door overlays the face-frame as designed and avoids binding at the frame or adjacent doors.
This hinge is categorized as a Concealed Face Frame Hinge, so it is intended for cabinet doors mounted to framed cabinet boxes rather than frameless cases. The 5/8 overlay detail ties it directly to door layouts that extend 5/8 inch past the face-frame opening, which is a common overlay choice in many kitchen and built-in applications. A 106 degree opening angle allows the door to swing to a wide, usable position, which supports everyday access to cabinet interiors without requiring extreme hardware motion. The nickel plated steel material suits indoor cabinet environments where metal hardware sits protected inside the case, supporting routine residential or commercial cabinetry uses. Because the hinge belongs to the Salice Series CU Silentia Excentra family, it fits projects that standardize on this line for consistent function and appearance across multiple door sizes.
The integrated soft close mechanism on the hinge provides a decelerating action as the door reaches the closed position, so motion is slowed rather than allowing the door to slam against the face-frame. The ability to deactivate this soft-closing mechanism at the hinge with the visible activation switch lets installers tune closing behavior by location, which is useful where lighter or smaller doors respond differently to the same decelerating force. The 2 cam adjustable hinge layout offers two separate cam points that installers can use to refine alignment, which helps create consistent reveals between neighboring doors on a bank of face-frame cabinets. Maintaining correct cup depth at 11 mm, or 7/16 inch, keeps the hinge geometry within its intended range, which supports proper soft-close function and door swing along the designed pivot path. Using the specified drilling distance window of 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, helps the overlay and frame clearances work together, which reduces rework related to doors rubbing or sitting out of line.
The hinge is listed under Concealed Face Frame Hinges, so it is suited to cabinets built with a face-frame rather than frameless boxes, aligning with many North American cabinet constructions.
The Salice Series CU Silentia hinge is specified as a 5/8 inch overlay hinge, so it suits doors designed to overlap the face-frame by that amount around the cabinet opening.
The CUR35D9 hinge has a 106 degree opening, which lets the cabinet door swing wide enough for comfortable everyday access to the interior space.
The hinge uses an 11 mm, or 7/16 inch, cup depth for all hinges in the line, so cup bores should match this depth to support correct hinge seating and motion.
The hinge uses an integrated soft close mechanism that can be deactivated with an activation switch on the front, allowing adjustment to closing behavior at each door.
The hinge allows a possible drilling distance on the door from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, supporting flexible cup placement near the door edge.
The Salice Series CU 2 Cam Soft-Close Silentia 5/8 Overlay Face-Frame Hinges in nickel plated steel give cabinet builders a concealed hinge that aligns with face-frame construction, defined overlay, and dowel-mounted cups. The integrated soft-closing function, with a clear activation switch, provides on-site control over door motion, while the 2 cam adjustment supports precise reveal work. With defined cup depth and drilling distance ranges, this CUR35D9 hinge offers a structured mounting geometry that supports repeatable installation across multi-door cabinet runs.
Sold In: 1 Each
