Vionaro H89 Drawer Inset Front Panel Use

Vionaro H89 drawer inset front panel is a color-coordinated aluminum front panel profile in graphite, so the visible drawer side presents a consistent, modern look that matches the rest of the Grass Vionaro drawer system. The Cubist design with 90-degree angles creates a straight-edged geometry that aligns cleanly with contemporary casework, helping installers deliver squared fronts without curved transitions. The slimline 13mm, or 1/2 inch, side width keeps drawer sides visually narrow, which frees more apparent interior width while maintaining a sharp, minimal frame at the front. With a nominal 45-11/16 inch length, the panel suits wider drawer projects where a continuous profile is preferred. Being part of the Grass Vionaro drawer construction system, this front panel integrates into that platform, serving as the structural and visual front edge of the drawer box.

Key Front Panel Details For Cabinet Projects

• The color-coordinated aluminum front panel profile in graphite provides a matching appearance to other graphite Grass Vionaro components, which helps create uninterrupted, uniform drawer runs in banks of cabinets.
• The Cubist design with 90-degree angles sets a clear, rectilinear edge at the drawer front, aiding in aligning adjacent fronts so small reveals look intentional and consistent across a cabinet elevation.
• The slimline 13mm, or 1/2 inch, side width reduces overall visual bulk at the sides, allowing the drawer interior and face material to stand out while still giving a defined frame line.
• The bottom panel is cut to size without notching, so fabricators can work with straightforward rectangular bottoms instead of complex cutouts, which simplifies cutting layouts and speeds assembly.
• H89 inset front panels can be cut to length, allowing one stocked profile to serve multiple drawer widths, which reduces leftover offcuts and helps standardize inventory for repeat projects.

Inset Front Panel Installation And Setup

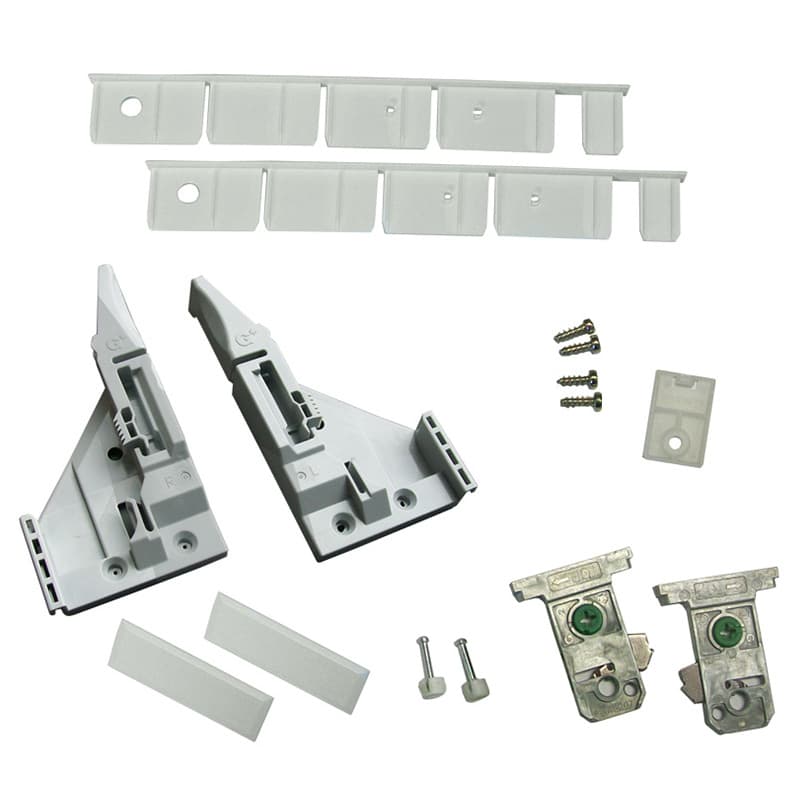

One side of the H89 inset front panel is pre-drilled, giving installers a precise reference side for fastening to the drawer assembly and locating the panel in relation to the bottom panel. A drilling template is provided for the other side, so the matching set of holes can be laid out consistently, resulting in mirrored fastening points that keep the panel square under load. Because the bottom panel is designed to be cut to size without notching, fabricators can size the bottom to the opening, then relate their drilling to straight edges, reducing layout complexity. Assembly instructions for the accessory set are supplied with each panel, guiding the sequence so that the drilling pattern, cut bottom, and fastening steps align with the Grass Vionaro system design.

Applying The Grass Vionaro Front Panel In Work

Where This H89 Front Panel Profile Fits Best

This H89 inset front panel belongs to the Grass Vionaro drawer construction system, so it is suited to drawer projects built around that platform where a graphite color scheme is specified. The color-coordinated aluminum profile in graphite matches other graphite-toned drawer components, helping casework shops produce cohesive drawer interiors that still present a metal edge. The nominal 45-11/16 inch panel length gives fabricators a starting size suitable for wider cabinet drawer applications before cutting to width. Because the bottom panel is cut to size without notching, the system works well in production settings where rectangular bottoms are preferred for speed, yet a refined inset-front aesthetic is required at the finished drawer. The Cubist design with 90-degree angles also aligns with straight-edged cabinet faces common in modern kitchens, baths, and commercial millwork.

Details That Support Accurate, Repeatable Drawer Results

The pre-drilled side on the H89 inset front panel serves as a fixed datum, so shops can base their jigs and stops off that side and repeat the same setup across multiple drawers. The supplied drilling template for the other side transfers the factory pattern, which helps keep both sides synchronized and reduces the chance of twist when the panel is fastened to the drawer components. The slimline 13mm, or 1/2 inch, side width keeps the edge material thin, so minor variances in cabinet openings translate into subtle visual shifts rather than heavy lines that draw attention. With the bottom panel cut to size without notching, the installer can align the bottom directly into the profile, which simplifies maintaining right angles between bottom and sides. As part of the Grass Vionaro drawer system, the F136120538507 panel connects visually and structurally to that hardware family, supporting predictable alignment from one project to the next.

Common Questions About The H89 Front Panel

Choosing This Front Panel For Your Drawers

The Grass America Vionaro H89 drawer inset front panel in graphite combines a color-coordinated aluminum profile, Cubist 90-degree design, and a 13mm slimline side to support modern, squared drawer fronts. With one side pre-drilled, a drilling template for the other side, and a bottom panel that is cut to size without notching, the system aligns with efficient shop workflows. For projects built around the Grass Vionaro drawer construction system, this F136120538507 front panel offers a defined way to execute inset drawer fronts with consistent geometry from drawer to drawer.
