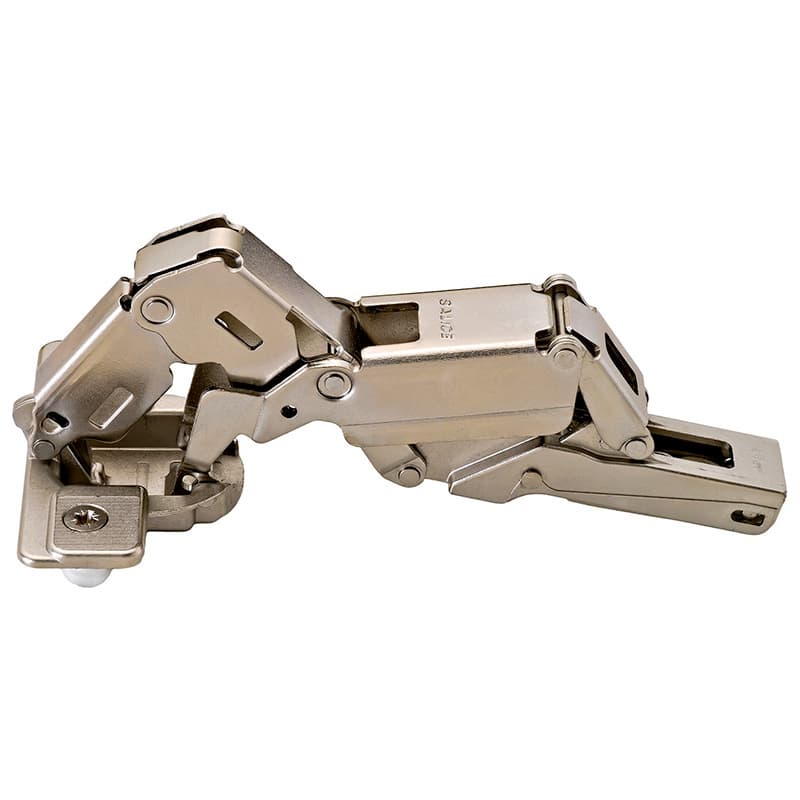

Salice 200 Series Self-Close Hinge For Cabinets

Salice 200 Series self-close hinge gives a concealed hinge option for cabinet doors where a 155 degree opening angle is needed, so doors can swing wide for better interior access. This concealed cabinet hinge belongs to the Salice Series 200 self-closing family, which is developed for projects that require concealed hinges on residential and commercial cabinets, so one hinge platform can serve mixed-use jobs. As a half overlay face-frame and frameless hinge, it is designed for both face-frame and frameless cabinet construction, so a single part number can follow different box styles in the same run. The hinge has a cup depth of 8.5 mm, which lets it work with most cabinet door profiles that can accept that bore depth. The self-closing function pulls the door shut at the end of swing, which helps doors return to the closed position after use.

Key Salice C2PKG99 Details For Cabinet Projects

• This Salice concealed cabinet hinge is part of the Series 200 self-closing line, so it fits into an integrated hinge system for projects that standardize on that series across multiple cabinet types.
• The 155 degree opening design lets the cabinet door open wide, so users have easier access to cabinet interiors where greater door swing is needed for loading or visibility.
• The hinge is described as a half overlay face-frame and frameless hinge, so it supports both face-frame boxes and frameless cabinets when paired with appropriate Salice mounting plates.
• An 8.5 mm hinge cup depth is specified, so door boring operations can be set to that depth to keep production consistent with the hinge cup geometry.
• A hinge cup edge drilling distance of 3 mm to 9 mm is specified, so boring jigs and CNC programs can be set within that range to match the intended overlay and edge reveal.
• The manufacturer part number C2PKG99 identifies this exact 155 degree thick door hinge, so purchasing and production teams can call out and repeat the same hinge across jobs.

Mounting And Boring Details For Accurate Fit

This 155 degree thick door hinge is described as screw-on, so the hinge attaches to the cabinet and door using screws for mechanical fastening during installation. The hinge cup depth of 8.5 mm defines the bore depth in the door, so drill bits, stops, and CNC settings can be matched to that value to seat the cup properly. The cup edge drilling distance of 3 mm to 9 mm defines how far the 35 mm style cup bore is set from the door edge, so overlay and door reveal can be tuned within that band. Being a half overlay face-frame and frameless hinge ties its fit to Salice mounting plates, so plate choice and position govern the final door alignment on the cabinet.

Using This 155 Degree Hinge In Cabinet Work

Where This Salice 200 Series Hinge Fits Best

This Salice 200 Series self-close hinge is designed for residential and commercial cabinets, so it can be applied across kitchen, bath, office, or storage casework that calls for a concealed hinge. The half overlay face-frame and frameless description means it is intended for cabinets built either with a front face frame or as frameless boxes, so casework shops using mixed construction styles can still use the same hinge series. The 155 degree opening angle makes this hinge suited to cabinets where wider access is required, so thicker or wider doors can open further relative to standard hinges. Its role as a concealed cabinet hinge means the hardware is hidden when the door is closed, so the visible cabinet face shows only the door and frame surfaces.

Why These Self-Closing Details Support Consistent Results

The Series 200 self-closing design defines how the Salice 200 Series self-close hinge pulls the door shut at the end of its travel, so doors return to a closed position without relying solely on catches. The specified 8.5 mm cup depth means boring operations can be standardized, so each door seats the hinge cup at the same depth for consistent alignment. The 3 mm to 9 mm hinge cup edge drilling distance gives a defined range for setting the bore from the edge, so overlay targets can be met within that band across multiple doors. Its identity as a half overlay face-frame and frameless hinge ties directly to how it works with Salice mounting plates, so installers can choose plate configurations that support the required mounting geometry. The description as a 155 degree thick door hinge signals that it is intended for applications where that opening angle is part of the cabinet design, so designers can plan clearances around that movement.

Common Questions About Salice C2PKG99 Hinges

Choose This Hinge For 155 Degree Cabinet Doors

The Salice 200 Series self-close hinge with 155 degree opening offers a concealed cabinet hinge solution for residential and commercial cabinets that need wider door swing. With an 8.5 mm cup depth and 3 mm to 9 mm hinge cup edge drilling distance, the hinge provides defined boring values that support repeatable door machining. Its half overlay face-frame and frameless design lets this Salice C2PKG99 hinge serve different cabinet box styles, so one hinge type can support varied casework built around the same Series 200 system.
