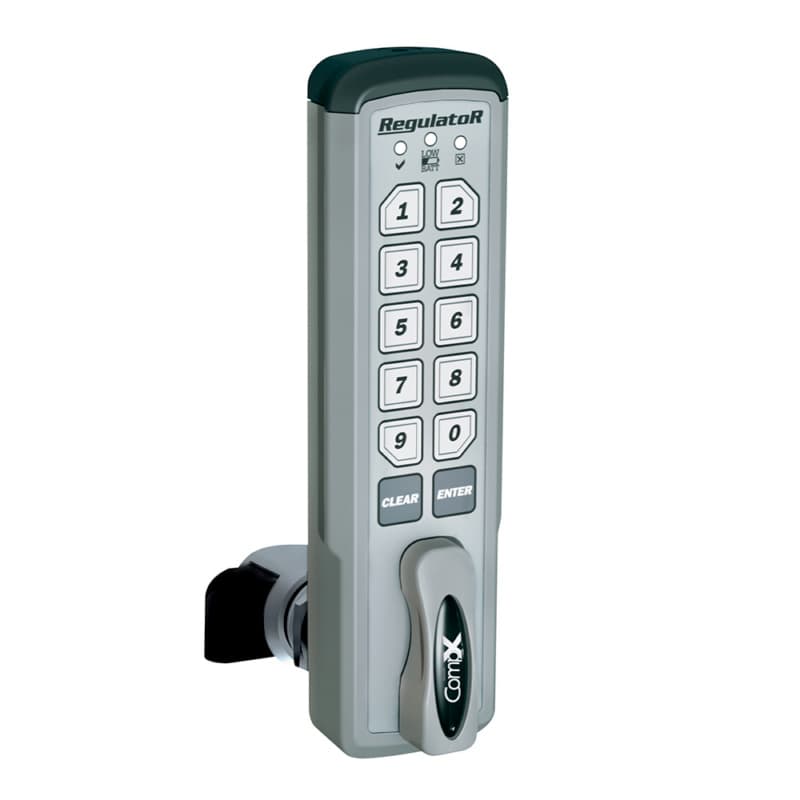

CompX RegulatoR electronic push button cabinet lock gives keyless control for cabinet doors, drawers, lockers and similar enclosures, reducing key management while still securing stored items. The CompX National design uses an electronic push button interface so users enter codes instead of using mechanical keys, which streamlines access control on busy jobsites or in shared workspaces. A 1-3/16 inch cylinder length lets the lock engage through thicker cabinet materials up to common construction standards, supporting a wider range of casework layouts. The vertical mount layout with the knob at the bottom places the keypad and knob in a consistent orientation, which helps users quickly locate and operate the lock on doors or vertical drawer faces. A satin nickel finish matches other contemporary hardware, allowing this lock to blend into visible cabinetry without calling attention to the hardware.
The vertical mount configuration with the knob at the bottom positions the CompX RegulatoR for use on cabinet doors and vertical drawer fronts, aligning the keypad and knob in a straight up-and-down arrangement that suits tall faces and locker doors. A maximum material thickness specification of 7/8 inch defines how thick the door or drawer panel can be while still allowing the 1-3/16 inch cylinder length to reach through and secure properly, guiding material selection and construction for new casework. The 3/4 inch diameter mounting hole requirement standardizes the bore size, so installers can use common boring tools to prepare the opening and achieve proper registration between the cylinder, keypad, and face material.
This CompX National electronic push button cabinet lock is described for cabinet doors and drawers, lockers and other similar enclosures, so it suits storage points that benefit from keyless but repeatable access. The self-locking Slam CAM mechanism responds when the door or drawer is pushed closed, engaging the spring-loaded latch as the panel meets the frame, which fits applications where users regularly close doors quickly and need the lock to secure without extra steps. The vertical mount with knob at bottom keeps the keypad and knob in a predictable orientation on doors or tall drawer fronts, which helps in locker banks and cabinet runs where uniform layout matters for both appearance and user familiarity.
The self-locking version with Slam CAM affects workflow by removing the need to turn the knob back to lock, so after entering a valid code and opening, users simply push to close and the spring-loaded latching mechanism handles the securement. Support for 20 codes per lock means the same REG-S-V-3 body can hold multiple user or group codes, which supports changes in user assignments without changing the hardware. A battery life rating of 75,000 cycles on AAA batteries provides long service between battery changes, which is important in busy environments where frequent openings occur. The AAA battery compartment is accessible from the outside of the cabinet, letting maintenance reach the power source from the front, which avoids disassembling casework to service batteries. A low battery indicator gives early notice that the lock is approaching its service window, allowing maintenance planning before power drops. The satin nickel finish contributes to a consistent visual presentation with other satin nickel hardware in the installation, helping this electronic lock integrate with surrounding pulls and hinges for a cohesive run of cabinetry.
The REG-S-V-3 is a CompX RegulatoR electronic push button cabinet lock, so it uses a keypad and codes instead of mechanical keys, which supports keyless access on cabinet doors, drawers, and lockers.
The CompX RegulatoR self-locking version uses Slam CAM, a spring-loaded latching mechanism, so when the user pushes the door or drawer closed, the latch engages without turning the knob back to a locked position.
This CompX National electronic push button cabinet lock is specified for a maximum material thickness of 7/8 inch, which defines the door or drawer thickness range the 1-3/16 inch cylinder length can secure correctly.
The CompX RegulatoR REG-S-V-3 supports 20 codes per lock, enabling multiple user or group access codes on a single lock body to manage different people using the same cabinet or locker.
The REG-S-V-3 electronic cabinet lock uses a 3/4 inch diameter mounting hole, guiding drilling setup so the cylinder and keypad assembly fit the cabinet or locker panel correctly.
This CompX National lock uses AAA batteries, and the battery compartment is accessible from the outside of the cabinet, which allows battery changes from the front while a low battery indicator signals service timing.
The CompX RegulatoR electronic push button cabinet lock with self-locking Slam CAM and vertical mount layout offers coded access for cabinet doors, drawers, lockers and similar enclosures, supporting projects that need repeatable, keyless control. Its 1-3/16 inch cylinder length, 7/8 inch maximum material thickness, and 3/4 inch mounting hole specification define clear boring and construction parameters for new or retrofit work. The REG-S-V-3 model adds 20 codes per lock, long-life AAA battery power with 75,000 cycles, and an externally accessible battery compartment, aligning with maintenance routines in commercial or shop environments. Select this satin nickel CompX National electronic push button cabinet lock when key management reduction, self-locking Slam CAM performance, and defined mounting requirements are priorities for your installation.
Sold In: 1 Each
