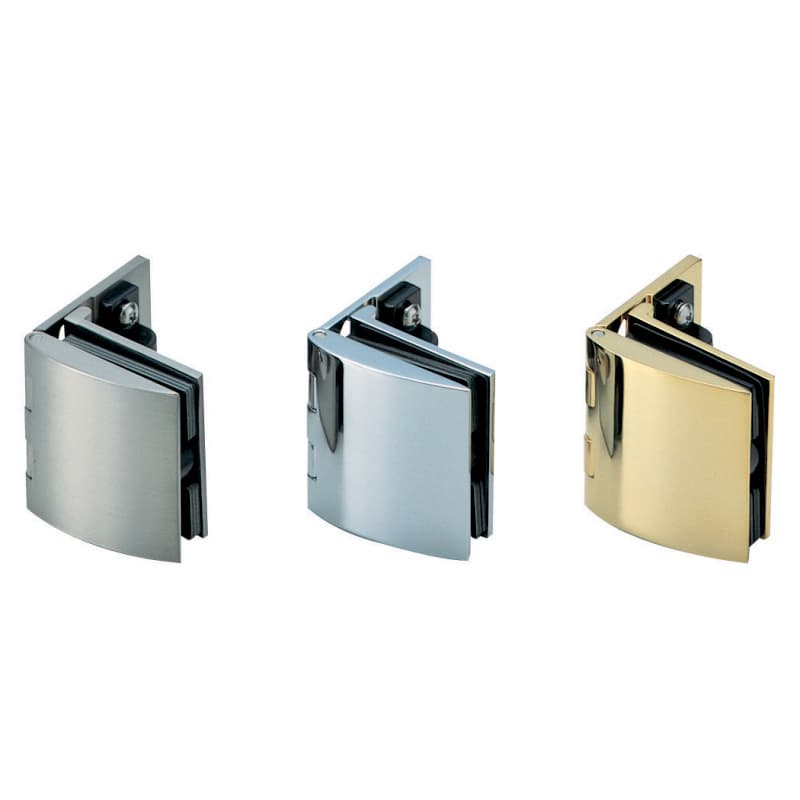

Sugatsune inset glass door hinge is a free swinging hinge designed for inset use, so it lets a glass door sit neatly within the frame while allowing smooth opening and closing. The hinge is specified as suitable for showcases, which aligns it with glass display and cabinet work where a clean, precise fit is important. A built-in catch function in the hinge helps the door stay in position at the closed point, supporting tidy presentation in a showcase setting. The screw-on chrome design mounts directly with screws, giving installers a familiar fastening method that works well with cabinet and fixture construction. Because this hinge is classified under glass door hinges, it serves as a dedicated solution for glass door projects rather than being adapted from a general hinge style.
This screw-on chrome hinge fastens using standard screw-mount methods, giving installers direct control over positioning on the frame structure. Vertical adjustment of plus or minus 1.0 mm built into the mounting position enables slight up-and-down correction after the hinge is secured, which helps dial in even top and bottom margins on the glass door. Horizontal adjustment of plus or minus 1.2 mm adds side-to-side fine-tuning, which supports accurate centering of the glass door within the opening. Together, these adjustments let installers correct minor drilling or layout variation while keeping the glass door square to the showcase frame.
The GH-450/CR hinge is described as for inset use and suitable for showcases, which positions it squarely in glass display and cabinet applications. In these projects the door edge sits inside the frame opening, and this hinge supports that layout with an inset configuration matched to glass. The hinge is specified as free swinging, so the door moves through its arc without a self-closing mechanism, which suits displays where the user controls the open and closed positions. Applicable glass door size per pair is given as width 600 mm, or 23-5/8 inches, and height 1,200 mm, or 47-1/4 inches, supporting a typical tall showcase door size. The applicable door weight per pair is 15 kg, or 33 lb, so one pair is suited to glass doors within that load range on a display case or cabinet.
The GH-450/CR hinge provides vertical mounting position adjustment of plus or minus 1.0 mm and horizontal adjustment of plus or minus 1.2 mm, allowing small corrections in both directions after mounting. In glass showcase work, these fine adjustments are valuable because glass cannot be trimmed on site in the same way as wood, so the hinge must handle minor layout variation. The product description notes a spacer system to accommodate different glass thicknesses from 5 to 8 mm, covering 3/16 inch, 1/4 inch, and 5/16 inch glass. For 3/16 inch glass, the description specifies using 3 spacers; for 1/4 inch glass, it specifies using 2 spacers; and for 5/16 inch glass, it states that a spacer is not required. This thickness-matching system allows the same hinge model to grip different glass sizes while keeping the door positioned correctly relative to the frame. A catch function is part of the hinge, supporting a defined closed position that helps keep the glass door resting where intended on a showcase.
The GH-450/CR hinge is a glass door hinge for inset use on showcases, so it is intended for glass doors set inside a display or cabinet frame.
The GH-450/CR hinge offers vertical adjustment of plus or minus 1.0 mm and horizontal adjustment of plus or minus 1.2 mm, helping fine-tune glass door alignment after mounting.
The GH-450/CR hinge spacer system accommodates glass thicknesses from 5 to 8 mm, covering 3/16 inch, 1/4 inch, and 5/16 inch glass commonly used in showcases.
One pair of GH-450/CR hinges is specified for glass doors up to 600 mm wide, 1,200 mm high, and 15 kg in weight, fitting typical tall showcase doors.
The GH-450/CR hinge is free swinging, so the glass door moves without self-closing action, giving the user direct control over open and closed positions on a showcase.
The GH-450/CR is a chrome hinge, providing a bright metal finish that coordinates with many showcase frames and fittings in display installations.
The GH-450/CR free swinging inset glass door hinge from Sugatsune America combines screw-on mounting, chrome finish, and showcase suitability, so it fits well into glass display projects using 5 to 8 mm glass. With specified door size and weight capacity, plus vertical and horizontal adjustment ranges, it supports practical layout and alignment work on inset glass doors. The spacer-based glass thickness accommodation and integrated catch give installers a defined method for setting up the hinge with different glass sizes while maintaining a controlled closed position. For showcase and cabinet projects built around inset glass doors, this hinge provides the stated capabilities in a focused glass door hinge design.
