This is a complete Blum LEGRABOX drawer system at F height, 18 inch nominal length, finished in Stainless Steel — an engineered platform designed for the deepest, heaviest-use drawers in the cabinet, delivering full extension and BLUMOTION soft-close in one integrated unit.
The F height designation — 241mm, or 9-1/2 inches of side profile — exists for the drawers that need to carry the most. Think a base-cabinet pot-and-pan drawer loaded with cast iron, a deep pantry pull-out stacked with canned goods, or a utility drawer that doubles as a produce bin. At 18 inches of nominal length and a 125 lb rating, this system handles the kind of sustained loading that exposes weakness in lighter-duty platforms. Full extension means no reach-in guessing: the drawer slides all the way out to the face, so the back corner is as usable as the front. For cabinet shops building production kitchens or heavy-use commercial casework, the F height is the right tool for the row of drawers at the bottom of the tall cabinet stack.
The Stainless Steel finish is more than a visual choice. In kitchens where steam, grease, and moisture are routine — commercial prep areas, island pull-outs near the sink, wine storage cabinets — the hard surface of the Stainless Steel LEGRABOX profile holds up without the risk of surface degradation that softer matte coatings can show over time. It also pairs naturally with stainless appliances and hardware specifications where a polished metal interior reads as intentional rather than incidental. If the design calls for Orion Gray Matte or Silk White Matte interiors, those are separate variants in this family; the Stainless Steel finish stands on its own as a distinct specification.
Cabinet shops building production kitchens will find the F height LEGRABOX in Stainless Steel a straightforward fit for the pot drawer, the recycling pull-out, and any other high-load, high-cycle position in the cabinet run. Kitchen designers specifying handleless fronts — especially on island cabinets with push-to-open requirements — should note that LEGRABOX supports Blum's TIP-ON and TIP-ON BLUMOTION systems, though this SKU is the drawer platform itself, not the opening mechanism. For homeowners completing a custom renovation, this is the same system supplied to professional cabinet shops: a production-grade, BLUMOTION-damped drawer that will run the same way on the thousandth cycle as it does on the first.

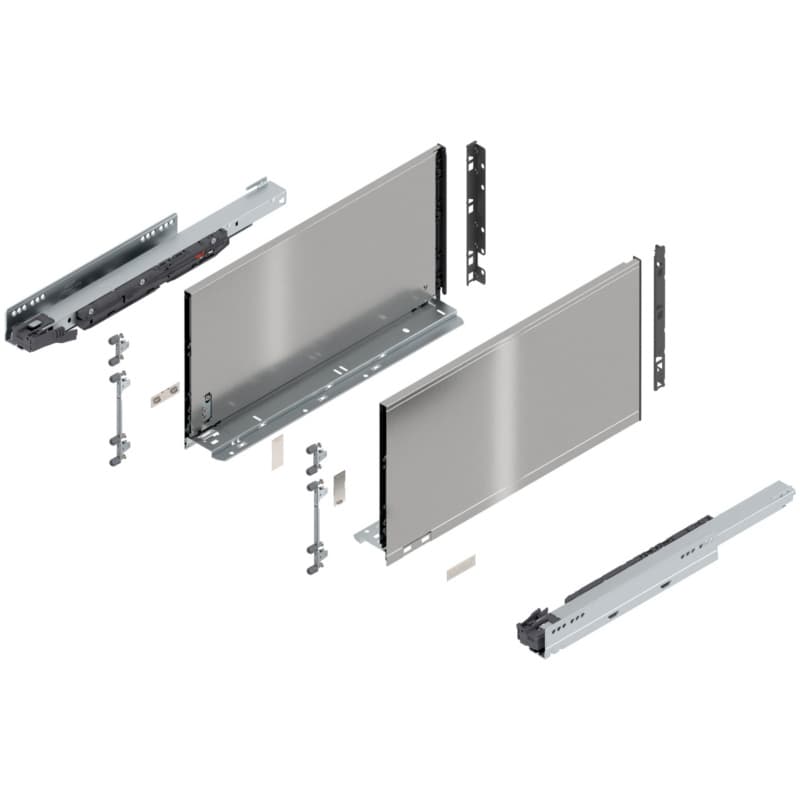

The system includes the steel side profiles, integrated runners, and front fixing brackets. You supply the drawer front, bottom panel, and back panel, cut to Blum's published dimensions for the F height and 450mm nominal length.
The 125 lb rating is per the product attributes for this system. Standard LEGRABOX series capacity is 125 lb static; use that as your design load and stay within it for daily loading.
LEGRABOX is engineered for frameless (32mm grid) installation. Face-frame applications require Blum's face-frame adapter brackets, which are sold separately and series-specific.
Yes. AMBIA-LINE is Blum's interior organization line developed for LEGRABOX drawers. F height accepts AMBIA-LINE frames, dividers, and inserts sized to the 450mm nominal length.
LEGRABOX uses steel side profiles, not wood drawer sides — the system replaces the drawer box walls entirely. The bottom panel and back are cut to Blum's published formula for this height and length.
LEGRABOX is compatible with Blum's TIP-ON and TIP-ON BLUMOTION mechanical opening systems, sold separately. TIP-ON BLUMOTION combines push-to-open ejection with damped soft-close closing in one integrated unit; plain TIP-ON does not include soft-close.
The LEGRABOX F height in Stainless Steel pairs the deepest standard profile in the line with a finish built for the demands of a working kitchen — full extension, BLUMOTION damping, and 125 lb capacity in an engineered system that installs the same way every time.
Sold In: 1 Set
